John Deere 5075 E 4WD Trem III

This model has been discontinued
Brand John Deere Tractors
Series E Series Tractors
No. Of Cylinders 3
HP Category 75 HP
Gear Box Collarshift / Top Shaft Synchromesh (TSS)
Brakes Self Adjusting, Self Equalizing, Hydraulically Actuated Oil Immersed Disc Brake


Key Specifications Of John Deere 5075 E 4WD Trem III

Tractor HP
Tractor HP
75 HP
Wheel Drive
Wheel Drive
4WD
Clutch
Clutch
Dual
Gear Box
Gear Box
Collarshift / Top Shaft Synchromesh (TSS)
Steering
Steering
Power Steering
Lifting Capacity
Lifting Capacity
2000

About John Deere 5075 E 4WD Trem III

The last noted John Deere 5075e price in India justifies its superior quality and advanced technology. The John Deere 5075E HP is 75. Moreover, it’s a robust tractor considered suitable for commercial farming.

John Deere discontinued this tractor model and launched its upgraded variant, the John Deere 5075 Gear Pro 4WD Trem IV, with a High-Pressure Common Rail (HPCR) engine and more gear speeds.

John Deere 5075 E 4WD Trem III: At a Glance

Engine Performance

75 HP

Gearbox

Collarshift / Top Shaft Synchromesh (TSS) gearbox

Transmission

Dual Clutch, 9 Forward and 3 Reverse gears

PTO

540@2376 ERPM and 540E@1705 ERPM with RPTO (optional)

Implement Compatibility

Laser Land Leveler, Hydraulic Reversible MB Plough, Happy Seeder, and Fertilizer Spreader

Lifting Capacity

2000 kg

Best For

Fertilizer Application, Land Leveling, Sowing, Cultivation

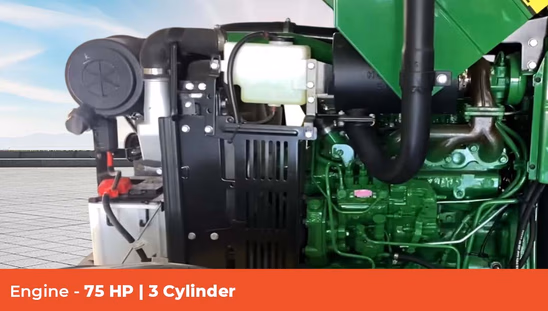

John Deere 5075 E 4WD Trem III Engine

This John Deere tractor is equipped with a 3-cylinder Turbocharged engine that generates 75 HP at 2400 ERPM. This ensures exceptional power delivery during heavy-duty agricultural work.

John Deere 5075 E 4WD Trem III Transmission

This John Deere 4WD tractor has a dual-clutch and Collarshift/Top Shaft Synchromesh (TSS) gearbox for easy gear shifting. It also features 9 forward gears and 3 reverse gears, along with a side-shift gear lever. This allows for easy field operations and provides greater operator comfort. Moreover, this tractor features 28.3 kmph of max forward speed.

John Deere 5075 E 4WD Trem III Brakes & Steering

John Deere 5075 E 4WD Trem III is equipped with self-adjusting and equalizing oil-immersed brakes and power steering with tilt adjustment. This makes maneuvering safer and much easier.

John Deere 5075 E 4WD Trem III PTO & Hydraulics

John Deere 5075 E 4WD Trem III has PTO speeds of 540 @ 2376 ERPM and 540E @ 1705 ERPM. This helps farmers choose between power and fuel efficiency based on their requirements. It also features an optional RPTO which helps clear off jams and clogs off the implements.

This John Deere tractor features ADDC / Electrical Quick Rise and Lower (EQRL) hydraulic controls. The lifting capacity of the John Deere 5075 E 4WD Trem III was 2000 kg. Hence, it can easily operate heavier implements and maintain uniform soil depth while working with them.

John Deere 5075 E 4WD Trem III Tyre Sizes

This 4WD tractor has a front tyre size of 12.4 X 24 / 11.2 X 24 and a rear tyre size of 18.4 X 30. It provides improved stability while working on rough terrains.

John Deere 5075 E 4WD Trem III Weight & Dimensions

John Deere 5075 E 4WD Trem III weighs 2640 kg. It has a 2050 mm wheelbase and 460 mm of ground clearance. Its turning radius is 3.6 m.

Who Should consider John Deere 5075 E 4WD Trem III?

  • This tractor is suitable for farmers with large scale commercial farms.
  • This who want a tractor for wetland operations can consider this option.
  • John Deere 5075 E 4WD Trem III is ideal for those who want a tractor with multi-crop suitability.

What is the John Deere 5075 E 4WD Trem III Price in India?

The last recorded John Deere 5075E 4x4 price in India justifies its features and performance.

What are the Alternatives of the John Deere 5075 E 4WD Trem III on Tractorkarvan?

Since the John Deere 5075 E 4WD Trem III is discontinued, you can check out its alternatives on Tractorkarvan. The main alternative is its upgraded variant, John Deere 5075 Gear Pro 4WD Trem IV. With more gear speed options and higher lifting capacity, it can efficiently perform a wide range of farm tasks. You can also explore tractors of other brands in the similar HP category as a suitable alternative to this John Deere tractor. Not only this, but we are also the perfect platform for gaining a key understanding of used tractor loan process in India.

Read More

John Deere 5075 E 4WD Trem III Engine

No. Of Cylinders 3
HP Category 75 HP
Engine Type Direct Injection, Turbo Charged Engine
Engine Rated RPM 2400 RPM
Air Filter Dry Type, Dual Element
Cooling System Liquid Cooled
Fuel Type Diesel
Fuel Pump Type Inline

John Deere 5075 E 4WD Trem III Transmission

Clutch Dual
Gear Box Collarshift / Top Shaft Synchromesh (TSS)
Gear Speed 9 Forward + 3 Reverse

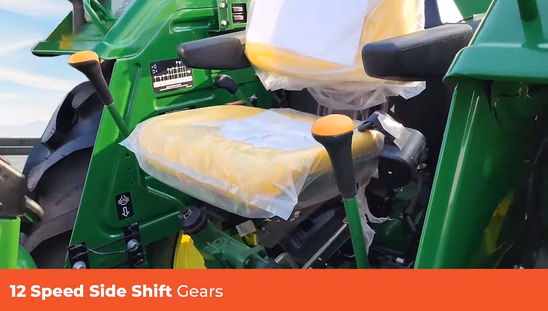

Gear Lever Position Side Shift
Forward Speed 2.2 to 28.3 km/h
Reverse Speed 3.7 to 24.2 km/h
Brakes Self Adjusting, Self Equalizing, Hydraulically Actuated Oil Immersed Disc Brake
Rear Axle Planetary Gear with Straight Axle

John Deere 5075 E 4WD Trem III Steering

Type Power Steering
Adjustment Tilt Steering

John Deere 5075 E 4WD Trem III Power Take Off

PTO Speed 540 RPM & 540E / RPTO (Optional)
RPM 540 @ 2376 ERPM /540E @ 1705 ERPM

John Deere 5075 E 4WD Trem III Fuel Capacity

Capacity 68 Litres

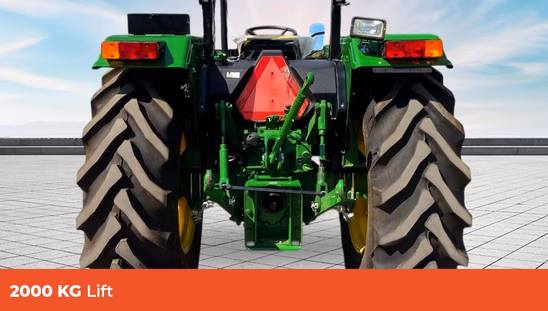

John Deere 5075 E 4WD Trem III Hydraulics

Lifting Capacity 2000 kg
3 Point Linkage CAT- II
Hydraulics Controls ADDC /Electrical Quick Rise and Lower (EQRL)
Remote / Auxillary Valve Optional

John Deere 5075 E 4WD Trem III Tyre Size

Wheel Drive 4WD

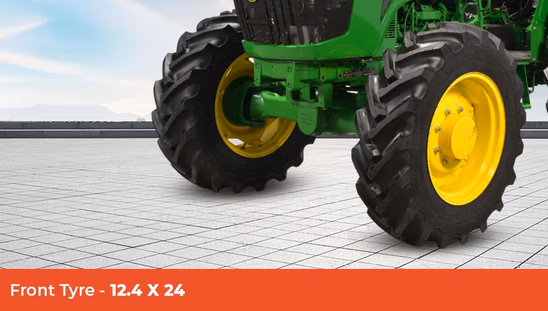

Front 11.2 X 24 / 12.4 X 24

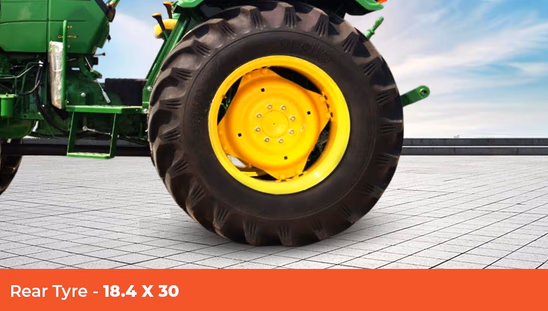

Rear 18.4 X 30

John Deere 5075 E 4WD Trem III Dimensions And Weight

Total Weight 2640 kg
Wheel Base 2050 mm
Overall Length 3625 mm
Overall Width 1880 mm
Ground Clearance 460 mm
Turning radius with brake 3.6 m

John Deere 5075 E 4WD Trem III Other Information

Warranty 5 Year/ 5000 Hours

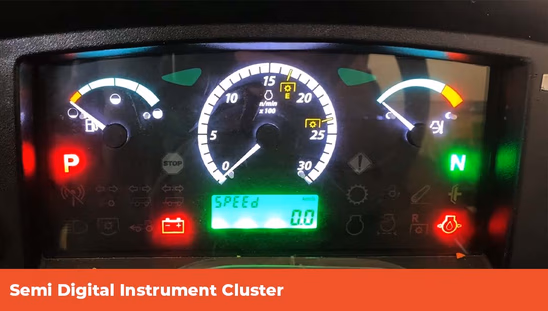

Instrument Cluster Digital, Multi Function Display
Driver Seat Deluxe Seat with Seat Belt
Accessories Ballast Weights, Canopy, Canopy Holder, Drawbar, Wagon Hitch, Tow Hook
Additional Features JD Link, Finger Guard, International Looks, Top Shaft Lubrication, Oil Jet for Piston Cooling, Mobile Charging Point with Holder

John Deere 5075 E 4WD Trem III Variants

You can find the variants of John Deere 5075 E 4WD Trem III available on Tractorkarvan with complete specification & prices. Total variant's available 1.

TractorKarvan Take On John Deere 5075 E 4WD Trem III

Good Things
  • Turbocharged engine with high torque reserve.
  • EQRL for quick lowering and lifting implements easily.
  • Smart brakes.
Could be Better
  • Could have offered a higher lifting capacity.
  • Could have offered MRPTO in this tractor.

John Deere 5075 E 4WD Trem III Verdict

John Deere 5075 E 4WD Trem III is among the top models of the John Deere E series. Its turbocharged engine can easily handle heavy loads. The best thing about the tractor is its high torque, which makes it ideal for challenging terrain and tasks such as ploughing, harrowing, and operating heavy implements. It even works efficiently with harvesters, straw reapers, and balers. However, this model has been discontinued by the brand. But if you are looking for a tractor for commercial use, consider the upgraded John Deere 5075 Gear Pro 4WD Trem IV variant, which offers several improvements, including an HPCR engine and more gear speeds.
