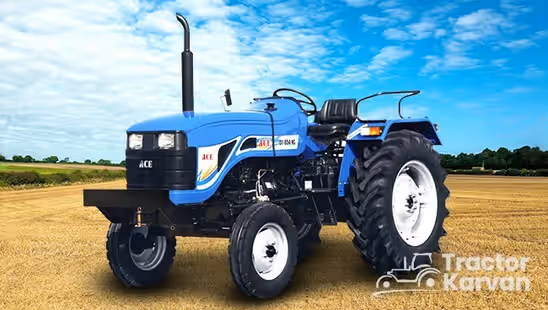

ACE DI 854 NG

Situated in Faridabad, Haryana, Action Construction Equipment Ltd., also known as ACE, is one of the leading companies in India known for building construction equipment. Besides their expertise in building super-efficient tractors, the company also manufactures crawler cranes, forklifts, lorry loaders, mobile cranes, and many more. The plants where the tractors are manufactured employ the latest technologies for top-notch build quality.

ACE DI 854 NG is their latest addition to the tractors under 40 HP category. It comes with a 32 HP diesel engine, which generates adequate power to perform different farming tasks efficiently. The ACE DI 854 NG price in India is affordable, making it a highly popular tractor in India. Let's discuss this ACE tractor in detail in the below sections.

ACE DI 854 NG Top Specifications

Engine & Performance

• ACE DI 854 NG HP is 32 horsepower. This power output is enough to carry out a diverse range of farm tasks. It includes operations like tilling, spraying, cultivating and pulling tractor implements.
• It comes with an A30 direct-injection diesel engine. The number of cylinders provided in this tractor is 3. Its engine-rated RPM is 1800. It is an ideal ERPM that ensures greater power output is generated while being fuel efficient.
• The engine capacity of this ACE model is 2858 cc. It signifies the volume of the engine, and the higher the volume more power will be produced.
• This ACE tractor can generate a maximum torque of 155 Nm. More torque allows the tractor to handle heavy loads, operations on challenging terrains and sudden increases in loads. Due to this torque, it can pull a variety of tractor implements like a Fertiliser Broadcaster and Mist Blower.
• A liquid-cooled cooling system is given to keep the engine's optimum temperature at the optimum level. This system ensures engine components remain protected from generated heat and work efficiently.
• It also features a dry-type air filter to keep the engine free from impurities. The air supplied to the engine for combustion is filtered to remove dust and other debris. It enhances the performance of the engine while also improving its lifespan.
• It has a bore-to-stroke ratio of 105/110 mm. This model produces more torque at lower RPM because it has a longer stroke.

Transmission

• ACE DI 854 NG has a constant mesh gearbox. It has gears that are constantly in mesh, which means they are always engaged with each other. Thus, the gear shifts are quicker and smoother.
• The type of clutch provided in this ACE model is a single clutch. It consists of only a single friction plate; thus, its simple construction demands lower maintenance.
• This ACE model comes with 8 forward and 2 reverse gears. They offer a suitable range of gear ratios to effectively handle different applications, loads and terrains. It goes on to improve the fuel efficiency of the tractor. This ACE model can achieve a forward speed of 2.29 to 27.78 km/h. Its reverse speed ranges from 2.86 to 11.31 km/h.

Hydraulics

• ACE DI 854 NG has a great lifting capacity of 1200 kg. It allows lifting heavy loads and operating heavier hydraulic implements, such as Tractor Trailers.
• The controls involved in hydraulics are ADDC or Automatic Depth & Draft Control. ADDC controls the depth and draft of the implements based on the feedback the sensors receive from the attached implements. It offers benefits like uniform seed placement, even tillage depth and field uniformity.

Weight & Dimensions

• ACE DI 854 NG has a total weight of 1920 kg. This weight facilitates better traction or grip on different kinds of working conditions. It ensures better stability during critical farm operations.
• The wheelbase length of this ACE model is 1960 mm. This wheelbase not only contributes to its stability but also makes it easier to navigate tight spaces.
• It has a length and width of 3650 mm and 1700 mm, respectively. Due to its narrower width, this model can make sharper turns, making it suitable for operations between rows in a field.
• It has a significant ground clearance of 395 mm. It allows this ACE model to operate in different field conditions without damage or getting stuck.
• This ACE model has a 3.1 m turning radius with brakes. A shorter turning radius means the tractor can easily manoeuvre in tight spaces, making it ideal for small fields.

Wheel Drive & Tyres

• This ACE model comes in a two-wheel drive variant. Thus, you will find operating or maintaining it easier than four-wheel drive models.
• The size of the front tyres and rear tyres are 6 X 16 and 12.4 X 28, respectively. These big tractor tyres offer improved grip even on challenging terrains, thus adding to the tractor's stability.

ACE DI 854 NG Key Benefits

• Brakes: There are two brakes options available in this model, namely, dry type and oil immersed. The oil-immersed disc brakes help dissipate the heat generated when the tractor brakes. Thus, they give better braking performance and have a longer life than a dry disc brake.
• Steering: This model comes with mechanical steering, providing a good handling experience. Also, it is simple in design and thus is easier to maintain than power steering.
• Fuel Capacity: It can hold up to 55 litres of fuel, making it easier for the farmers to work longer hours in the field without having to worry about refilling.
• Electrical: This ACE model is equipped with a 75 Ah 12 V battery and a 42 Amp 12 V alternator. This battery is suitable for powering different electrical systems and components effectively.
• Power Take-Off: ACE DI 854 NG has a PTO speed of 540 RPM. As this is the standard PTO speed, this model can be used with a variety of PTO-operated implements, such as Boom Sprayers and Rotavators.

ACE DI 854 NG Price in India 2023

Whenever we consider buying any farm vehicle, we check the price tag before looking into the features. However, you need not worry when buying the ACE DI 854 NG model. It is available in one of the most affordable ranges of tractors on the market. The ACE DI 854 NG price in India ranges between INR 5 lakhs* and INR 7 lakhs*. With all the advanced features equipped in the tractor, the price of the tractors under 7 lakhs category is quite pocket friendly.

Moreover, Tractorkarvan also offers a compare tractor tool which can be used to compare two tractor models of similar HP ranges—for example, ACE DI 350 Star and ACE DI 350 NG.
