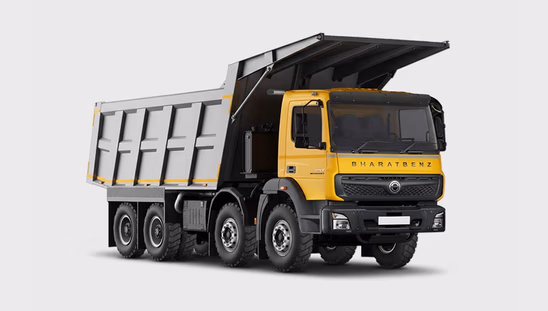

BharatBenz 2832CM Torqshift 4275 16 Cum
Key Specifications Of BharatBenz 2832CM Torqshift 4275 16 Cum
236 KW
28000 Kg
12
डीज़ल
OM926
4275 mm
BharatBenz 2832CM Torqshift 4275 16 Cum Specifications & Features
| सिलिंडर की संख्या | 6 Cylinder |
| Max Power | 236 KW |
| Capacity | 7200 CC |
| इंजन रेटेड आरपीएम | 2200 RPM |
| Emission Norms | OBD-2, BSVI |
| अधिकतम टॉर्क | 1250 Nm |
| Mileage | 6.5 Kmpl |
| Gradeability | 82.9 % |
| क्लच | Single Dry Plate - Organic |
| गियर बॉक्स | TORQSHIFT AMT G211 |
| गियर स्पीड | 12 Forward + 4 Reverse |
| Steering Type | 4 Spoke Steering Wheels with Hydraulic Power Assistance |
| Steering Adjustment | Tilt & Telescopic |
| PTO | Standard |
| कैपेसिटी | 280 Litres |
| DEF Tank Capacity | 43 Litres |
| कुल लंबाई | 8185 mm |
| कुल चौड़ाई | 2540 mm |
| Overall Height | 3835 mm |
| ग्राउंड क्लियरेंस | 349 mm |
| Turning Radius | 8.1 m |
| व्हील बेस | 4275 mm |
| GVW | 28000 Kg |
| Brakes Type | Pneumatic - Dual Line Drum Brakes with ABS & Hill Hold Assist |
| Front Suspension | 4 Leaf Parabolic Leaf spring |
| Rear Suspension | Tandem, Multi Leaf Bogie |
| ABS | Yes |
| Parking Brakes | Pneumatically operated hand control valve |
| Front Axle | Forged-Reverse Ellio |
| Rear Axle | MT36 (Hub Reduction) with inter axle and inter wheel differential lock |
| Battery | 24 V, 120 Ah |
