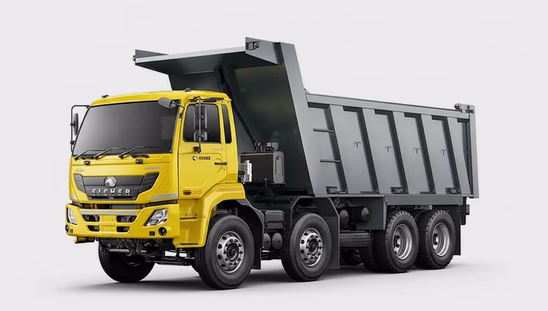

आयशर Pro 8035XM 5285 16 Cum Rock Specification
Key Specifications Of आयशर Pro 8035XM 5285 16 Cum Rock
257 KW
35000 Kg
10
डीज़ल
VEDX8
5285 mm
आयशर Pro 8035XM 5285 16 Cum Rock Specifications & Features
| Max Power | 257 KW |
| इंजन रेटेड आरपीएम | 2200 RPM |
| Emission Norms | BSVI |
| अधिकतम टॉर्क | 1350 Nm |
| Mileage | 2.5 - 3.5 Kmpl |
| Gradeability | 75 % |
| क्लच | Pull Type, Single Dry Plate |
| गियर बॉक्स | ET 140S9 |
| गियर स्पीड | 1 C + 8 F + 1 R |
| Steering Type | Power Steering |
| Steering Adjustment | Tilt & Telescopic |
| कैपेसिटी | 315 Litres |
| DEF Tank Capacity | 50 Litres |
| Tyre Type | Mining Lug |
| Rear Tyre | 8.5 X 20, 12 X 20 |
| Front Tyre | 8.5 X 20, 12 X 20 |
| ग्राउंड क्लियरेंस | 308 mm |
| Turning Radius | 10.55 m |
| व्हील बेस | 5285 mm |
| GVW | 35000 Kg |
| Brakes Type | S-Cam Dual line with ABS |
| Front Suspension | Parabolic |
| Rear Suspension | Bogie |
| ABS | Yes |
| Parking Brakes | Pneumatically operated hand control valve |
| Front Axle | Heavy-duty forged I-beam Reverse Elliot type axle with stabilizer bar |
| Rear Axle | Hub reduction tandem axle with two stage differential lock |
| Air Conditioning | Yes |
| Cabin Type | Sleeper Cab |
| Battery | 24 V, 120 Ah |
| Warranty | 2 Years / 6000 hrs |
