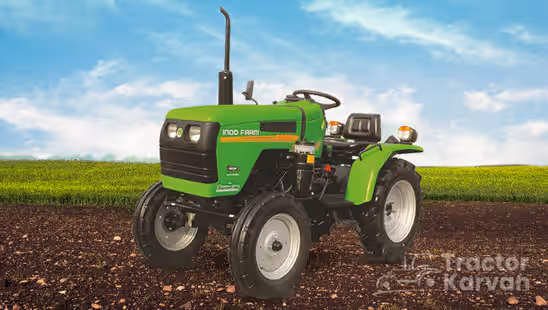

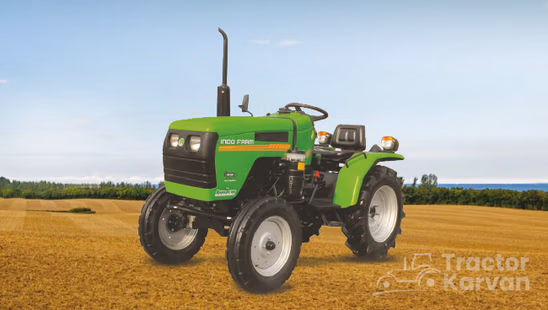

Indo Farm 1020 DI

Indo Farm is a famous tractor brand in the Indian market, offering popular utility tractors and mini tractors in India. One of the latest additions to the Indo Farm mini tractor category is Indo Farm 1020 DI. It is part of the Indo Farm 1 series, which consists of all the famous mini tractor models of Indo Farm. The tractor features 20 HP engine power and a four-stroke direct injection diesel engine, making it one of the best models in the tractors under 20 HP category. This tractor is specially designed for small farmlands making it one of the favourite models of small farmers in India. Moreover, the Indo Farm 1020 price in India is also reasonable, which is another reason for its popularity. Let's deeply analyse this tractor's features, benefits, price, warranty, and more in the upcoming sections.

Indo Farm 1020 DI Key Specifications

Engine and Performance

• Indo Farm 1020 HP is 20 horsepower, which is an ideal HP range for small agricultural lands. It is equipped with a four-stroke direct-injection diesel engine, which allows for a powerful performance of the tractor in this segment.
• Its engine-rated RPM is 2300, and it comes with 1 cylinder, making it a fuel-efficient tractor. The RPM generated is significantly higher for a mini tractor.
• Indo Farm 1020 DI engine CC is 895, which can generate a maximum torque speed of 1200 to 1400 RPM, thus leading to a high-power output.
• The tractor features an oil bath-type air filter to prevent the engine from impurities and ensure the engine's smooth functioning.
• The liquid-cooled cooling system helps prevent overheating of the engine in the long run and helps in improving the lifespan.
• The tractor has a bore/stroke ratio of 100/114 mm, which indicates a large engine displacement offering high torque using less fuel.

Transmission

• This tractor features a single dry-type clutch that provides smooth operations. This system allows control for the tractor and the attached implement simultaneously.
• The transmission system of Indo Farm 1020 DI includes a sliding mesh transmission, where the gears are fixed on the countershaft. This gearbox is simple and has less maintenance cost. But the gear changing is less smooth.
• It comes with 6 Forward + 2 Reverse gears, and the maximum forward speed of the tractor is 26 km/h, which results in more haulage operations in lesser time. It also allows the tractor to select the optimal speed according to the work.

Power Take-Off (PTO)

• Indo Farm 1020 DI PTO HP is 12.92 horsepower, clocked at 2300 engine RPM. This ensures that the tractor can handle PTO-driven implements for regular usage like Rotavators and Mist Blower.
• The PTO speed of the tractor is 540 RPM, clocked at 2100 engine RPM. Achieving 540 RPM PTO speed at only 2100 engine RPM indicates fuel efficiency.

Hydraulics

• Indo Farm 1020 DI has a lifting capacity of 500 kg. This is an ideal lifting capacity for a mini tractor, which can help in lifting relatively light-weight hydraulics-driven implements.
• It features ADDC-type hydraulic control with a 3-point linkage. This hydraulics system ensures automatic control of the implement depth and draft in the soil. The 3-point linkage increases the range of implement the model can operate without any issues.

Brakes and Steering

• Indo Farm 1020 tractor is equipped with oil-immersed multi-disc brakes that have a longer life and offer low maintenance.
• The tractor comes with mechanical steering, which is suitable for this HP range.

Weight & Dimensions

• Indo Farm 1020 DI has a total weight of 800 kg, which offers the model stability during any work.
• Its overall length and width are 2520 mm and 1050 mm, respectively.
• The tractor has a ground clearance of 210 mm, and it has a 2.2 m turning radius with brakes. These attributes ensure that the tractor can efficiently handle agricultural activities on small farms and is easy to manoeuvre in narrow spaces.

Indo Farm 1020 DI Additional Features

This Indo Farm tractor comes with many additional features, apart from the ones listed above, which are discussed below:

• Fuel Capacity: Indo Farm 1020 DI has a fuel tank capacity of 23 litres, which contains enough fuel to work in small farmlands.
• Wheel drive: The tractor is a two-wheel drive model which is suitable for dry regions and terrains.
• Tyres: The front tyres of this tractor measure 5.20 X 14, and the rear tyres measure 8.00 X 18.
• Electrical: This tractor's electrical system is powered by a 12 V, 65 Ah battery.

Indo Farm 1020 DI Price in India

The Indo Farm 1020 DI price in India ranges from INR 3 lakhs* to INR 5 lakhs*. It is one of the latest mini tractor models in India, equipped with the latest technology and modern features. So, it is one of the best buy options in the tractors under 5 lakhs category. This tractor can also be purchased at easy EMI on Tractorkarvan.

Moreover, the users may use compare tractors feature to compare the Indo Farm 1020 price and features with the other models in the similar HP range using the compare tractor feature on Tractorkarvan. These models include Indo Farm 1026, Indo Farm 1026 E, and many more.
