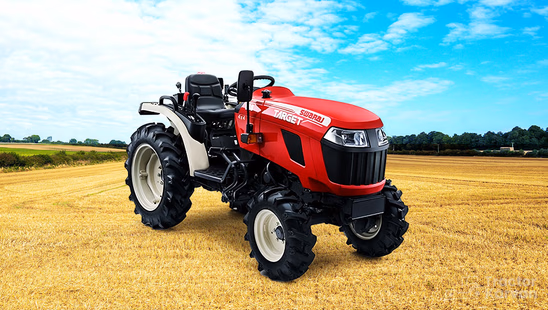

Swaraj Target 630

Swaraj has been the top brand in the country. The brand has won the hearts of millions of farmers by providing them with indomitable power to rule the terrains all over India. It has come up with its latest tractor model in the tractors under 30 HP category, which is Swaraj Target 630.

Swaraj Target 630 is introduced with the culmination of technology and path-breaking power. This new tractor is launched with the motive of revolutionising not just the mini tractor category but the entire farming industry in India. This Swaraj mini tractor is specially designed for spraying and inter-cultivation activities.

Let’s discuss this tractor in detail, such as Swaraj Target 630 price, top specifications, warranty, etc.

Swaraj Target 630 Top Specifications

Take a look below to learn the key features and top specifications of Swaraj Target 630:

Engine & Performance

• Swaraj Target 630 HP is 29 horsepower. It is the maximum power generated when the engine operates at 2800 RPM speed. It comes with 3 cylinders and has an engine capacity of 1331 cc. The engine capacity ensures maximum power is generated, whereas the number of cylinders ensures power and efficiency. This tractor has a perfect combination of cylinders, engine capacity, and power, providing maximum power with optimal fuel efficiency.
• The engine type provided in this tractor is the newest and technologically advanced direct injection diesel engine, which generates more power with less fuel consumption.
• This tractor can generate a maximum torque of 87 Nm. The torque power is used to pull implements attached to the hitch. With this torque, the tractor is ideal for pulling implements like Tractor Trailer, Water Tanker, and many others.
• The engine comes with a dry-type dual-element air filter. The dry-type air filter ensures that only clean air passes to the engine for the combustion process, and the dual-element provides a double-layer filter to remove the impurities from the air.
• The tractor has a liquid-cooled cooling system with a 20% larger radiator. As a result, the heat dissipates quickly, and the engine does not get overheated while working for long hours.

Transmission

• This Swaraj tractor comes with a double clutch option with an independent PTO lever. It consists of a single dry clutch option for the main transmission and an independent wet-type clutch for the PTO.
• The transmission of this tractor consists of a synchromesh gearbox, which provides car-type gear shifting and ensures smooth transmission.
• This tractor’s gear pattern includes 9 Forward + 3 Reverse gears. As a result, the tractor has 3 forward and 1 reverse speed and 3 driving modes to work on different types of terrains.
• It also features a bull gear reduction type of rear axle. It has the simplest design and offers high torque multiplication, making it suitable for handling heavy loads.

Power Take-Off (PTO)

• The Swaraj Target 630 PTO HP is 24 horsepower. It has a switch to operate the PTO. With this amount of PTO power, the tractor can run a range of tractor implements, such as Boom Sprayer, Mist Blower, Fertilizer Broadcaster, Puddler, and more.
• The tractor features a dual-speed PTO. The standard PTO speed is 540 RPM, whereas the optional PTO is 540E RPM. The economy PTO is used in those operations where less PTO power is required. As a result, the tractor consumes less fuel to generate 540 RPM in the economy mode.

Hydraulics

• The maximum lifting capacity of this tractor is 980 kg, which ensures easy lifting of heavy-duty implements.
• The 3-point hitch of this Swaraj tractor can easily pin Category I implements.
• The hydraulic control of this tractor is ADDC type, which ensures uniform depth control in draft implements, such as Cultivator and MB Plough.

Weight & Dimensions

• Swaraj Target 630 has a total weight of 975 kg. This weight is ideal for a mini tractor, ensuring better stability and grip on different terrains.
• This tractor has a wheelbase of 1555 mm, ensuring stability on uneven terrains.
• It also has a ground clearance of 290 mm, which ensures less damage to the crops during inter-cultivation operations.
• The turning radius provided in this tractor is 2.1 m, allowing the operator to turn the tractor in lesser space easily.

Swaraj Target 630 Benefits

Here, we have listed some benefits of purchasing this Swaraj tractor. There are:

• The tractor comes with an engine key stop to start and stop the engine with a key.
• The headlamps of the tractor are powerful and clear, giving day-like brightness during working at night.
• It has a fully sealed 4WD portal axle, ensuring better ground clearance and keeping the axle mud-free.
• The tractor has a stylish digital cluster, allowing the operator to read the information easily, even in low lights.
• It also features the latest spray-saver switch technology, which can save up to 10% on the costly spray.
• The hydraulic of the tractor has 22 LPM flow, ensuring the lifting and dropping of the implements quickly.
• The wet-type clutch technology provided in this tractor ensures continuous working of the PTO-operated implements even when the operator presses the clutch to change the gears.
• This tractor has the narrowest 3 feet overall width and adjustable track width for better movement during inter-cultivation activities.
• This tractor is best suited to be used in different crop farming, such as grapes farming, pomegranate farming, sugarcane farming, and cotton farming.

Swaraj Target 630 Additional Features

Apart from the top specifications, this Swaraj tractor has a range of additional features, which are discussed below:

• Brakes: The brakes provided in the Swaraj Target 630 are oil-immersed multi-disc brakes. These brakes are immersed in oil, offering a better braking experience and safety to the operators.
• Steering: The tractor comes with balanced power steering. It uses hydraulics to steer the tractor, which results in an effortless handling experience. This steering type decreases fatigue while making frequent turns in the row crop fields.
• Tyres: The front tyres of this tractor come in a size of 180/85D12, and the rear tyres are available in the size of 8.30 X 20 / 9.50 X 20. The optional size of the tractor tyres allows the farmers to choose the tyres according to their suitability.
• Fuel Capacity: The fuel tank capacity provided in this tractor is 27 litres. The size of the fuel tank is enough to work for long hours in the field in a single refuel.
• Seat Type: This tractor features a sliding seat that can also be adjusted according to the operator’s comfort.
