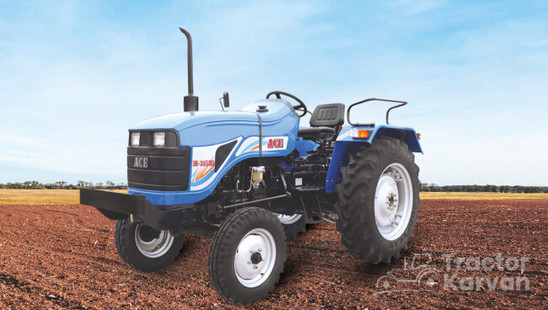

ACE DI 305 NG

ACE is a renowned domestic crane manufacturing company. Off late, it also started manufacturing tractors, and in no time, it became one of the top tractor brands in India. The ACE tractors produce both mini tractors and full-size tractors. And all these tractors are powerful and have unmatched utility at the best prices. They are ideal for multi-farm applications like ploughing, cultivating, haulage, etc.

The upcoming tractor from the company is DI 305 NG. This next-generation vehicle is a compact 25.7 HP tractor. It offers more than expected with its features like 23.8 PTO HP, a 2-cylinder powerful engine, high torque, 1200 kg lifting capacity, and a big rear tyre size of 12.4 X 28. Besides, it offers excellent power in the tractors under 30 HP range. It also features maximum backup toque, maximum torque, and minimum engine RPM.

Keep reading the sections given below to learn about this popular tractor and its specifications, features, benefits, and ACE DI 305 NG price.

ACE DI 305 NG Top Specifications

Engine & Performance

• The ACE DI 305 NG tractor is fitted with a 2-cylinder engine which offers a power output of 25.7 HP. It is the maximum power generated at a low RPM of 1800. The engine capacity is 2044 cc, which directly influences the power produced by the engine. The number of cylinders, engine RPM, and engine cc combined ensures a perfect balance of power and fuel efficiency.
• It comes with a direct injection naturally aspirated diesel engine. It is a low-maintenance engine especially recommended for farming operations in India.
• The maximum torque produced by the engine is 130 Nm. It influences the initial acceleration and pulling power of the tractor. A high pulling power helps in pulling a wide range of implements, such as Box Blade, Cultivator, MB Plough, and more.
• The liquid-coolant cooling system helps prevent the overheating of the engine and keeps it cool during long working hours.
• The dry air cleaner with a cleaning sensor is provided to allow clean air by filtering out the impurities for the combustion process.
• The bore-to-stroke ratio of this tractor is 105/118 mm. It shows the cylinder size and a high ratio means high power is generated for a particular task.

Transmission

• This ACE tractor comes with a single clutch option. Thus, when the driver presses the clutch to change the gears, the PTO of the tractor stops working with the deceleration of the tractor.
• The gearbox speed consists of 8 forward and 2 reverse gears. These gear speeds help to achieve a maximum forward speed of 27.78 km/h and a maximum reverse speed of 11.31 km/h.

Power Take-Off (PTO)

• The ACE DI 305 NG offers a PTO HP of 23.8, which is used to drive different implements, such as Mist Blower, Boom Sprayer, Rotavator, and more.
• The PTO speed of this tractor is 540 RPM. It is the standard PTO speed at which most of the PTO-operated implements run.

Hydraulics

• The ACE 305 NG features automatic depth and draft control with live hydraulics. It adjusts the depth and height of the implements above and under the soil, respectively. The process takes place automatically with the help of smart sensing points, ensuring the safety of the implements.
• The tractor has a maximum lifting capacity of 1200 kg, which ensures the lifting of medium-sized implements with ease.

Weight & Dimensions

• The overall weight of the ACE DI 305 NG tractor is 1780 kg. An ideal weight ensures better traction on different surfaces.
• It has a wheelbase of 1855 mm. A high wheelbase is necessary, which makes the tractor more stable on irregular agricultural lands.
• The overall length and width are 3550 mm and 1700 mm, respectively.
• It has a ground clearance of 395 mm. A high-ground clearance ensures the safety of the crops during inter-cultivation activities.
• The turning radius with brakes is 3.2 meters, and without brakes is 2.94 meters.

ACE DI 305 NG Additional Features

• Brakes: The ACE 305 NG features dry disc serviceable brakes for effective braking. These brakes have low maintenance and offer proper safety to the operators.
• Steering: It comes with single drop arm mechanical steering for changing the direction of the tractor. These brakes require more effort to turn the tractor but ensure stability on rugged farmlands.
• Electrical: It consists of a battery of 75 Ah – 12 V and an alternator of 12 V – 42 Amp, which provides electrical power to the various parts of the tractor.
• Fuel Tank Capacity: It has a fuel tank capacity of 55 litres, which ensures long working hours without refuelling.
• Wheel Drive: The ACE DI 305 NG is a 2-wheel-drive tractor. A 2WD tractor has low maintenance and is highly recommended for Indian agricultural conditions.
• Tyre Size: The front tyres measure 6.00 X 16, and the rear tyres measure 12.4 X 28. The tyre size is ideal as per the tractor’s size.

ACE DI 305 NG Price in India 2023

The HP of a tractor and its features determine the price. The ACE DI 305 NG is a 25.7 HP tractor; hence the ACE 305 NG tractor price 2023 falls under 5 lakhs rupees range. You can also purchase this tractor on EMI options at Tractorkarvan.

You can also compare the price of this tractor with similar HP range ACE tractors using the compare tractor feature such as ACE Veer 20.
