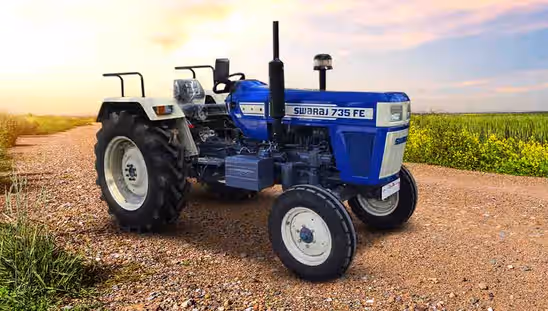

Swaraj 735 FE

EMI starts from ₹ 13,066/Month
Brand Swaraj Tractors
Series FE Series Tractors
No. Of Cylinder 3
HP Category 35 - 40 HP
PTO HP 33.7
Brakes Dry Disc Type Brakes / Oil Immersed Disc Brakes (Optional)

Key Specifications of Swaraj 735 FE

Tractor HP
Tractor HP
35 - 40 HP
Wheel Drive
Wheel Drive
2WD
Clutch
Clutch
Single / Dual
Steering
Steering
Mechanical Steering with Heavy Duty single drop arm / Power Steering
Lifting capacity
Lifting capacity
1000 kg

About Swaraj 735 FE

Swaraj 735 price in India ranges from INR 5.89 lakhs* to INR 6.26 lakhs*. The Swaraj 735 HP generates a power output of 35-40 horsepower. It has an engine capacity of 2734 cc.

For decades, Swaraj Tractors has been a reputed brand offering top-notch farming and agricultural equipment to the Indian farming community. And the legacy continues with the Swaraj 735 FE tractor. The 735 Swaraj tractor features an efficient, powerful three-cylinder, liquid-cooled diesel engine. Swaraj 735 FE lies in tractor under 40 HP category. Thus, it is ideal for agriculture equipment like threshers, rotavators and cultivators. Also, the economical Swaraj Tractor 735 price makes it an affordable option in the tractor under 7 lakh category.

Let us check out Swaraj 735 FE in detail, including Swaraj 735 FE E 39 HP price.

Swaraj 735 FE Top Specifications

Swaraj 735 tractor is one of the most popular models on Tractorkarvan, belonging to the Swaraj FE series. Some key features of the 735 Swaraj tractor are:

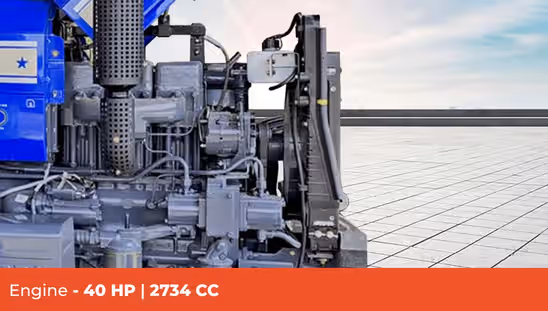

Engine

  • It features RV-3XM + 3A, four-stroke, three-cylinder, 2734 CC diesel engine. A 3-cylinder engine is more fuel efficient as it weighs less and has low frictional losses. Also, this model has a huge cylinder capacity. Thus, each stroke burns more fuel and produces increased engine power output.
  • Swaraj 735 HP range is 35 to 40 HP, which is generated by operating the engine at 1800 RPM. A higher horsepower tractor will be faster on and off the field as it produces a higher amount of power.
  • The bore to stroke ratio is 100 X 116 mm. A longer stroke means the cylinder has more space for air and fuel, producing more torque output.
  • The tractor has a three-stage oil bath air cleaner to provide clean air to the engine.
  • It has a liquid-cooled system to prevent engine overheating. The temperature is maintained at optimum levels as liquids cool the engine.

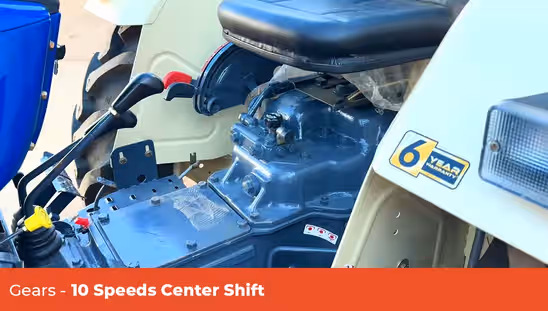

Transmission

  • This tractor features a single dry-disc friction plate clutch with an optional dual clutch system. A single clutch is less complex in design and function, and thus it demands low maintenance. On the other hand, dual clutch can cut off power to the rear wheel and PTO power separately. Thus, you can use an implement even if the tractor is not moving.
  • There is a 10-gear set-up inside the gearbox, out of which 8 are forward gears and 2 are reverse gears. Thus, it can attain a maximum forward speed of 27.80 km/h and a maximum reverse speed of 10.74 km/h.
  • The tractor has a centre shift gear lever position, which provides relatively less legroom space compared to side shift.

Power Take-Off

  • The PTO (power take-off) rating of the Swaraj 735 FE tractor is 33.7 HP. This high PTO power offers suitable power to run a range of heavy PTO implements, such as rotavators and threshers.
  • The PTO speed of the 735 Swaraj tractor is 1000 RPM / 540 RPM (Optional). It comes with a standard RPM of 540 and 1000 RPM at 1650 ERPM.

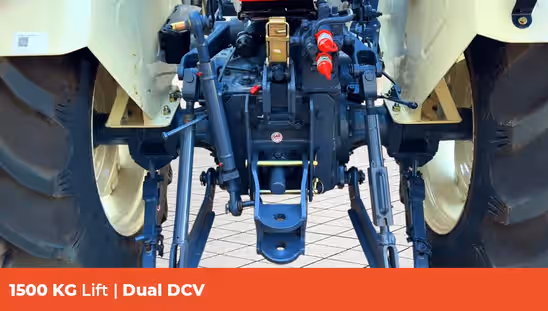

Hydraulics

  • Its live hydraulics has draft and position mixed control (three-point linkage) and automatic depth and draft control (ADDC). Position control helps in holding lower links at a desired height. Uniform depth is maintained via an automatic draft control. With the help of mix control, draft and position controls can be used simultaneously for optimal field output.
  • Swaraj 735 FE lifting capacity is 1000 kg. Thus, it can work with a range of heavy tractor implements like hydraulic reversible MB plough and tractor trailer.
  • It has Category I & II 3-point linkages, meaning Swaraj 735 FE has a wider selection of compatible implements.

Weight & Dimensions

  • Swaraj 735 weight is 1895 kg.
  • This tractor has a length of 3470 mm and a breadth of 1695 mm.
  • It comes with a wheelbase of 1950 mm, providing better stability.
  • It has a ground clearance of 395 mm. An ideal ground clearance allows Swaraj 735 FE to perform intercropping activities efficiently without damaging the crops.

Brakes & Steering

  • It features a standard dry disc-type braking system with an oil-immersed braking system available as an option. Disc brakes come with simplicity. As it lacks additional fluid or housing, these brakes are inexpensive and simple to fit. Also, their maintenance is easier as the entire transmission does not have to be removed to resolve any issue.
  • This tractor provides a standard mechanical steering system with a heavy-duty drop arm so that you can smoothly operate and manoeuvre it. It also comes with optional power steering that offers better safety and easier control over the vehicle.

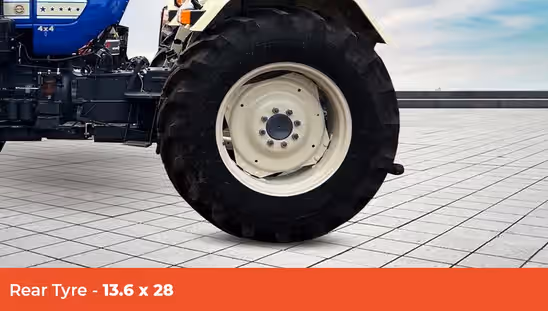

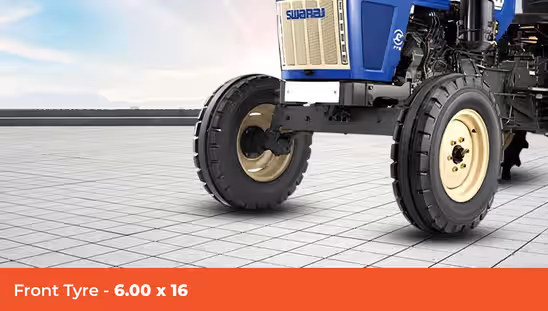

Tyres Size

  • It has a standard front tyre with dimensions of 6.00 X 16, while the rear tyre dimensions are 12.4 X 28 / 13.6 X 28. Such ideal tyre sizes not only offer better traction on and off the road.
  • This tractor comes in a 2WD option. It means that only the rear tyres receive power from the transmission system.

Swaraj 735 FE Key Highlights

  • A 12V/88Ah-rated battery powers the tractor's internal electrical system. The battery capacity is enough to handle intense and frequent use.
  • The tractor comes with a deluxe driver seat with an added suspension for increased convenience and less fatigue.
  • Swaraj 735 FE has a neutral safety switch. The starting circuit is complete only when this switch is activated. Thus, this switch prevents the tractor from getting started in any gear. It must be on park or neutral to get started.
  • This model comes equipped with telescopic stabilizer bars. The purpose of these bars is to keep implements lined behind the tractor without swaying.
  • The water separator in this tractor removes sold contaminants and water from the fuel. As it is a transparent separator, farmers can easily check when to drain the water.

Swaraj 735 FE Warranty

The Swaraj 735 FE hp price is affordable, and the warranty offered is noteworthy. According to the terms & conditions set by the manufacturer, this tractor comes with a warranty period of 2 years or 2,000 hours – whichever arrives first. Thus, you do not have to worry about the tractor's reliability over an extended usage period. The warranty is included in the Swaraj tractor 735 FE price.

Swaraj 735 FE Price in India 2023

The 735 Swaraj price ranges from INR 5.89 lakhs* to INR 6.26 lakhs*. At Tractorkarvan, EMI starts at INR 13,066 per month. When it comes to the Swaraj tractor 735 price 2023, the company has made it extremely value-oriented and economical for the Indian farming community. The mentioned price is the on-road Swaraj 735 price 2023.

Note that the Swaraj 735 FE E on road price 2022 could be less than the current Swaraj 735 FE E power steering price. The on-road price includes registration charges, insurance costs, and RTO charges. All these charges are levied on the ex-showroom Swaraj 735 price 2023.

The current Swaraj 735 FE E power steering price will be higher than its variant with mechanical steering or Swaraj 735 price 2022 and Swaraj 735 FE E HP price of previous years.

In addition, users can use the compare feature to compare Swaraj 735 FE power steering price with other Swaraj models that fall within the same HP category. Some comparable models include Swaraj 834 XM and Swaraj 735 XM.

Why choose Tractorkarvan for Swaraj 735 FE?

Tractorkarvan provides in-depth information, which includes details about the latest tractors and upcoming tractors of all tractor brands. Tractorkarvan has partnered with major Swaraj tractor dealers in India and created a platform where two tractor models can be effortlessly compared and chosen. You can also watch tractor videos to understand specifications in detail.

You can also buy used Swaraj tractors from our platform if you cannot raise the capital to purchase a new one. Explore Tractorkarvan to learn about various Swaraj models.

Read More

Swaraj 735 FE Engine

No. Of Cylinder 3
HP Category 35 - 40 HP
Engine Type RV-3 XM+ 3A, 4 Stroke, Direct Injection
Engine Rated RPM 1800 RPM
Capacity CC 2734 CC
Air Filter 3 Stage Oil Bath Type
Cooling System Liquid Cooled
Fuel Type Diesel
Bore / Stroke 100 / 116 mm
Emission Standard Bharat Trem III A

Swaraj 735 FE Transmission

Clutch Single / Dual
Gear Speed 8 Forward + 2 Reverse
Forward Speed 2.30 to 27.80 KM/H
Reverse Speed 2.73 to 10.74 KM/H
Gear Lever Position Centre Shift
Brakes Dry Disc Type Brakes / Oil Immersed Disc Brakes (Optional)

Swaraj 735 FE Steering

Type Mechanical Steering with Heavy Duty single drop arm / Power Steering

Swaraj 735 FE Power Take Off

PTO HP 33.7 HP
PTO Speed 1000 RPM / 540 RPM (Optional)
RPM 1000 RPM @ 1650 ERPM

Swaraj 735 FE Hydraulics

Lifting Capacity 1000 kg
3 point Linkage CAT I & II
Hydraulic Controls Automatic Depth and Draft Control (ADDC)

Swaraj 735 FE Tyre Size

Wheel Drive 2WD
Front 6.00 X 16
Rear 12.4 X 28 / 13.6 X 28

Swaraj 735 FE Dimensions And Weight

Total Weight 1845 kg
Wheel Base 1930 mm
Overall Length 3475 mm
Overall Width 1705 mm
Ground Clearance 380 mm

Swaraj 735 FE Electrical

Battery 12 V, 88 Ah

Swaraj 735 FE Safety Features

Neutral Safety Switch Yes

Swaraj 735 FE Other Information

Warranty 2 Year/ 2000 Hours
Instrument Cluster Analog
Driver Seat Deluxe Driver Seat with Better Suspension
Accessories Tools, Bumper, Ballast Weight, Top Link, Canopy, Drawbar, Hitch
Additional Features Steering Lock,Tap off Connection, Mobile Charger

TractorKarvan Take On Swaraj 735 FE

Good Things
  • Feature-rich: Comes with a range of advanced features that improve its productivity, safety and comfort.
  • Fuel Efficiency: Saves diesel with its Bharat (Trem) Stage III engine.
  • Versatile: Multispeed PTO and hydraulics allow farmers to perform diverse farming and haulage activities.
  • Maintenance: Hassle-free maintenance as the service network of Swaraj is spread across the country.
Could be Better
  • A side shift gear lever would have been more accessible.
  • Considering other similar HP tractors, it could have a higher lifting capacity.

Swaraj 735 FE Verdict By TractorKarvan

Swaraj 735 FE is loaded with efficient and cutting-edge features. No wonder it is the top-selling model of the brand. This Swaraj model is a favourite among farmers because of its low fuel consumption and high efficiency. It will be best for farmers who want a tractor to perform multiple tasks like haulage, tilling and sowing smoothly. This model has the best blend of power, comfort and safety. Also, Swaraj 735 FE offers different optional features to match the varying needs of farmers, including optional clutch, brakes, steering and PTO speed.

Product Review By TractorKarvan

4.2
Overall
4.5
Performance
4
Transmission
4
Hydraulics
4
Design
4.5
Ergonomics


Swaraj 735 FE User Reviews

rating star icon 4.8/5
overall
Based on 59 Reviews
4.8
Performance
4.7
Comfort
4.8
Value for Money
4.7
Style & Looks

All Reviews

rating rating rating rating rating
Acha clutch system or power or tel khapat
Engine kafi sahi hai is tractor ka kyuki ye power ke sath sath tel khapat pr bhi lagam lagae rehta hai jisse sab sahi rehta hai. isme clutch jo hai wo bhi lamba chalege kyuki jada jagha hai usme contact ki or isse ise kam maintenance bhi chahiye jisse or bachat hoti hai.
1 week ago | Abhimanyu Chaudhary
Rating Parameters
rating star icon 5/5
Performance
rating star icon 5/5
Comfort
rating star icon 5/5
Value for Money
rating star icon 5/5
Style & Looks
Read More
rating rating rating rating rating
Har mausam ka sathi hai ye tractor
Ye tractor wese to kuch khas nahi lagta pr feature ke mamle me to sabse acha laga mujhe, ye ek to kaise bhi mausam me bina dikkat die start ho jata hai or chalta hai kaam karta hai. fir isme sare kheti se jude kaam ke feature die hai company ne.
1 month ago | Jaypal Lodhi
Rating Parameters
rating star icon 3/5
Performance
rating star icon 3/5
Comfort
rating star icon 3/5
Value for Money
rating star icon 2.5/5
Style & Looks
Read More
rating rating rating rating rating
Implement chalane ke liye acha tractor hai
Mai apne tractor ko kafi samay se chala raha hu or ispr main rotavator or cultivator jaise implement chala kar dekhe hai or isne unhe bahut hi ache se or asani se chala liya hai. mai to is tractor se khus hu or mujhe isko chalane me koi dikkat nahi hai.
1 month ago | Jayakanta Ray
Rating Parameters
rating star icon 5/5
Performance
rating star icon 5/5
Comfort
rating star icon 5/5
Value for Money
rating star icon 5/5
Style & Looks
Read More
rating rating rating rating rating
Ise chalana kafi asan hai jaldi samajh ke
Agar kisi tractor ko istemal karna asan ho to kafi rahat ho jati hai or is tractor ke sath aisa hi hai. ye kafi asani se samajh aa jata hai ki kaha control hai kaise chalana hai or baki sab. is wjha se ise chalate wakt koi dikkat nahi hoti or koi bhi easily chala sakta hai.
1 month ago | Indra Pal Meena
Rating Parameters
rating star icon 5/5
Performance
rating star icon 5/5
Comfort
rating star icon 5/5
Value for Money
rating star icon 5/5
Style & Looks
Read More

Swaraj 735 FE Variants


Suitable Implements


Suitable Tyres


Swaraj Tractor Dealers & Service Centers


Frequently Asked Questions on Swaraj 735 FE

1. What is the on-road price of Swaraj 735 FE?

The on-road price ranges from INR 5.89 lakhs* to INR 6.26 lakhs*.

It consists of 8 Forward and 2 Reverse gear speeds.

Yes, you can use Swaraj 735 FE for key farming tasks.

This tractor is suitable for various farming implements such as cultivator, trailer and rotavator.

Swaraj 735 FE weight is 1895 Kg.

Swaraj 735 HP ranges from 35 to 40 HP.

Swaraj tractor 735 price EMI can be calculated using the EMI calculator on Tractorkarvan.

The lifting capacity of this tractor is 1000 kg.

Tractorkarvan provides the best EMI option for Swaraj FE. The EMI starts from INR 17,577*.

Swaraj offers a warranty of 2 years or 2000 hours on this tractor model.

The ground clearance of this model is 395 mm.

Yes, Sonalika DI 35 and Mahindra 275 DI are the alternatives to this Swaraj tractor.
