Brand John Deere Tractors
Series D Series Tractors
No. Of Cylinders 3
HP Category 40 HP
Gear Box Collarshift
Brakes Oil Immersed Multi Disc Brakes


Key Specifications of John Deere 5105

Tractor HP
Tractor HP
40 HP
Wheel Drive
Wheel Drive
2WD
Clutch
Clutch
Single
Gear Box
Gear Box
Collarshift
Steering
Steering
Power Steering
Lifting capacity
Lifting capacity
1600

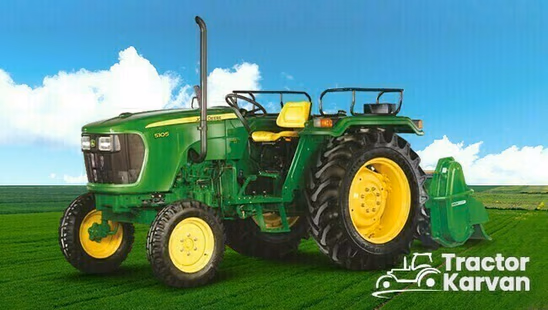

About John Deere 5105

John Deere 5105 price in India 2024 is reasonable and within an affordable range. John Deere 5105 HP is 40. It comes with an engine capacity of 2900 cc and a gear pattern of 8 forward and 4 reverse gears.

John Deere 5105 is one of the most reliable, efficient, and technologically advanced tractors from the John Deere D series. It is a versatile and popular tractor model used for farming and commercial purposes. The 5105 John Deere HP is 40, equipped with contemporary features and a powerful engine that works flawlessly on the field.

It is an ideal choice for Indian farmers in the tractors under 40 HP range. Moreover, the 5105 John Deere price is reasonable, making it a must-buy option in this HP range. Let’s deeply analyse this tractor model from the John Deere brand in the below sections.

Performance of John Deere 5105

Engine and Performance

  • This John Deere tractor model has a 3-cylinder diesel engine, which ensures more fuel efficiency compared to the 4-cylinder engines.
  • John Deere 5105 tractor engine capacity is 2,900 CC. The high cubic capacity means more power will be generated to do a particular task.
  • John Deere 5105 HP is 40, which is generated when the engine revolves at a speed of 2100 RPM. As a result, this tractor helps you perform challenging tasks on the field with ease and helps save fuel also.
  • It is equipped with Naturally Aspirated John Deere 3029D engine, which are low-maintenance engines but generate optimum power for farming works.
  • This John Deere tractor comes with a dry-type dual-element air filter. The air type filter has low maintenance and offers around 99% cleaning efficiency.
  • The tractor also features a liquid-cooled cooling system, which is used to keep the engine cool during long working hours. It offers better efficiency than the air-cooled system.

Transmission

  • John Deere 5105 features a collar shift gearbox. This gearbox features couplers between alternate gears, helping them mesh with each other constantly. As a result, the risk of gear teeth damage is minimum and gear shifting is smooth.
  • It comes with a single clutch. The single clutch means the implement will also stop simultaneously when the tractor stops.
  • The John Deere 5105 gear pattern is 8 Forward + 4 Reverse gear speeds. The tractor consists of two gear levers, one of 4 gear speeds, and the second consists of low and high gear modes.
  • The tractor comes with a side sift gear lever to ensure more comfort for the driver during gear shifting in the long run.

Power Take-Off (PTO)

  • The tractor provides a PTO speed of 540 RPM @ 2100 RPM. It means that the tractor produces a PTO speed of 540 RPM once the engine reaches 2100 RPM. Thus, the John Deere 5105 mileage is excellent.
  • The tractor also features an independent PTO, which includes a separate clutch to operate the PTO-driven implements such as Rotavator and Mulcher.

Hydraulics

  • John Deere 5105 lifting capacity is 1,600 kg, which ensures easy lifting of heavy implements, such as Disc Plough, Disc Harrow, Tractor Trailer, Water Tanker, etc.
  • It comes with Automatic Depth and Draft Control type of Hydraulic controls, which automatically adjusts the depth of implements during field operations.
  • The tractor’s 3-point linkage is designed to pin Category II implements.
  • The tractor also comes with an optional Remote/Auxiliary valve, which ensures that hydraulics implements can be attached and detached easily.

John Deere 5105 Additional Features

  • Brakes: This John Deere tractor is equipped with oil-immersed disc brakes. The braking efficiency of this type of brake is high as it is dipped in oil, ensuring more safety and less slippage.
  • Steering: The John Deere 5105 tractor features power steering. In this steering type, a high-pressure fluid is used for the intake and outgo of the pressure, providing better control with less effort and making it easy to steer.
  • Fuel Capacity: The fuel tank capacity is 60 litres. A large fuel tank ensures more hours of work without worrying about refuelling.
  • Tyres: The rear tyres size of this John Deere tractor is 13.6 x 28, and the size of the front tyre is 6 x 16. The benefit of large tyres is that they prevent slippage while working on muddy and wet farmlands.

John Deere 5105 Price in India 2024

The John Deere tractor 5105 price in India is in affordable range. This tractor can be purchased on a tractor loan with a starting EMI of INR 14,677 per month.

John Deere 5105 price in India 2024 represents the on-road price, not the ex-showroom price. The John Deere 5105 on road price 2024 includes road tax, RTO charges, and various other additional charges. The on-road John Deere tractor 5105 price may differ in different areas and as per year also.

John Deere 5105 on road price 2024 meets the budget of many farmers and is one of the preferred choices in the tractors under 7 lakhs range.

Tractorkarvan also offers the compare tractor feature, which can be used to compare the 5105 John Deere price with the other John Deere tractor models of similar HP range like John Deere 5036 D, John Deere 5039 D Power Pro, and many more.

John Deere 5105 Warranty

John Deere 5105 warranty is either five years on the field or 5000 hours of usage, whichever occurs before.

Why Choose Tractorkarvan for John Deere 5105?

At Tractorkarvan, users can learn about new John Deere tractors, second-hand John Deere tractors, John Deere tractor dealers, and more within a few clicks. Besides, you can also get information on John Deere implements and John Deere harvesters on the portal. Moreover, you can watch tractor videos to have a better understanding of all tractor brands and their models.

You can easily find all the information like John Deere 5105 price, John Deere 5105 mileage, features, and reviews on Tractorkarvan. Browse our catalogue and choose the most suitable tractor that fulfils your needs!

Read More

John Deere 5105 Engine

No. Of Cylinders 3
HP Category 40 HP
Engine Type John Deere 3029D, Naturally Aspirated
Engine Rated RPM 2100 RPM
Air Filter Dry Type, Dual Element
Cooling System Liquid Cooled
Fuel Type Diesel

John Deere 5105 Transmission

Clutch Single
Gear Box Collarshift
Gear Speed 8 Forward + 4 Reverse
Gear Lever Position Side Shift
Forward Speed 3.25 to 35.51 km/h
Reverse Speed 4.27 to 15.45 km/h
Brakes Oil Immersed Multi Disc Brakes
Rear Axle Planetary Gear with Straight Axle

John Deere 5105 Steering

Type Power Steering

John Deere 5105 Power Take Off

PTO Speed 540 RPM
RPM 540 @ 2100 ERPM

John Deere 5105 Fuel Capacity

Capacity 60 Litres

John Deere 5105 Hydraulics

Lifting capacity 1600 kg
3 Point Linkage CAT- II
Hydraulics Controls ADDC
Remote / Auxillary Valve Optional

John Deere 5105 Tyre Size

Wheel Drive 2WD
Front 6.00 X 16
Rear 13.6 X 28

John Deere 5105 Safety Features

ROPS Yes

John Deere 5105 Other Information

Warranty 5 Year/ 5000 Hours
Instrument Cluster Digital
Driver Seat Smart 3D Deluxe Seat with Seat Belt
Accessories Ballast Weights, Canopy, Canopy Holder, Drawbar, Wagon Hitch, Tow Hook
Additional Features Finger Guard, International Looks, Top Shaft Lubrication, Oil Jet for Piston Cooling

John Deere 5105 Variants

There are 2 Variants of John Deere 5105 available on Tractorkarvan with complete specification and prices.

TractorKarvan Take On John Deere 5105

Good Things
  • Powerful Engine: This tractor has a powerful engine compared to the other tractors in the similar HP category.
  • Modern Features: It comes with dual DCV value which is not available in any other tractor brand.
  • Unique Specifications: It is equipped with top shaft lubrication, which is not available in other brand tractors in 40 HP range.
  • High-tech Technology: It has planetary gear which is not available in other brands’ models.
Could be Better
  • Competitive Price: The cost is competitive in the market since it offers the best features in 40 Hp category.
  • Maintenance: The service and maintenance of this tractor can be done only at authorised John Deere service centres.

John Deere 5105 Verdict by TractorKarvan

Our analysis shows that John Deere 5105 is a perfect tractor for commercial and farming use. It is a 40 HP tractor and can drive different farm implements which are commonly used in agriculture. You may find different variants of this model, which are equipped with advanced technology and modern features. Overall, it is an ideal tractor for commercial use and normal farming.

Product review by TractorKarvan

4
overall
4
Power & Performance
4
Transmission
4
PTO & Hydraulics
4
Design & Styling
4
Ergonomics

John Deere 5105 User Reviews

No Reviews found. Be the first one to review!

Similar Used Tractors

John Deere 5036 D Second Hand Tractor
5036 D
John Deere
2017 | Price ₹2.45 Lakh
Udaipur, Rajasthan
Get More Details
John Deere 5036 D Second Hand Tractor
5036 D
John Deere
2022 | Price ₹4.19 Lakh
Hanumangarh, Rajasthan
Get More Details
John Deere 5038 D Second Hand Tractor
5038 D
John Deere
2009 | Price ₹1.60 Lakh
Rohtak, Haryana
Get More Details
John Deere 5105 4WD Second Hand Tractor
5105 4WD
John Deere
2020 | Price ₹6.55 Lakh
Banas Kantha, Gujarat
Get More Details

Similar Brands


Similar To John Deere 5105

New Holland 3037 TX Tractor
3037 TX
New Holland
39 HP 2WD
Get More Details
Eicher 330 Tractor
330
Eicher
35 HP 2WD
Get More Details
ACE DI 854 NG Tractor
DI 854 NG
ACE
32 HP 2WD
Get More Details
Indo Farm 2030 DI Tractor
2030 DI
Indo Farm
34 HP 2WD
Get More Details

Suitable Implements

Landforce PLR3 Multi Crop Row Planter Implement
PLR3
Landforce
Multi Crop Row Planter
30+ HP

Get More Details
Machino MDH-MO-14 Disc Harrow Implement
MDH-MO-14
Machino
Disc Harrow
40-45 HP

Get More Details
Machino MTDH-7 Disc Harrow Implement
MTDH-7
Machino
Disc Harrow
40-45 HP

Get More Details

Suitable Tyres

2

Yrs
Certified
APOLLO 13.6-28 Powerhaul Tyre
13.6-28 Powerhaul
APOLLO Tyres
Rear TyreSize - 13.60 X 28
Get More Details
GOOD YEAR 13.6-28 Vajra Super Tyre
13.6-28 Vajra Super
GOODYEAR Tyres
Rear TyreSize - 13.60 X 28
Get More Details
3

Yrs
Certified
RALCO 6.00-16 Ralco Tm Champion RL-4009 Tyre
6.00-16 Ralco Tm Champion RL-4009
RALCO Tyres
Front TyreSize - 6.00 X 16
Get More Details
3

Yrs
Certified
RALCO 6.00-16 Ralco Leader RL-4005 Tyre
6.00-16 Ralco Leader RL-4005
RALCO Tyres
Front TyreSize - 6.00 X 16
Get More Details

John Deere Tractor Dealers & Service Centers

Opp: Referal Hospital, Lalpatti, Tribeniganj, Supaul, Bihar - 852139
+91-*******188
Contact Dealer
45, Garikhana, Harmu Bypass Road, Near Shyam Mandir, Kanke, Ranchi, Jharkhand - 834001
+91-*******975
Contact Dealer
Near Gaushala, Ghor Bahar Main Road, Simdega, Simdega, Jharkhand - 835223
+91-*******439
Contact Dealer
Tiwari Mohalla, Bhakhrua More daud nagar, Daudnagar, Aurangabad, Bihar - 824143
+91-*******882
Contact Dealer
Mohanpur Pachamba Road, Opp Forest office, Giridih, Giridih, Jharkhand - 815301
+91-*******971
Contact Dealer
At Ramchandrapur, Deoghar, Deoghar, Jharkhand - 814142
+91-*******292
Contact Dealer

John Deere Tractor Videos in 2024

Frequently Asked Questions on John Deere 5105

1. What is the on-road price of John Deere 5105 in India 2024?

John Deere 5105 on road price 2024 is affordable.

John Deere 5105 HP is 40.

John Deere 5105 weighs 1810 kg.

John Deere 5105 gear pattern has 8 Forward plus 2 Reverse gears.

John Deere 5105 has a fuel tank capacity of 60 litres.

John Deere 5105 comes with power steering.

Tractorkarvan provides finance for purchasing John Deere 5105.

John Deere 5105 features oil-immersed disc brakes.

You can explore Tractorkarvan to get updated information about John Deere 5105.

John Deere 5105 is available in both 2WD and 4WD variants.

John Deere 5105 has a lifting capacity of 1600 kg.

John Deere 5105 has 3 cylinders.

You will get a single clutch option in John Deere 5105.

John Deere 5105 comprises 6 X 16 sized front tyres and 13.6 X 28 sized rear tyres.
