Brand New Holland Tractors
Series Super Series Tractors
No. Of Cylinders 3
HP Category 49.5 HP
Gear Box Constant Mesh / Partial Synchromesh
Brakes Oil Immersed Multi Disc Brakes


Key Specifications Of New Holland 3630 TX Super Plus +

Tractor HP
Tractor HP
49.5 HP
Wheel Drive
Wheel Drive
2WD
Clutch
Clutch
Double Clutch with Independent PTO Lever
Gear Box
Gear Box
Constant Mesh / Partial Synchromesh
Steering
Steering
Power Steering
Lifting capacity
Lifting Capacity
1700 / 2000

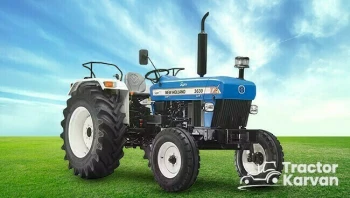

About New Holland 3630 TX Super Plus +

New Holland 3630 Super Plus + price in India ranges from INR 7.63 lakhs* to INR 8.94 lakhs*. The New Holland 3630 Super Plus + HP is 49.5 horsepower. It has a gear pattern consisting of 8 forward and 2 reverse gears.

New Holland 3630 TX Super Plus + tractor from the New Holland Super series offers value-oriented features, performance, and efficiency. Hence, you can expect it to handle any farming task effortlessly, ultimately allowing your farming business to flourish. To learn more about the New Holland 3630 TX Super Plus + tractor, feel free to go through our in-depth guide below.

New Holland 3630 TX Super Plus + Top Features

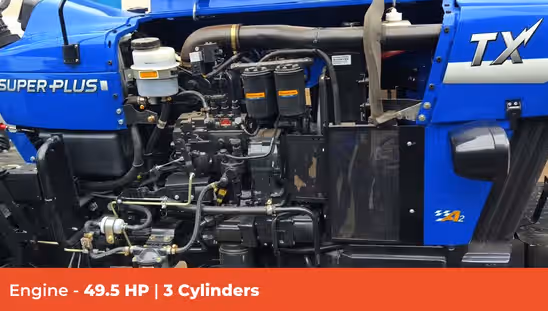

Engine

  • New Holland 3630 TX Super Plus + tractor HP is 49.5. It is a widely preferred tractor under 50 HP. It consists of 3 cylinders and comes with an FPT S8000 diesel engine. This configuration allows it to handle all the agricultural activities and handle a wide range of implements such as Disc Plough and Subsoiler.
  • It has an oil-bath air filter with a pre-cleaner, which prevents dust particles from entering the engine and only allows clean air to pass.
  • New Holland 3630 Super tractor’s liquid-cooled feature prevents the engine from overheating during work.
  • It also features an inline fuel pump, which ensures a constant fuel supply.

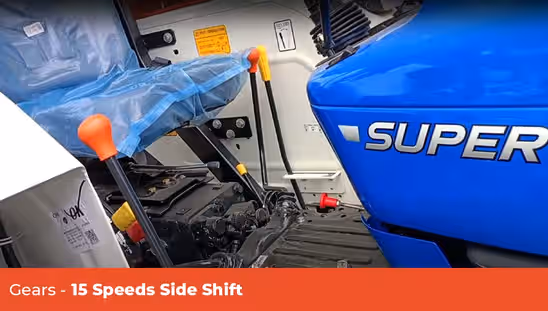

Transmission

  • New Holland 3630 Super Plus + comes with a fully constant mesh / partial synchromesh gearbox. As the gears are always in mesh, it ensures a smoother transmission as compared to a sliding mesh gearbox.
  • This tractor comes with a double clutch with an independent PTO lever, which allows the independent operation of both the attached PTO implement and the tractor.
  • It has three gear speeds – 8 forward + 2 reverse gears / 12 Forward + 3 Reverse creepers, 12 Forward + 3 Reverse UG. A wide range of gear speeds allows the operator to go with the optimal speed for work, thus ensuring efficient performance and fuel efficiency.
  • The side shift gear lever provides extra comfort to the user as it is easily accessible.

Power Take-Off (PTO)

  • It has a PTO speed of 540 RPM along with GSPTO. GSPRO stands for ground speed PTO, where the implement operates at the same speed of the tractor.
  • The tractor also has a Reverse PTO, which allows the reverse rotation of the implement in case any material is stuck in the blades or drums.
  • The model can easily operate different PTO-driven implements like Rotavator and Mulcher.
  • Its PTO RPM is 540, clocked at 1800 engine RPM. This implies that the tractor can achieve 540 PTO speed at only 1800 engine RPM, thus eventually saving fuel.

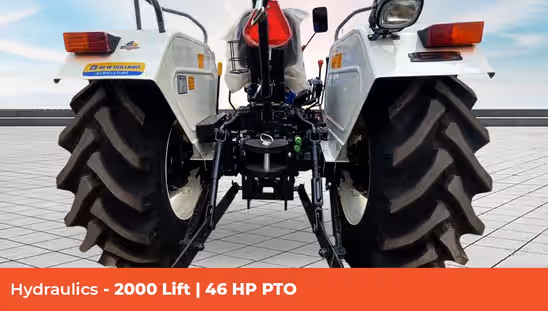

Hydraulics

  • New Holland 3630 Super Plus hydraulic lifting capacity is 1700 kg / 1200 kg with an assist ram. This configuration allows the tractor to lift significantly heavy implements like Baler and Cutter Mixer Feeder for farming activities.
  • The hydraulic controls of this New Holland tractor are Sensomatic24 with 24 sensing points / DRC valve & Isolator valve / Lift-O-Matic with Height Limiter, which reduces the operator intervention by automatically adjusting the implement.
  • This New Holland tractor also features an optional remote/auxiliary valve. This adds to the overall power of lifting the tractor.

Brakes and Steering

  • The tractor has been fitted with mechanically actuated oil-immersed multi-disc brakes that are mechanically activated to ensure proper safety on the road and longevity of the brakes.
  • It is equipped with power steering, providing a smooth riding experience to the operator.

New Holland 3630 TX Super Plus + Benefits

  • The tractor comes with an inline FIP or fuel injection pump to enhance the engine's overall performance in the long run.
  • There's also support for features such as paddy sealing and a 48-inch potato front axle to increase agricultural productivity.
  • The tractor also features a sunroof known as Skywatch and 2 remote valves.
  • Additionally, the supported list of accessories includes ballast weight, tools, bumper, top link and canopy.

New Holland 3630 TX Super Plus + Additional Features

  • Tyres: The tractors front wheels are measured to be 7.50 X 16 in size, while the rear wheels have dimensions of 16.9 X 28.
  • Electrical: The tractor uses a digital instrument cluster powered by an 88 Ah battery and a 45/55 Amp alternator.

New Holland 3630 Super Plus Price 2024

The New Holland 3630 4×4 price in India ranges from INR 7.63 lakhs* to INR 8.94 lakhs*. The on-road price of the tractor will vary since it will be based on multiple factors such as RTO charges, insurance costs, road taxes, transportation costs, etc.

You can also get this model on EMI starting at INR 16,928, if you are using the tractor loan facility available on Tractorkarvan.

Moreover, customers can use the compare tractor feature to compare the specifications and prices of different tractor models. For example, New Holland 3600-2 TX All Rounder PlusNew Holland 3600-2 Excel, etc.

New Holland 3630 TX Super Plus + Warranty

The New Holland 3630 TX Super Plus + tractor comes with a manufacturer warranty of 6,000 hours or 6 years – whichever comes earlier.

Why choose Tractorkarvan for New Holland 3630 TX Super Plus +?

Tractorkarvan is your ideal destination to find all related information to the New Holland 3630 TX Super Plus + tractor, such as the New Holland 3630 price, warranty, features, benefits, etc. You may also learn about New Holland tractor dealers, used New Holland tractors and more on Tractorkarvan.

You can visit Tractorkarvan and obtain knowledge regarding the New Holland 3630 TX Super mileage, customer reviews, photos, tractor videos, and more.

Read More

New Holland 3630 TX Super Plus + Engine

No. Of Cylinders 3
HP Category 49.5 HP
Engine Type FPT S8000 Series, Naturally Aspirated
Engine Rated RPM 2100 RPM
Air Filter Oil Bath with Pre Cleaner
Cooling System Liquid Cooled
Fuel Type Diesel
Fuel Pump Type Inline

New Holland 3630 TX Super Plus + Transmission

Clutch Double Clutch with Independent PTO Lever
Gear Box Constant Mesh / Partial Synchromesh
Gear Speed 8 Forward + 2Reverse / 12 Forward + 3 Reverse (Creeper) / 12 Forward + 3 Reverse (UG)
Gear Lever Position Side Shift
Brakes Oil Immersed Multi Disc Brakes
Rear Axle Outboard Reduction

New Holland 3630 TX Super Plus + Steering

Type Power Steering

New Holland 3630 TX Super Plus + Power Take Off

PTO Speed 540 RPM & GSPTO / RPTO
RPM 540 @ 1800 ERPM

New Holland 3630 TX Super Plus + Fuel Capacity

Capacity 60 Litres

New Holland 3630 TX Super Plus + Hydraulics

Lifting Capacity 1700 / 2000 kg
Remote / Auxillary Valve Dual

New Holland 3630 TX Super Plus + Tyre Size

Wheel Drive 2WD
Front 7.50 X 16
Rear 16.9 X 28

New Holland 3630 TX Super Plus + Dimensions And Weight

Total Weight 2180 kg
Wheel Base 2040 mm
Overall Length 3465 mm
Overall Width 1815 mm
Ground Clearance 445 mm

New Holland 3630 TX Super Plus + Electrical

Battery 88 Ah
Alternator 45 / 55 Amp

New Holland 3630 TX Super Plus + Other Information

Warranty 6 Year/ 6000 Hours
Accessories LED Fender Lamps, Softek Clutch with Safety lock
Additional Features 55 kg Front Weight Carrier, Lift-O-matic with Height Limiter, Potato Special Axle 48

New Holland 3630 TX Super Plus + Variants

There are 6 Variants of New Holland 3630 TX Super Plus + available on Tractorkarvan with complete specification and prices.

TractorKarvan Take On New Holland 3630 TX Super Plus +

Good Things
  • Hydraulics: It is equipped with Sensomatic24 with 24 sensing points, Lift-O-Matic with Height Limiter, DRC valve & Isolator valve, and lifting capacity of 1700/2000 kg with assist Ram.
  • PTO: It has ground speed PTO reverse PTO and can achieve 540 RPM PTO speed at 1800 engine RPM only.
  • Gear Speed: It comes with 8 Forward + 2 Reverse / 12 Forward + 3 Reverse Creeper, 12 Forward + 3 Reverse UG, allowing for a wide range of speed selection according to the work.
Could be Better
  • The presence of a dry-type air filter could have been better.

New Holland 3630 TX Super Plus + Verdict

From our analysis of the New Holland 3630 TX Super Plus, we can say that this is a perfect tractor for those looking for a powerful yet fuel-efficient tractor for their farming needs. The tractor packs in several features that cater to a wide range of farmers, thus attracting several farmers. It comes with GSPTO, RPTO, heavy lifting capacity, several gear-speed options and various other features. This makes it an attractive model suitable for normal farming.

Product review by TractorKarvan

4.4
overall
4.5
Power & Performance
4.5
Transmission
4.5
PTO & Hydraulics
4
Design & Styling
4.5
Ergonomics

New Holland 3630 TX Super Plus + User Reviews

No Reviews found. Be the first one to review!


Similar Used Tractors

New Holland Excel 5510 Second Hand Tractor
Excel 5510
New Holland
2023 | Price ₹3.25 Lakh
Tiruvannamalai, Tamil Nadu
Get More Details
New Holland 3230 NX Second Hand Tractor
3230 NX
New Holland
2022 | Price ₹2.68 Lakh
Prayagraj, Uttar Pradesh
Get More Details
New Holland 3600 TX Heritage Edition Second Hand Tractor
3600 TX Heritage Edition
New Holland
2022 | Price ₹3.96 Lakh
Gorakhpur, Uttar Pradesh
Get More Details
New Holland 3230 NX Second Hand Tractor
3230 NX
New Holland
2022 | Price ₹5.24 Lakh
Nashik, Maharashtra
Get More Details

Similar Brands


Similar To New Holland 3630 TX Super Plus +


Suitable Implements

Garud GPH20016 Power Harrow Implement
GPH20016
Garud
Power Harrow
60 HP

Get More Details
Machino MSS-HV-1 Subsoiler Implement
MSS-HV-1
Machino
Subsoiler
40-50 HP

Get More Details
Shaktiman Semi Champion Plus SCP 280 Rotavator Implement
Semi Champion Plus SCP 280
Shaktiman
9 Feet Rotavator
80-90 HP
Price starts ₹1.68 Lakh
Buy On Installments
Bhoomi Agro Automatic BASCFD07 Seed Drill Implement
Automatic BASCFD07
Bhoomi Agro
Seed Drill
35+ HP

Get More Details

Suitable Tyres

BKT 16.9-28 AGRIMAX ELOS Tyre
16.9-28 Agrimax Elos
BKT Tyres
Rear TyreSize - 16.90 X 28
Get More Details
GOOD YEAR 7.50-16 Vajra Super Tyre
7.50-16 Vajra Super
GOODYEAR Tyres
Front TyreSize - 7.50 X 16
Get More Details
5

Yrs
Certified
Birla 16.9-28 Shaan+ Tyre
16.9-28 Shaan+
BIRLA Tyres
Rear TyreSize - 16.90 X 28
Get More Details
BKT 16.9-28 FARM 2000 8 PR Tyre
16.9-28 Farm 2000 8 PR
BKT Tyres
Rear TyreSize - 16.90 X 28
Get More Details

New Holland Tractor Dealers & Service Centers

Bus Stand, Chura Mill, Araria, Araria, Bihar - 854311
+91-*******401
Contact Dealer
Opp. Anchit Sah High School, Belouri, Purnea-Katihar Road, Purnia East, Purnia, Bihar - 854326
+91-*******125
Contact Dealer
Jogbani Road, Ward No.1, Near Hdfc Bank, Araria, Araria, Bihar - 854318
+91-*******266
Contact Dealer
Bheria Rahika Nagar, Parisad ward No.03, Near Bmp-7, Katihar, Katihar, Bihar - 854105
+91-*******193
Contact Dealer
Near Phulaut Chowk, Udakishanganj, Kishanganj, Kishanganj, Bihar - 852220
+91-*******771
Contact Dealer
K Nagar, Banbhag Chowk, Purnia East, Purnia, Bihar - 854301
+91-*******363
Contact Dealer

Frequently Asked Questions On New Holland 3630 TX Super Plus +

1. What is the type of wheel drive functionality that can be found in the New Holland 3630 TX Super Plus + tractor?

The New Holland 3630 TX Super Plus + tractor uses a 2WD functionality.

The New Holland 3630 TX Super Plus + tractor features a 60-litre fuel tank capacity.

The New Holland 3630 TX Super Plus + tractor supports power steering functionality.

The New Holland 3630 TX Super Plus + tractor uses a side shift gear lever position.

The New Holland 3630 TX Super Plus + tractor uses an inline fuel pump type.

This New Holland 3630 TX Super Plus HP (horsepower) is 49.5 HP.

The New Holland 3630 TX Super Plus price ranges from INR 7 lakhs* to INR 9 lakhs*.
