Brand John Deere Tractors
Series D Series Tractors
No. Of Cylinders 3
HP Category 40 HP
Gear Box Collarshift
Brakes Oil Immersed Multi Disc Brakes


Key Specifications Of John Deere 5105 4WD

Tractor HP
Tractor HP
40 HP
Wheel Drive
Wheel Drive
4WD
Clutch
Clutch
Single / Dual
Gear Box
Gear Box
Collarshift
Steering
Steering
Power Steering
Lifting capacity
Lifting capacity
1600

About John Deere 5105 4WD

John Deere 5105 4WD price in India is reasonable with all its modern technology and features. It offers a power output of 40 HP. Thus, this model can carry out a range of heavy-duty tasks on the field.

John Deere launched a new power-packed agricultural tractor in the John Deere D series, John Deere 5105 4WD. John Deere 5105 4WD HP is 40 horsepower, and it is a powerful tractor under 40 HP category. This tractor is known for its top-notch performance, mileage and unique features.

John Deere 5105 4WD is the latest tractor model from the brand. Also, the John Deere tractor 5105 4WD price is reasonable. Keep reading to learn more about this tractor from John Deere, such as the John Deere 5105 4WD price in India 2024, features, benefits, and more.

John Deere 5105 4WD Top Specifications

Engine & Performance

  • John Deere 5105 4WD HP is 40 generated at an engine RPM of 2100. The engine power and RPM make the tractor capable of performing heavy-duty tasks easily with lesser fuel consumption.
  • The tractor consists of a dry-type dual-element air filter and a liquid-cooled cooling system. This filter ensures that air free of particulate matter only enters the internal combustion process.
  • The cooling system works to maintain the ideal engine operating temperature so that its components do not get damaged.

Transmission

  • The transmission system of John Deere 5105 4WD features a single or dual clutch option. The tractor comes with a collar shift gearbox. The gears of this gearbox are always found to be engaged. Thus, the gear changes are easier and smoother.
  • This tractor has 12 gear speeds, including 8 Forward + 4 Reverse gears. These gear speeds make it possible to select the suitable gear ratio for matching a particular task or operating condition.

Power Take-Off (PTO)

  • The PTO speed of this tractor from John Deere is 540 RPM @ 2100 ERPM. This PTO speed allows it to work with a variety of tractor implements.
  • Examples of compatible implements such as Rotary Slasher and Seed Drill.

Hydraulics

  • John Deere 5105 4WD lifting capacity is 1600 kg, and it is equipped with Category II 3-point linkage. As a result, it can lift hydraulic implements like Hydraulic Reversible MB Plough and Disc Harrow.
  • The hydraulic controls featured in this tractor are Automatic Depth and Draft Control (ADDC). With the help of ADDC, consistent working depth can be maintained during field operations.

Brakes & Steering

  • John Deere 5105 4WD features oil-immersed disc brakes. This braking system provides enhanced braking performance as its oil functions as an effective lubrication and cooling medium.
  • This tractor comes with a power steering option. This steering offers better control over the tractor on and off the road. This is because it does not entail much steering effort from the operator.

Wheel Drive & Tyres

  • This model is a 4-wheel drive tractor. It means that the tractor can easily operate on rough surfaces and steep slopes. Also, it is perfect for operations in wet farmlands.
  • The size of the front tyres and rear tyres in John Deere 5105 4WD are 8 X 18 and 13.6 X 28, respectively. Big tractor tyres offer better grip on the road along with enhanced load-bearing capacity.

John Deere 5105 4WD Key Benefits

  • Its reasonable John Deere 5105 4wd on road price, low maintenance cost and better after-sales services make the tractor the most favoured among farmers.
  • Its big 60-litre fuel tank capacity lasts during time-taking operations in a single-time refill. John Deere 5105 4WD mileage is also quite efficient.
  • This tractor has additional features that add to its comfort and convenience, like a digital instrument cluster, JD Link app, finger guard and hydraulic auxiliary pipe.
  • For safety purposes, this model comes with ROPS and a smart 3D deluxe seat with a seat belt. It makes the John Deere 5105 4x4 price highly reasonable.

John Deere 5105 4WD Price in India 2024

The John Deere 5105 4WD on road price in India 2024 ranges within a reasonable price bracket. You can even buy this powerful tractor on a tractor loan from Tractorkarvan with a starting EMI of INR 17,652 per month. The EMI is for the final John Deere 5105 4X4 price.

Meanwhile, users may compare the John Deere 5105 4x4 price with other John Deere models in a similar HP range using the compare tractor tool on Tractorkarvan. Some popular John Deere models with similar HP are the John Deere 5042 D Power Pro and John Deere 5045 D Power Pro.

John Deere 5105 4WD Warranty

John Deere promises a 5-year or 5000-hour warranty on John Deere 5105 4WD tractors. The after-sales services of John Deere tractor 5105 are also good, with a wide range of service workshops all over India.

Why choose Tractorkarvan for John Deere 5105 4WD?

At Tractorkarvan, you can find the John Deere 5105 4WD price in India 2024, John Deere tractor dealerssecond-hand John Deere tractors, photos, tractor videos, and other details on Tractorkarvan.

We help you find a suitable model by having a wide range of John Deere 4WD tractors in our catalogue. Browse Tractorkarvan today for more updates on the John Deere tractor 5105 4wd price.

Read More

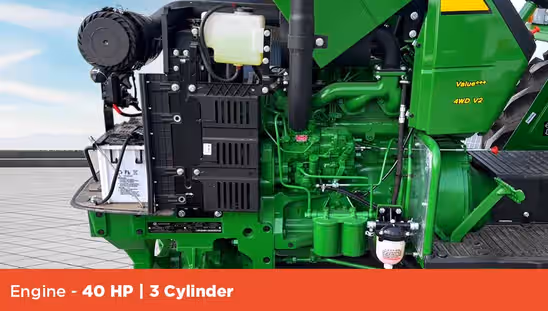

John Deere 5105 4WD Engine

No. Of Cylinders 3
HP Category 40 HP
Engine Type John Deere 3029D, Naturally Aspirated
Engine Rated RPM 2100 RPM
Air Filter Dry Type, Dual Element
Cooling System Liquid Cooled
Fuel Type Diesel

John Deere 5105 4WD Transmission

Clutch Single / Dual
Gear Box Collarshift

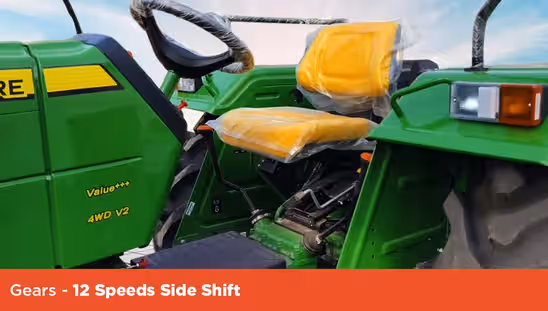

Gear Speed 8 Forward + 4 Reverse
Gear Lever Position Side Shift
Forward Speed 2.84 to 31.70 km/h
Reverse Speed 3.74 to 13.52 km/h
Brakes Oil Immersed Multi Disc Brakes
Rear Axle Planetary Gear with Straight Axle

John Deere 5105 4WD Steering

Type Power Steering

John Deere 5105 4WD Power Take Off

PTO Speed 540 RPM
RPM 540 @ 2100 ERPM

John Deere 5105 4WD Fuel Capacity

Capacity 60 Litres

John Deere 5105 4WD Hydraulics

Lifting capacity 1600 kg
3 Point Linkage CAT- II
Hydraulics Controls ADDC
Remote / Auxillary Valve Optional

John Deere 5105 4WD Tyre Size

Wheel Drive 4WD

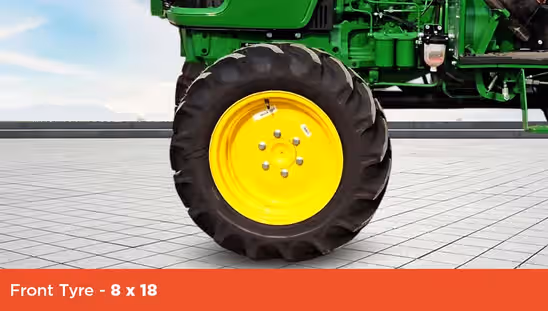

Front 8 X 18

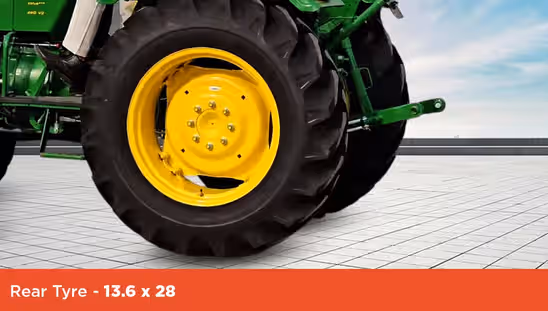

Rear 13.6 X 28

John Deere 5105 4WD Safety Features

ROPS Yes

John Deere 5105 4WD Other Information

Warranty 5 Year/ 5000 Hours

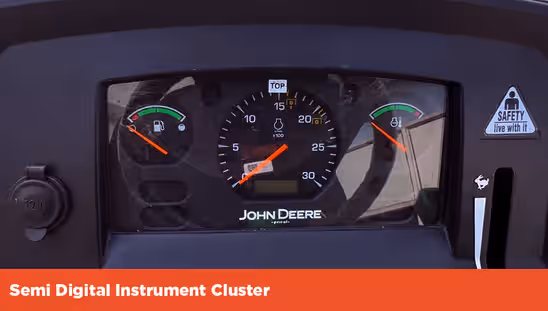

Instrument Cluster Digital
Driver Seat Smart 3D Deluxe Seat with Seat Belt
Accessories Ballast Weights, Canopy, Canopy Holder, Drawbar, Wagon Hitch, Tow Hook
Additional Features Finger Guard, International Looks, Top Shaft Lubrication, Oil Jet for Piston Cooling

John Deere 5105 4WD Variants

There are 2 Variants of John Deere 5105 4WD available on Tractorkarvan with complete specification and prices.

TractorKarvan Take On John Deere 5105 4WD

Good Things
  • Rear Axle: Planetary gear with a Straight axle does not break easily and ensures low maintenance because of lesser wear and tear.
  • Comfort: Equipped with features that ensure operator’s comfort, such as deluxe seat, power steering and dual clutch.
  • Oil Jet: Ensures piston cooling by dissipating heat and optimizing engine temperature.
  • High Engine Torque: Offers the ability to manage sudden loads.
Could be Better
  • Could have offered more PTO speed options.

John Deere 5105 4WD Verdict

John Deere 5105 4WD is a 40-horsepower tractor that is designed for conducting a variety of agricultural applications. This model offers several features, making it a good choice for farmers, including a powerful engine and compatibility with a variety of attachments. The tractor also has a 12-speed transmission with eight forward and four reverse gears, giving the operator a wide range of speeds. Overall, John Deere 5105 4WD is a versatile tractor that is a good choice for various agricultural tasks.

Product review by TractorKarvan

4.5
overall
4.5
Power & Performance
4.5
Transmission
4.5
PTO & Hydraulics
4.5
Design & Styling
4.5
Ergonomics

John Deere 5105 4WD User Reviews

No Reviews found. Be the first one to review!


Similar Used Tractors

John Deere 5105 4WD Second Hand Tractor
5105 4WD
John Deere
2020 | Price ₹6.55 Lakh
Banas Kantha, Gujarat
Get More Details

Similar Brands


Similar To John Deere 5105 4WD

Eicher 330 Tractor
330
Eicher
35 HP 2WD
Get More Details
John Deere 3036 EN Tractor
3036 EN
John Deere
36 HP 4WD
Get More Details
Powertrac 439 RDX Tractor
439 RDX
Powertrac
40 HP 2WD
Get More Details
Cellestial 35 HP Tractor
35 HP
Cellestial
35 HP 4WD
Get More Details

Suitable Implements

Machino MRT-MSH 7 FT Rotavator Implement
MRT-MSH 7 FT
Machino
7 Feet Rotavator
40-50 HP

Get More Details
Fieldking FKLRHD1-8 Landscape Rake Implement
FKLRHD1-8
Fieldking
Landscape Rake
35-45 HP

Get More Details
Yodha Laser Land Leveler Laser Land Leveler Implement
Laser Land Leveler
Yodha
Laser Land Leveler
35+ HP

Get More Details
Bansal BIM 50 T Thresher Implement
BIM 50 T
Bansal
Thresher
35+ HP

Get More Details

Suitable Tyres

MRF 8.00-18 Shakti Life - TT (F) Tyre
8.00-18 Shakti Life - TT (F)
MRF Tyres
Front TyreSize - 8.00 X 18
Get More Details
5

Yrs
Certified
BIRLA 13.6-28 Shaan+ Tyre
13.6-28 Shaan+
BIRLA Tyres
Rear TyreSize - 13.60 X 28
Get More Details
7

Yrs
Certified
CEAT 13.6-28 Aayushmaan R1 Tyre
13.6-28 Aayushmaan R1
CEAT Tyres
Rear TyreSize - 13.60 X 28
Get More Details
7

Yrs
Certified
JK Prithvi 13.6-28 Tyre
Prithvi 13.6-28
JK Tyres
Rear TyreSize - 13.60 X 28
Get More Details

John Deere Tractor Dealers & Service Centers

Opp: Referal Hospital, Lalpatti, Tribeniganj, Supaul, Bihar - 852139
+91-*******188
Contact Dealer
45, Garikhana, Harmu Bypass Road, Near Shyam Mandir, Kanke, Ranchi, Jharkhand - 834001
+91-*******975
Contact Dealer
Near Gaushala, Ghor Bahar Main Road, Simdega, Simdega, Jharkhand - 835223
+91-*******439
Contact Dealer
Tiwari Mohalla, Bhakhrua More daud nagar, Daudnagar, Aurangabad, Bihar - 824143
+91-*******882
Contact Dealer
Mohanpur Pachamba Road, Opp Forest office, Giridih, Giridih, Jharkhand - 815301
+91-*******971
Contact Dealer
At Ramchandrapur, Deoghar, Deoghar, Jharkhand - 814142
+91-*******292
Contact Dealer

Frequently Asked Questions On John Deere 5105 4WD

1. What is the on-road price of John Deere 5105 4WD in India 2024?

The on-road John Deere 5105 4WD price in India 2024 is within a reasonable range.

John Deere 5105 4WD HP is 40 horsepower.

John Deere 5105 4WD weight is 1810 kg.

John Deere 5105 4WD gear pattern consists of 8 Forward + 4 Reverse gears.

John Deere 5105 4WD has a fuel tank capacity of 60 litres.

John Deere 5105 4WD has power steering.

Tractorkarvan provides finance for purchasing John Deere 5105 4WD.

John Deere 5105 4WD comes with oil-immersed disc brakes.

Tractorkarvan provides updated information on John Deere 5105 4WD.

John Deere 5105 4WD comes in a 4-wheel-drive variant.

The lifting capacity of John Deere 5105 4WD is 1600 kg.

John Deere 5105 4WD consists of 3 cylinders.

John Deere 5105 4WD comes equipped with a single or dual-clutch option.

The front and rear tyres sizes in John Deere 5105 4WD are 8 X 18 and 13.6 X 28, respectively.
