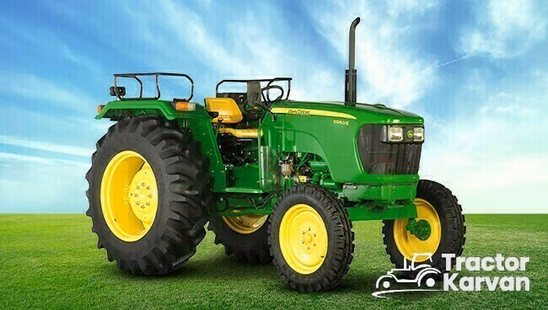

John Deere 5060 E

This model has been discontinued
Brand John Deere Tractors
Series E Series Tractors
No. Of Cylinders 3
HP Category 60 HP
Gear Box Top Shaft Synchromesh (TSS)
Brakes Self Adjusting, Self Equalizing, Hydraulically Actuated Oil Immersed Disc Brake


Key Specifications Of John Deere 5060 E

Tractor HP
Tractor HP
60 HP
Wheel Drive
Wheel Drive
2WD
Clutch
Clutch
Dual
Gear Box
Gear Box
Top Shaft Synchromesh (TSS)
Steering
Steering
Power Steering
Lifting Capacity
Lifting Capacity
2000

About John Deere 5060 E

John Deere 5060 E justified its features and performance. This tractor delivered a power output of 60 HP.

John Deere 5060 E Engine

This John Deere tractor had a direct injection turbocharged engine and generated a power output of 60 HP. It was equipped with 3 cylinders, and its engine rated RPM was 2400. It also featured a liquid-cooling system and a dry-type dual-element air filter. The fuel pump offered in this tractor was rotary type.

John Deere 5060 E Transmission

This tractor’s transmission system featured a dual clutch and top shaft synchromesh (TSS) gearbox. The gear speeds of this tractor were 9 Forward + 3 Reverse gears and a side shift gear lever. The tractor’s top forward speed was 31.9 km/h.

Its rear axle was planetary gear with straight axle.

John Deere 5060 E Brakes & Steering

The brake type of this tractor was self-adjusting, self-equalising, hydraulically actuated oil-immersed disc brakes. The steering type is power steering with tilt steering option.

John Deere 5060 E PTO & Hydraulics

The PTO speeds offered in this tractor were 540 RPM & 540E / RPTO (optional).

This tractor had a lifting capacity of 2000 kg. It also featured ADDC/EQRL hydraulics and a dual remote/auxillary valve.

John Deere 5060 E Tyres

The front tyre size of this tractor was 6.50 X 20, and the rear tyre size was 16.9 X 28.

John Deere 5060 E Weight & Dimensions

The John Deere 5060 E had a total weight of 2130 kg.

Its wheelbase and ground clearance were 2050 mm and 470 mm, respectively.

John Deere 5060 E Other Features

This tractor had a fuel tank capacity of 68 litres.

The brand offered a warranty of 5 years/5000 hours on John Deere 5060 E.

What is the price of John Deere 5060 E in India 2025?

The John Deere 5060 E price in India had justified its features and performance.

What are the Alternatives for John Deere 5060 E on Tractorkarvan?

Tractorkarvan is the leading platform having all the details regarding John Deere tractors, including John Deere 5060 E model. Here, you will find details such as price, HP and other specifications. You can also compare two tractors using our compare tractor tool on the platform. As this model is discontinued, you can opt for the best alternatives to John Deere 5060 E, which is available on the platform, such as John Deere 5310 Gear Pro Trem IV. You can also get details of Second hand John Deere Tractors on our portal. Moreover, we have also listed informative John Deere Tractor Videos to help you learn more about the features of these tractors. Explore Tractorkarvan to get information about other models of John Deere.

Read More

John Deere 5060 E Engine

No. Of Cylinders 3
HP Category 60 HP
Engine Type Direct Injection, Turbo Charged Engine
Engine Rated RPM 2400 RPM
Air Filter Dry Type, Dual Element
Cooling System Liquid Cooled
Fuel Type Diesel
Fuel Pump Type Rotary

John Deere 5060 E Transmission

Clutch Dual
Gear Box Top Shaft Synchromesh (TSS)
Gear Speed 9 Forward + 3 Reverse
Gear Lever Position Side Shift
Forward Speed 2.6 to 31.9 km/h
Reverse Speed 3.8 to 24.5 km/h
Brakes Self Adjusting, Self Equalizing, Hydraulically Actuated Oil Immersed Disc Brake
Rear Axle Planetary Gear with Straight Axle

John Deere 5060 E Steering

Type Power Steering
Adjustment Tilt Steering

John Deere 5060 E Power Take Off

PTO Speed 540 RPM & 540E / RPTO (Optional)
RPM 540 @ 2376 ERPM

John Deere 5060 E Fuel Capacity

Capacity 68 Litres

John Deere 5060 E Hydraulics

Lifting Capacity 2000 kg
3 Point Linkage CAT- II
Hydraulics Controls ADDC /Electrical Quick Rise and Lower (EQRL)
Remote / Auxillary Valve Dual

John Deere 5060 E Tyre Size

Wheel Drive 2WD
Front 6.50 X 20
Rear 16.9 X 28

John Deere 5060 E Dimensions And Weight

Total Weight 2130 kg
Wheel Base 2050 mm
Overall Length 3540 mm
Overall Width 1850 mm
Ground Clearance 470 mm
Turning radius with brake 3.1 m

John Deere 5060 E Electrical

Battery 88 Ah, 12 V
Alternator 40 Amp 12 V

John Deere 5060 E Safety Features

ROPS Yes

John Deere 5060 E Other Information

Warranty 5 Year/ 5000 Hours
Instrument Cluster Digital, Multi Function Display
Accessories Ballast Weights, Canopy, Canopy Holder, Drawbar, Wagon Hitch, Tow Hook
Additional Features JD Link, Finger Guard, International Looks, Top Shaft Lubrication, Oil Jet for Piston Cooling, Mobile Charging Point with Holder

John Deere 5060 E Variants

You can find the variants of John Deere 5060 E available on Tractorkarvan with complete specification & prices. Total variant's available 3.

TractorKarvan Take On John Deere 5060 E

Good Things
  • 3-cylinder turbocharged engine.
  • Top shaft synchromesh (TSS) gearbox.
  • Tilted steering adjustment.
Could be Better
  • The maximum power was produced at a higher RPM.

John Deere 5060 E Verdict

John Deere 5060 E was a heavy-duty tractor ensuing powerful performance when working with heavy implements such as super seeder, dozer and loader. It worked in almost all types of soil conditions. The stylish looks of this tractor attracted farmers. Its features, such as excellent height, amazing ground clearance, tilted steering adjustment and Reverse PTO option, made this tractor famous in India. The additional features, such as heat guards and JD link connectivity, were plus points. However, this model has been discontinued by the brand. So, you can look for alternatives to this tractor, such as John Deere 5310 Gear Pro Trem IV in the similar HP range.
