Brand Kartar Tractors
No. Of Cylinders 4
HP Category 60 HP
Gear Box Synchromesh with Carraro Transmission
Brakes Multi Plate Oil Immersed Brakes

Key Specifications Of Kartar 5936

Tractor HP
Tractor HP
60 HP
Wheel Drive
Wheel Drive
2WD
Clutch
Clutch
Double
Gear Box
Gear Box
Synchromesh with Carraro Transmission
Steering
Steering
Power Steering
Lifting capacity
Lifting capacity
2200

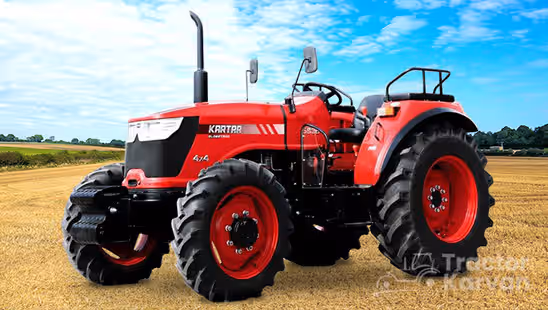

About Kartar 5936

Kartar 5936 tractor price in India 2023 is economical. The Kartar 5936 HP is 60 horsepower, and it has an engine capacity of 4160 cc.

Kartar Tractors is a renowned domestic brand in India. It manufactures a wide range of tractor models with the latest cutting-edge technology. The Kartar company deliver tractors of high quality with profitable outcome for Indian farmers. They have been in the Indian market for over 40 years. Presently, they are present in 23 countries.  

Kartar Tractors began producing tractors in 1975. They manufacture tractors with engine horsepower ranging from 40 – 90 HP. The Kartar tractors are one of the renowned tractor models in the industry. They have a robust built and suitable for high performance in vigorous and rough terrain. One of the best tractors offered by the company in the market is Kartar 5936.  

The Kartar 5936 tractor price is affordable. It is available on Tractorkarvan under the 60 HP category. Read sections below to learn more about the Kartar 5936 HP, features, specifications, benefits, and more. 

Kartar 5936 Tractor – Top Specifications 

Engine capacity

  • Equipped with a 60 HP engine, it is meant to deliver high performance.
  • The engine of this tractor comes with 4 water-cooled cylinders. 
  • The engine displacement offered is 4160 cc that gives a maximum torque of 232 Nm.
  • This tractor has an engine rated RPM of 2200.
  • The bore to stroke ratio of the engine is 105/120 mm. 
  • It has a dry type of air cleaner to prevent impurities from entering the engine. 
  • It has naturally aspirated, and direct injection based Kirloskar 4R 1040 engine. 

Transmission

  • It is equipped with a Synchromesh with Carraro Transmission gearbox for efficient transmission.
  • It comes with the double clutch option for smooth transmission.
  • The gear pattern consists of 12 forward and 12 reverse gears.
  • The maximum forward speed is 35.47 km per hour, whereas the maximum reverse speed is 30.15 km per hour.

Brakes & Steering

  • This tractor has oil-immersed brakes for effective braking. 
  • It comes with power steering for easy maneuvering.

Hydraulics

  • It has a maximum lifting capacity of 2200 kgs. 
  • The hydraulics system is automatic depth and draft control (ADDC) with Lift-O-Matic.
  • It can be easily attached to Cat-II farm implements. 

Tyre Size

  • It is a 2WD tractor, that is, transmission of power from the engine takes place in all four wheels.
  • The front tyres measure 7.50 X 16 and the rear tyres measure 16.9 X 28. 

Weight and Dimensions

  • The Kartar 5936 weight is 2410 kg. 

Kartar 5936 Additional Features 

Power Take Off (PTO): It has a 6-spline PTO Speed of 540 RPM.

Electrical System: It comprises battery of 100 Ah, 12V and 36 Amp. 

Accessories: It comprises of tool kit, draw bar, tow hook, top link, and bumper. 

Fuel Tank: It has a capacity of 65 litres which is enough for day-long work.

Other Features: It comes with 500 hours of service interval, heat guard and water separator. 

Kartar 5936 Tractor Price 2023 

The price of a tractor depends upon the features, horsepower (HP), and accessories offered. The Kartar 5936 tractor is a reliable tractor on all three fronts. As a result, the Kartar 5936 tractor price is affordable and reasonable. The Kartar 5936 tractor on road price is greater than the ex-showroom price. We have given the on-road price of this tractor on Tractorkarvan. You can also finance this tractor on EMI options on the portal.

You can even use compare tractors feature to compare the specifications and price of Kartar 5936 tractor with other similar HP Kartar tractors. 

Implements Compatible with Kartar 5936 Tractor 

A tractor compatibility to work with wide range of agricultural implements also make a tractor valuable. The Kartar 5936 tractor, like other tractors, is compatible with implements such as MB Plough, cultivator, and so on.

Why Choose Tractorkarvan for Kartar 5936 Tractor? 

Tractorkarvan is a one-stop digital platform for tractor of all major brands in India. Here you get detailed information on Kartar 5936 HP, Kartar 5936 tractor price, and more. Besides, you can get this tractor on EMIs on the website and from a Kartar tractor dealer near you. Visit Tractorkarvan now to get the best deal on all models of Kartar tractors, including Kartar 5936.

Read More

Kartar 5936 Engine

No. Of Cylinders 4
HP Category 60 HP
Engine Type Kirloskar 4R 1040, Naturally aspirated, Direct Injection
Engine Rated RPM 2200 RPM
Max Torque 232 Nm
Capacity 4160 CC
Air Filter Dry Type
Cooling System Liquid cooled
Fuel Type Diesel
Bore / Stroke 105/120 mm

Kartar 5936 Transmission

Clutch Double
Gear Box Synchromesh with Carraro Transmission
Gear Speed 12 Forward + 12 Reverse
Forward Speed 1.72-35.47 km/h
Reverse Speed 1.46-30.15 km/h
Brakes Multi Plate Oil Immersed Brakes

Kartar 5936 Steering

Type Power Steering

Kartar 5936 Power Take Off

PTO Speed 540 RPM/ERPM, GPTO, MRPTO

Kartar 5936 Fuel Capacity

Capacity 65 Litres

Kartar 5936 Hydraulics

Lifting capacity 2200 kg
3 Point Linkage CAT-II
Hydraulics Controls ADDC with Lift-O-Matic Button

Kartar 5936 Tyre Size

Wheel Drive 2WD
Front 7.50 X 16
Rear 16.9 X 28

Kartar 5936 Dimensions And Weight

Total Weight 2410 kg

Kartar 5936 Electrical

Battery 100 Ah, 12 V
Alternator 36 Amp.

Kartar 5936 Other Information

Accessories Tool Kit, Draw Bar, Tow Hook, Top link, Bumper.
Additional Features 500 Hours service interval, Heat guard, LED Indicator, Water Separator, ROPS & Canopy (Optional)
