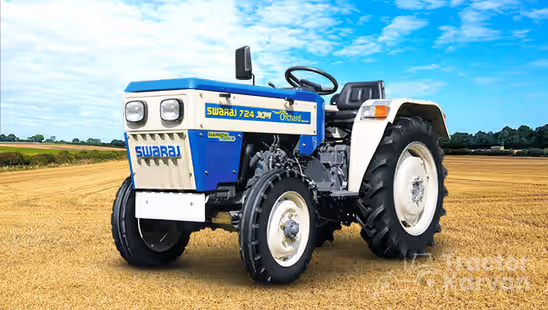

Swaraj 724 XM Orchard NT

Brand Swaraj Tractors
Series XM Series Tractors
No. Of Cylinders 2
HP Category 25 - 30 HP
PTO HP 21
Brakes Oil Immersed Multi Disc Brakes


Key Specifications of Swaraj 724 XM Orchard NT

Tractor HP
Tractor HP
25 - 30 HP
Wheel Drive
Wheel Drive
2WD
Clutch
Clutch
Single, Dry Friction Plate (Diaphragm Type)
Steering
Steering
Power Steering
Lifting capacity
Lifting capacity
1000

About Swaraj 724 XM Orchard NT

Swaraj 724 XM Orchard price in India ranges from INR 4.71 lakhs* to INR 4.84 lakhs*. Swaraj 724 XM Orchard NT HP ranges between 25 to 30. Thus, this tractor can operate big implements and manage heavy tasks.

One of its famous models from the Swaraj XM series is the Swaraj 724 XM Orchard NT. It is one of the best Swaraj mini tractors in the Indian market, ideal for orchards and small farmlands. Swaraj 724 XM Orchard HP range belongs to tractors under 30 horsepower.

Moreover, the Swaraj mini tractor 30 HP price is economical, making it one of the best tractors under 5 lakhs. Go through the following sections to learn about this model in detail, such as the Swaraj 724 XM Orchard price, specifications, benefits, warranty, and more.

Swaraj 724 XM Orchard NT Top Specifications

The most important feature of Swaraj 724 XM Orchard NT is the affordable Swaraj Orchard tractor price. Apart from that, it comes with many excellent features that are discussed below:

Engine & Performance

  • The Swaraj 724 HP ranges between 25 to 30. Its engine-rated RPM is 1800 RPM. Swaraj 724 XM Orchard engine capacity is 1824 cc. These specifications allow the tractor to produce sufficient power output to carry out orchard and inter-cultivation operations.
  • This is equipped with a dry-type dual-element air filter with a dust unloader. It not only improves the engine life but is also easy to service.
  • The cooling system provided in this model is liquid-cooled with no loss tank. It improves the engine life by preventing overheating of its components.

Transmission

  • The model features a single dry friction plate (diaphragm type) clutch. Due to this, the clutch does not demand high maintenance and can be repaired easily.
  • Swaraj 724 XM Orchard NT comes with 6 Forward + 2 Reverse gears. These gear speeds allow the engine to operate at an ideal speed to increase fuel efficiency.

Power Take-Off (PTO)

  • It comes with a 540 PTO RPM, which is appropriate for a mini tractor.
  • This PTO speed is fit for PTO-operated equipment like rotavators and mist blowers.

Hydraulics

  • Swaraj 724 XM Orchard has a lifting capacity of 1000 kg. This model can work with the following tractor implements that are compatible with mini tractors: Tractor Trailer.
  • It is equipped with a 3-point linkage that can easily pin Category I and Category II type implements.
  • This model features Live hydraulics with position, automatic draft and mix control. Using these controls, the operator can keep lower links at the required height while maintaining a uniform draft.

Brakes & Steering

  • Swaraj 724 XM Orchard is equipped with oil-immersed disc brakes. These brakes ensure trouble-free operation as there is less brake fade.
  • This model comes with power steering that offers smooth handling even in rugged terrains. Also, steering effort is reduced to enhance operator comfort.

Weight & Dimensions

  • Swaraj 724 XM Orchard has a total weight of 1495 kg. Along with a wheelbase of 1550 mm, the weight makes it a balanced tractor during transportation and agricultural work.
  • The overall length and width of the vehicle are 2900 mm and 1092 mm, respectively. The dimensions of Swaraj 724 XM Orchard allow it to operate in small fields.
  • This 724 Swaraj tractor has a ground clearance of 220 mm. Its ground clearance helps the tractor to be used in inter-cultivation operations.

Wheel Drive & Tyres

  • Swaraj 724 XM Orchard comes in a 2WD variant. Thus, this model can be easily handled and has a small turning radius, which is ideal for orchards and vineyards.
  • The model’s front tyres measure 5 X 15, and the rear tyres measure 9.50 X 24. These tractor tyres offer proper traction and prevent slippage during agricultural operations.

Swaraj 724 XM Orchard NT Unique Benefits

  • The electrical system of this model runs with a 12 V, 75 Ah battery power. This electrical system is enough to run its various electrical instruments.
  • This model comes with a deluxe driver seat that has better suspension. Thus, the operator will not feel drained after long hours of operation.
  • This Swaraj model comes equipped with an adjustable horizontal and vertical side draft silencer. This silencer is perfect for orchards as it does not damage crops.
  • Another key feature of this tractor is an adjustable check chain. The primary of this check chain is to control the movement of implements so that crops do not get damaged.

Swaraj 724 XM Orchard NT Warranty

The company provides 2-year or 2000-hour warranty on Swaraj 724 XM Orchard NT.

Swaraj 724 XM Orchard Price in India 2024

This Swaraj 30 HP tractor price ranges from INR 4.71 lakhs* to INR 4.84 lakhs*. This model is available at an easy monthly EMI of INR 10,462.

The Swaraj 30 HP tractor price varies across states of India. For instance, Swaraj 724 price in Haryana will be different from that in Maharashtra, Uttar Pradesh, or Jharkhand.

Additionally, users may also compare the Swaraj 724 mini tractor price and specifications with different Swaraj models in a similar HP range using the Compare Tractor feature. Examples of such models include Swaraj 724 XM and Swaraj 724 FE 4WD.

Why choose Tractorkarvan for Swaraj 724 XM Orchard NT?

Tractorkarvan is a well-known platform that assists farmers in finding the best tractors for their needs and budgets. We have a large selection of tractors in our inventory, from the latest and new Swaraj models to second-hand Swaraj tractors. The users can easily get the list of Swaraj tractor dealers on Tractorkarvan if they wish to buy a new Swaraj tractor.

We also provide rapid and simple tractor loan processing to farmers who want to buy their favourite farm vehicle. Explore tractor videos on Tractorkarvan to learn more about your desired model.

Read More

Swaraj 724 XM Orchard NT Engine

No. Of Cylinders 2
HP Category 25 - 30 HP
Engine Type RV-2 XM+ 3A, 4 Stroke, Direct Injection
Engine Rated RPM 1800 RPM
Capacity cc 1823 CC
Air Filter Dry type , Dual element with Dust Unloader
Cooling System Liquid Cooled
Fuel Type Diesel
Bore / Stroke 100 / 116 mm
Emission Standard Bharat Trem III A

Swaraj 724 XM Orchard NT Transmission

Clutch Single, Dry Friction Plate (Diaphragm Type)
Gear Speed 6 Forward + 2 Reverse
Gear Lever Position Centre Shift
Forward Speed 2.20 to 23.30 km/h
Reverse Speed 2.20 to 8.70 km/h
Brakes Oil Immersed Multi Disc Brakes

Swaraj 724 XM Orchard NT Steering

Type Power Steering

Swaraj 724 XM Orchard NT Power Take Off

PTO HP 21 HP
PTO Speed 540 RPM

Swaraj 724 XM Orchard NT Hydraulics

Lifting capacity 1000 kg
3 Point Linkage CAT- I/II
Hydraulics Controls ADDC

Swaraj 724 XM Orchard NT Tyre Size

Wheel Drive 2WD
Front 5.00 X 15
Rear 9.50 X 24

Swaraj 724 XM Orchard NT Dimensions And Weight

Total Weight 1495 kg
Wheel Base 1550 mm
Overall Length 2900 mm
Overall Width 1092 mm
Ground Clearance 220 mm

Swaraj 724 XM Orchard NT Electrical

Battery 12 V, 75 Ah

Swaraj 724 XM Orchard NT Other Information

Warranty 2 Year/ 2000 Hours
Instrument Cluster Analog
Driver Seat Deluxe Driver Seat with Better Suspension
Accessories Tools, Bumper, Ballast Weight, Top Link, Canopy, Drawbar, Hitch
Additional Features Adjustable for Check Chain, Side Draft Silencer

Swaraj 724 XM Orchard NT Variants

There are 3 Variants of Swaraj 724 XM Orchard NT available on Tractorkarvan with complete specification and prices.

TractorKarvan Take On Swaraj 724 XM Orchard NT

Good Things
  • Feature-rich: Offers a host of features to ensure better productivity, safety and comfort.
  • Hydraulics: Position, automatic draft and mix control ensure uniform draft and protects implements against damage.
  • Inter-Cultural Tasks: Perfect for inter-cultural farming activities like weeding and spraying to take care of crops after their plantation.
Could be Better
  • For increased comfort and easier reach, it could have offered a side shift gear lever.
  • Bharat Trem III A is an older emission standard. Bharat Stage TREM IV is more eco-friendly.

Swaraj 724 XM Orchard NT Verdict by TractorKarvan

Swaraj 724 XM Orchard NT is a perfect tractor to perform inter-cultivation activities such as spraying and weeding. It has a powerful yet fuel-efficient engine that will save money for farmers in the long run. Also, proper care has been taken about the safety and comfort of operators with features like oil-immersed brakes, separate steering oil tank and power steering. A range of tractor implements can be used with Swaraj 724 XM Orchard NT is packed with features to allow farmers to conduct farming efficiently. This model is worth consideration in the mini tractor segment.
