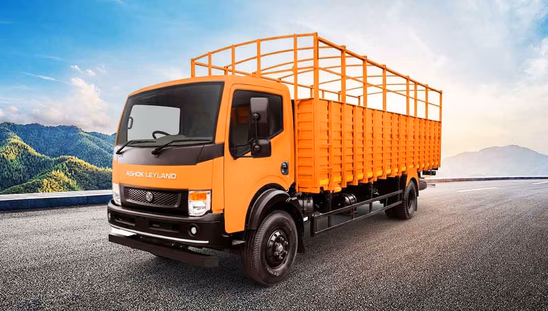

The Ashok Leyland Partner Super 914 truck comes with 6 wheels and is available in 8 variants. It has a GVW of 9150 Kg. Its engine produces 104 KW of power . It has a wheelbase of 3425 - 4900 mm.
| No. Of Cylinders | 4 Cylinder |
| Max Power | 104 KW |
| Engine Rated RPM | 2750 RPM |
| Emission Norms | BS VI |
| Max Torque | 360 Nm |
| Clutch | Diaphragm, Push type, Hydraulic actuated |
| Gear Box | Overdrive, Cable type CSO |
| Gear Speed | 6 Speed |
| Steering Type | Hydraulic Assisted Power Steering |
| Capacity | 185 Litres |
| DEF Tank Capacity | 20 Litres |

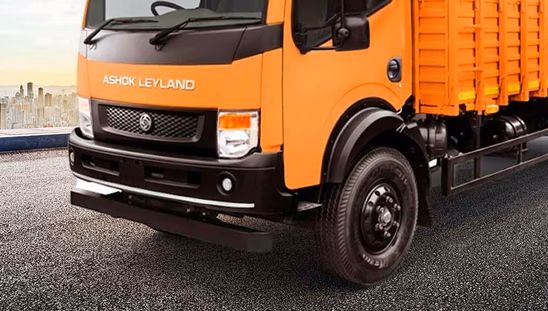

| Rear Tyre | 7.50 x 16-16 PR-7.5R16 - 16PR |
| Front Tyre | 7.50 x 16-16 PR-7.5R16 - 16PR |
| Turning Radius | 8.75 m |
| Wheel Base | 4900 mm |
| GVW | 9150 Kg |
| Loading Length | 6706 mm |
| Loading Width | 2074 mm |
| Loading Height | 1614 mm |
| Brakes Type | Full air - dual line brakes, parking brakes on rear only |
| Front Suspension | Parabolic springs with shock absorber |
| Rear Suspension | Semi-elliptic multileaf with helper springs |
| Front Axle | Forged I section - Reverse Elliot type |
| Rear Axle | Fully-floating single speed rear axle |
| Cabin Type | Day Cabin |
| Tiltable Cabin | Yes |
| Battery | 12 V, 75 Ah |
| Alternator | 70 A |
