BharatBenz 1917R 5100 CBC Specification

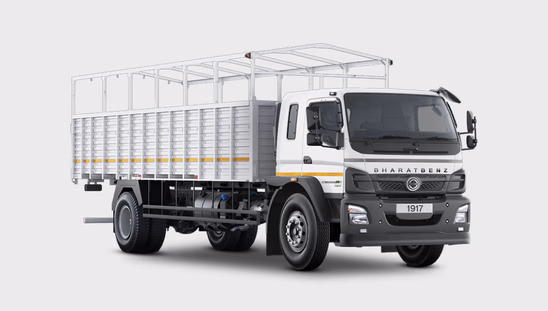

BharatBenz 1917R 5100 CBC
₹24.12 -
₹28.30 Lakh*
BharatBenz 1917R 5100 CBC comes at a starting price of Rs. 2412000 (Ex-Showroom*) in India. This popular truck is widely used for transporting heavy goods and materials across long distances. BharatBenz 1917R 5100 CBC offers a mileage of 6.5 kmpl.
The engine type of BharatBenz 1917R 5100 CBC is 4D34i, which allows it to generate a maximum power output of 125 kW. This truck generates the maximum power output at 2500 ERPM. it produces a maximum torque of 520 Nm, making the truck suitable for heavy-duty tasks.
The clutch offered in this truck is Single Dry Plate, Hydraulic Actuated Its gearbox type is G85, Mechanical, Synchromesh Gears. This truck features 6 Forward + 1 Reverse gear speeds. The steering type in BharatBenz 1917R 5100 CBC is Hydraulic Power Assisted.
The mileage of this BharatBenz 1917R 5100 CBC truck is 6.5 kmpl. The fuel type of this truck variant is Diesel. It offers a fuel tank capacity of 215 / 200 litres. The DEF tank capacity is 43/36 litres.
The loading length of the truck is mm.
The brakes type of this truck is Pneumatic, which ensure reliable braking during emergencies. Its front suspension includes Multileaf Spring. The rear suspension of the truck includes Multileaf Spring.
The total number of tyres in BharatBenz 1917R 5100 CBC is 6. The size of its front tyres is 295/90R209,295/80R22.5. The rear tyre is available in the size of 295/90R209,295/80R22.5.
The wheelbase of BharatBenz 1917R 5100 CBC is 5100 mm. Its ground clearance is 275 mm. This truck has a total length of 8600 mm. Its width is 2457 mm. The overall height of this truck is 2600 mm.
| No. Of Cylinders | 4 Cylinder |
| Max Power | 125 KW |
| Capacity | 3900 CC |
| Engine Rated RPM | 2500 RPM |
| Emission Norms | BS 6 - OBD-2 |
| Max Torque | 520 Nm |
| Mileage | 6.5 Kmpl |
| Gradeability | 21.2 - 23.6 % |
| Clutch | Single Dry Plate, Hydraulic Actuated |
| Gear Box | G85, Mechanical, Synchromesh Gears |
| Gear Speed | 6 Forward + 1 Reverse |
| Steering Type | Hydraulic Power Assisted |
| Differential Lock | No |
| Capacity | 215 / 200 Litres |
| DEF Tank Capacity | 43/36 Litres |
| Rear Tyre | 295/90R209,295/80R22.5 |
| Front Tyre | 295/90R209,295/80R22.5 |
| Overall Length | 8600 mm |
| Overall Width | 2457 mm |
| Overall Height | 2600 mm |
| Ground Clearance | 275 mm |
| Turning Radius | 8.65 m |
| Wheel Base | 5100 mm |
| GVW | 18500 Kg |
| Brakes Type | Pneumatic |
| Front Suspension | Multileaf Spring |
| Rear Suspension | Multileaf Spring |
| ABS | Yes |
| Parking Brakes | Spring Actuated with Hand Brake Valve @ Cab |
| Front Axle | IF 7.0 |
| Rear Axle | MS 145 |
| Regenerative Braking | No |
| Air Conditioning | No |
| Cabin Type | Sleeper Cabin |
| Battery | 24 V, 75Ah/100Ah |
| Warranty | 3 Years / 300000 Km |
You can find the variants of BharatBenz 1917R available on Tractorkarvan with complete specification & prices.
