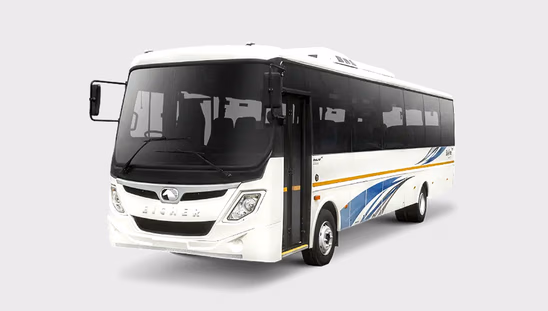

Eicher Skyline Pro Next 3009 H Specification
The price of Eicher Skyline Pro Next 3009 H can fit various budgets.This Eicher bus is best suited for urban transportation, providing the best combination of comfort and convenience to passengers. The seating capacity of this bus variant is 52+ D.
Eicher Skyline Pro Next 3009 H is equipped with a E474 engine. This Eicher bus has a 3770 CC engine. The power output delivered by this bus is 120 kW. It generates a maximum torque of 400 Nm to handle heavy load conditions.
Its steering type is Power Steering steering for easy turning and manoeuvring.
The mileage of Eicher Skyline Pro Next 3009 H ensures good fuel cost savings. The fuel type used in this commercial vehicle is Diesel. It comes with a 100 litre fuel tank, which ensures longer, uninterrupted operations. The DEF tank capacity of this Eicher bus is 27 litres.
The Gross Vehicle Weight (GVW) of Eicher Skyline Pro Next 3009 H is 8890 kg, which offers safety and transportation efficiency.
The brakes type of Eicher Skyline Pro Next 3009 H is Dual circuit 'S' cam full air brakes, which provides reliable braking performance. Its front suspension type is Parabolic with anti-roll bar. The rear suspension type of this bus is Parabolic.
The total number of tyres in this bus is 6 tyres. Its tyre type is Tubeless for more durability.
The total wheelbase of Eicher Skyline Pro Next 3009 H is 4320 mm. The length of the bus is 8957 mm. Its width is 2350 mm. Lastly, the overall height of this Eicher bus is 2893 mm.
| Max Power | 120 KW |
| Capacity | 3770 CC |
| Engine Rated RPM | 2600 RPM |
| Max Torque | 400 Nm |
| Steering Type | Power Steering |
| Capacity | 100 Litres |
| DEF Tank Capacity | 27 Litres |
| Tyre Type | Tubeless |
| Rear Tyre | 235/75 R17 |
| Front Tyre | 235/75 R17 |
| Overall Length | 8957 mm |
| Overall Width | 2350 mm |
| Overall Height | 2893 mm |
| Turning Radius | 7.8 m |
| Wheel Base | 4320 mm |
| GVW | 8890 Kg |
| Front Overhang | 2045 mm |
| Front Overhang | 3134 mm |
| Brakes Type | Dual circuit 'S' cam full air brakes |
| Front Suspension | Parabolic with anti-roll bar |
| Rear Suspension | Parabolic |
| Seating Capacity | 52+ D |
| Air Conditioning | No |
| Battery | 12V 130Ah |
| Alternator | 110 A |
