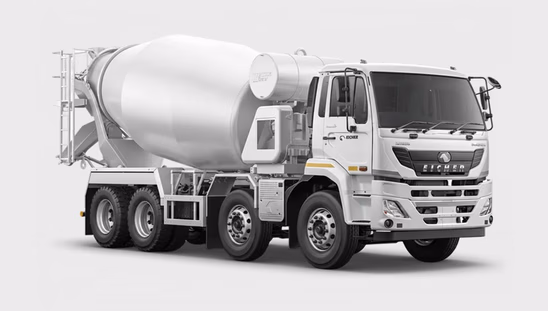

Eicher Pro 6035TM 5285 9CuM Specification
Eicher Pro 6035TM 5285 9CuM
₹54.00 -
₹54.00 Lakh*
The price of Eicher Pro 6035TM 5285 9CuM starts at Rs. 5400000 (Ex-Showroom*) in India. With a torque output of 1000 Nm, it delivers superior load-handling capabilities. It features a drum size of 9 cubic meters to transport large quantities of concrete. This Eicher transit mixer is an ideal solution to transport ready-mix concrete to construction sites.
Eicher Pro 6035TM 5285 9CuM has a VEDX8 engine. This transit mixer generates a power output of 194 kW, which not only moves the vehicle but also powers the mixer drum. Its maximum power is delivered at 2200 ERPM. It delivers a peak torque of 1000 Nm, which provides sufficient pulling power for heavy loads. This commercial vehicle has a gradeability of 39% that allows it to run on steep surfaces.
Its clutch type is Pull type , Single Dry Plate. The gearbox type for Eicher Pro 6035TM 5285 9CuM is ET140 S9, 8F+1C+1R, ensuring effective power transmission. This transit mixer features 8F+1C+1R gear speeds. The steering type of this commercial vehicle is Power Steering, which offers easy manoeuvrability on roads.
The mileage of Eicher Pro 6035TM 5285 9CuM is 2.5 - 3.5 kmpl. This transit mixer runs on Diesel. It can cover larger distances with a fuel tank capacity of 220 litres. The DEF tank capacity of the transit mixer is 33 litres.
Eicher Pro 6035TM 5285 9CuM has a Gross Vehicle Weight (GVW) of 35000 kg, which enables it to carry heavy loads.
v2/commercialcat.tmdetail19a The rear suspension type is noted to be Bogie Suspension.
The drum size of Eicher Pro 6035TM 5285 9CuM is 9 cubic meters, enabling safe transport of large volumes of ready-mix concrete to a construction site.
The cabin type of this transit mixer is HVAC day cabin.
Eicher Pro 6035TM 5285 9CuM has a total of 12 tyres.
Eicher Pro 6035TM 5285 9CuM has a wheelbase of 5285 mm. Its ground clearance is 252 mm, allowing it to easily run over uneven terrain.
| Max Power | 194 KW |
| Engine Rated RPM | 2200 RPM |
| Emission Norms | BS-VI |
| Max Torque | 1000 Nm |
| Mileage | 2.5 - 3.5 Kmpl |
| Gradeability | 39 % |
| Clutch | Pull type , Single Dry Plate |
| Gear Box | ET140 S9, 8F+1C+1R |
| Gear Speed | 8F+1C+1R |
| Steering Type | Power Steering |
| Steering Adjustment | Tilt and Telecscopic |
| Differential Lock | Yes |
| Capacity | 220 Litres |
| DEF Tank Capacity | 33 Litres |
| Rear Tyre | 7.5 X 20 |
| Front Tyre | 7.5 X 20 |
| Ground Clearance | 252 mm |
| Turning Radius | 8.3 m |
| Wheel Base | 5285 mm |
| GVW | 35000 Kg |
| Drum Size | 9 Cu.m |
| Rear Suspension | Bogie Suspension |
| Front Axle | Forged reverse elloit type |
| Rear Axle | Single reduction tandem axle with interaxle lock |
| Anti-Roll Bar | Yes |
| Cabin Type | HVAC day cabin |
| Battery | 24V; 120AH |
