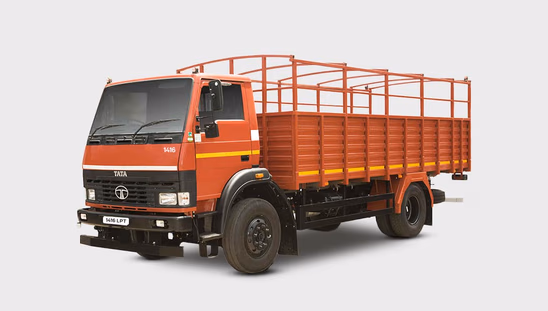

Tata LPT 1416 4920 HSD
From ₹24.33 Lakh*
EMI starts @ ₹160425/month
Tata LPT 1416 4920 HSD comes at a starting price of Rs. 2433000 (Ex-Showroom*) in India. This popular truck is widely used for transporting heavy goods and materials across long distances. The mileage of this Tata LPT 1416 4920 HSD truck ensures cost savings by maintaining good fuel efficiency.
The engine type of Tata LPT 1416 4920 HSD is Water Cooled Direct Injection Diesel Engine with intercooler, which allows it to generate a maximum power output of 118 kW. This truck generates the maximum power output at 2600 ERPM. Also,it produces a maximum torque of 475 Nm, making the truck suitable for heavy-duty tasks.
The clutch offered in this truck is Single Plate Dry Friction Type Its gearbox type is G550 Cable Shift Mechanism. This truck features 6 Forward + 1 Reverse gear speeds. The steering type in Tata LPT 1416 4920 HSD is Power Steering.
The mileage of this Tata LPT 1416 4920 HSD truck ensures cost savings by maintaining good fuel efficiency. The fuel type of this truck variant is Diesel. It offers a fuel tank capacity of 160 litres.
The loading length and width of the truck are 6801 mm and 2286 mm, respectively. The loading height is noted to be 1835 mm.
Its front suspension includes Parabolic Suspension with rubber bush and hydraulic double acting telescoping shock absorbers. The rear suspension of the truck includes Semi Elliptical Leaf Spring with Aux Spring.
The total number of tyres in Tata LPT 1416 4920 HSD is 6. The size of its front tyres is 8.25R20 - 16 PR. The rear tyre is available in the size of 8.25R20 - 16 PR.
The wheelbase of Tata LPT 1416 4920 HSD is 4920 mm. Its ground clearance is 225 mm. This truck has a total length of 8950 mm. Its width is 2380 mm. The overall height of this truck is 2700 mm.
| No. Of Cylinders | 4 Cylinder |
| Max Power | 118 KW |
| Capacity | 3300 CC |
| Engine Rated RPM | 2600 RPM |
| Emission Norms | NG BS6 Engine |
| Max Torque | 475 Nm |
| Fuel Pump Type | Inline |
| Gradeability | 27 % |
| Clutch | Single Plate Dry Friction Type |
| Gear Box | G550 Cable Shift Mechanism |
| Gear Speed | 6 Forward + 1 Reverse |
| Steering Type | Power Steering |
| Steering Adjustment | Tilt and telescopic |
| Capacity | 160 Litres |
| Rear Tyre | 8.25R20 - 16 PR |
| Front Tyre | 8.25R20 - 16 PR |
| Overall Length | 8950 mm |
| Overall Width | 2380 mm |
| Overall Height | 2700 mm |
| Ground Clearance | 225 mm |
| Turning Radius | 9.5 m |
| Wheel Base | 4920 mm |
| GVW | 14250 Kg |
| Loading Length | 6801 mm |
| Loading Width | 2286 mm |
| Loading Height | 1835 mm |
| FAW | 4920 KG |
| RAW | 9330 KG |
| Front Suspension | Parabolic Suspension with rubber bush and hydraulic double acting telescoping shock absorbers |
| Rear Suspension | Semi Elliptical Leaf Spring with Aux Spring |
| Rear Axle | TATAT RA 1109R fully Floating Benjo Axle |
| Cabin Type | Day Cabin |
| Battery | 12 V, 100Ah |
| Warranty | 3 Years / 300000 Km |
| Service Interval | 1 Year/ 300000 |
You can find the variants of Tata LPT 1416 available on Tractorkarvan with complete specification & prices.
