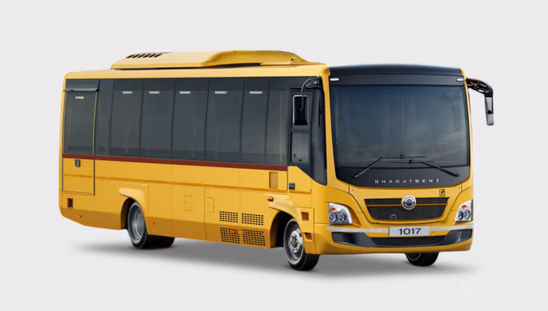

BharatBenz Staff 1017 5300 Non AC 49 Seater Specification
The price of BharatBenz Staff 1017 5300 Non AC 49 Seater can fit various budgets.This BharatBenz bus is best suited for urban transportation, providing the best combination of comfort and convenience to passengers. The seating capacity of this bus variant is 49 + D.
BharatBenz Staff 1017 5300 Non AC 49 Seater is equipped with a 4D34i engine. This BharatBenz bus has a 3907 CC engine. The power output delivered by this bus is 125 kW. It generates a maximum torque of 520 Nm to handle heavy load conditions.
The bus features a Organic, Single dry plate with Hydro Pneumatic Clutch Booster clutch. For smoother gear shifts, it comes with a G58, Improved 6 Speed Mechanical, Synchromesh Gears gearbox. The gear speeds include 6 Speed gears. Its steering type is Power Steering , adjustable and titltable steering for easy turning and manoeuvring.
The mileage of BharatBenz Staff 1017 5300 Non AC 49 Seater ensures good fuel cost savings. The fuel type used in this commercial vehicle is डीज़ल. It comes with a 171 litre fuel tank, which ensures longer, uninterrupted operations. The DEF tank capacity of this BharatBenz bus is 43/36 litres.
The Gross Vehicle Weight (GVW) of BharatBenz Staff 1017 5300 Non AC 49 Seater is 10600 kg, which offers safety and transportation efficiency.
Its front suspension type is Parabolic Susupenion with anti roll bar and double acting telecscopic shock absorber.
The total number of tyres in this bus is 6 tyres. Its tyre type is Tubless for more durability.
The total wheelbase of BharatBenz Staff 1017 5300 Non AC 49 Seater is 5300 mm. Its ground clearance is 192 mm. The length of the bus is 9815 mm. Its width is 2350 mm. Lastly, the overall height of this BharatBenz bus is 2950 mm.
| सिलिंडर की संख्या | 4 Cylinder |
| Max Power | 125 KW |
| Capacity | 3907 CC |
| इंजन रेटेड आरपीएम | 2500 RPM |
| Emission Norms | BS-VI - OBD-2 |
| अधिकतम टॉर्क | 520 Nm |
| क्लच | Organic, Single dry plate with Hydro Pneumatic Clutch Booster |
| गियर बॉक्स | G58, Improved 6 Speed Mechanical, Synchromesh Gears |
| गियर स्पीड | 6 Speed |
| Steering Type | Power Steering , adjustable and titltable |
| कैपेसिटी | 171 Litres |
| DEF Tank Capacity | 43/36 Litres |
| Tyre Type | Tubless |
| Rear Tyre | 235/75 R 17.5 |
| Front Tyre | 235/75 R 17.5 |
| कुल लंबाई | 9815 mm |
| कुल चौड़ाई | 2350 mm |
| Overall Height | 2950 mm |
| ग्राउंड क्लियरेंस | 192 mm |
| व्हील बेस | 5300 mm |
| GVW | 10600 Kg |
| Front Overhang | 1335 mm |
| Front Overhang | 3180 mm |
| Front Suspension | Parabolic Susupenion with anti roll bar and double acting telecscopic shock absorber |
| Front Axle | IF3.6 |
| Rear Axle | DANA S 130 |
| Anti-Roll Bar | Yes |
| Seating Capacity | 49 + D |
| Air Conditioning | No |
| Floor Type | Marine grade plywood , Anti-Skid vinyl top layer |
| Battery | 24 V ,120 Ah |
You can find the variants of BharatBenz Staff 1017 available on Tractorkarvan with complete specification & prices.
