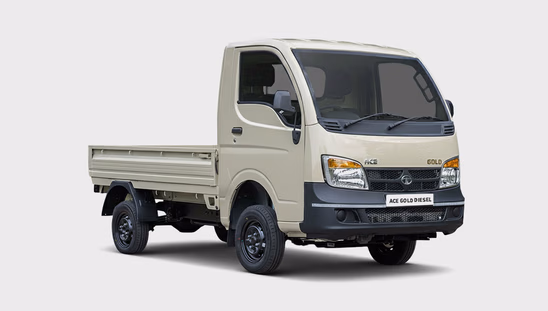

Tata ACE Gold CLB Diesel
From ₹6.69 लाख*
EMI starts @ ₹44112/month
The price of Tata ACE Gold CLB Diesel starts at Rs. 669000 (Ex-Showroom*) in India. This mini truck is preferred for intra-city low tonnage cargo delivery or last-mile delivery. Tata ACE Gold CLB Diesel has a Gross Vehicle Weight (GVW) of 1835 kg.
Tata ACE Gold CLB Diesel delivers a power output of 16.17 kW. This power is produced at an engine-rated speed of 3600 RPM. This mini truck generates a maximum torque of 55 Nm. Its engine type is DI TCIC.
Its gearbox type is GBS G65-5\6.31. The clutch type is noted to be Single plate dry friction diaphragm. The maximum speed of the mini truck is 65 kmph.
The mileage of Tata ACE Gold CLB Diesel is 22 kmpl. This mini truck runs on डीज़ल. It has a fuel tank capacity of 30 litres. The DEF tank capacity is noted to be 10.5 litres.
The GVW of Tata ACE Gold CLB Diesel is 1835 kg. Its payload capacity is 900 kg that allows the mini truck to transport more goods on a single trip. The loading length of the mini truck is 2100 mm.
The brakes type of this mini truck is Disc Drum. The front suspension type is Rigid Axle with Parabolic Leaf Spring. The rear suspension type of the mini truck is Live Axle with semi-elliptical Leaf Spring.
The total number of tyres in this mini truck is 4. Its tyres are available in the size of 145 R12 LT 86/84 R 8PR.
The ground clearance is noted to be 160 mm. The length of the mini truck is 3800 mm. Its total width is 1500 mm. The overall height is 1845 mm.
| सिलिंडर की संख्या | 2 Cylinder |
| Max Power | 16.17 KW |
| Capacity | 700 CC |
| इंजन रेटेड आरपीएम | 3600 RPM |
| अधिकतम टॉर्क | 55 Nm |
| Mileage | 22 Kmpl |
| क्लच | Single plate dry friction diaphragm |
| गियर बॉक्स | GBS G65-5\6.31 |
| Max Speed | 65 Kmph |
| कैपेसिटी | 30 Litres |
| DEF Tank Capacity | 10.5 Litres |
| Tyre Size | 145 R12 LT 86/84 R 8PR |
| Tyre Type | Radial Tubeless |
| कुल लंबाई | 3800 mm |
| कुल चौड़ाई | 1500 mm |
| Overall Height | 1845 mm |
| ग्राउंड क्लियरेंस | 160 mm |
| GVW | 1835 Kg |
| Kerb Weight | 935 Kg |
| Loading Length | 2100 mm |
| Brakes Type | Disc Drum |
| Front Suspension | Rigid Axle with Parabolic Leaf Spring |
| Rear Suspension | Live Axle with semi-elliptical Leaf Spring |
| Warranty | 3 Year / 1 00 000 km |
