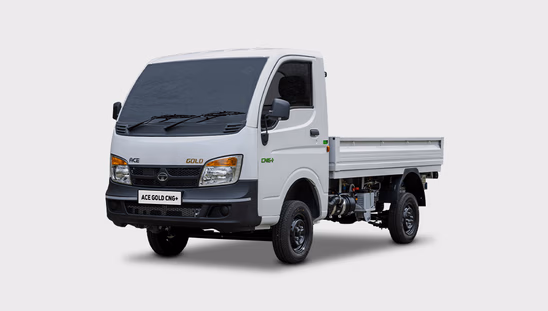

The price of Tata ACE Gold Plus CNG starts at Rs. 450000 (Ex-Showroom*) in India. This mini truck is preferred for intra-city low tonnage cargo delivery or last-mile delivery. Tata ACE Gold Plus CNG has a Gross Vehicle Weight (GVW) of 1630 kg.
Tata ACE Gold Plus CNG delivers a power output of 19.4 kW. This power is produced at an engine-rated speed of 4000 RPM. This mini truck generates a maximum torque of 51 Nm. Its engine type is 4 Stroke , Naturally Aspirated.
Its gearbox type is GBS 65- 5/5.6. The clutch type is noted to be Single plate dry friction diaphragm type. The maximum speed of the mini truck is 70 kmph. The steering type is Manual, which offers suitable directional control.
The mileage of Tata ACE Gold Plus CNG is 21.4 kmpl. This mini truck runs on CNG. It has a fuel tank capacity of 105 litres.
The GVW of Tata ACE Gold Plus CNG is 1630 kg. Its payload capacity is 615 kg that allows the mini truck to transport more goods on a single trip. The loading length of the mini truck is 2520 mm. Its loading width is 1490 mm. The loading height is 300 mm.
The brakes type of this mini truck is Disc Drum. The front suspension type is Rigid Axle with Parabolic Leaf Spring. The rear suspension type of the mini truck is Live Axle with semi-elliptical Leaf Spring.
The total number of tyres in this mini truck is 4. Its tyres are available in the size of 145/80 R12 LT 86/84 Q 8PR.
Tata ACE Gold Plus CNG has a wheelbase of 2250 mm. The ground clearance is noted to be 160 mm. The length of the mini truck is 4075 mm. Its total width is 1500 mm. The overall height is 1840 mm.
| No. Of Cylinders | 2 Cylinder |
| Max Power | 19.4 KW |
| Capacity | 694 CC |
| Engine Rated RPM | 4000 RPM |
| Max Torque | 51 Nm |
| Mileage | 21.4 Kmpl |
| Clutch | Single plate dry friction diaphragm type |
| Gear Box | GBS 65- 5/5.6 |
| Max Speed | 70 Kmph |
| Steering Type | Manual |
| Capacity | 105 Litres |
| Tyre Size | 145/80 R12 LT 86/84 Q 8PR |
| Tyre Type | Radial Tubeless |
| Overall Length | 4075 mm |
| Overall Width | 1500 mm |
| Overall Height | 1840 mm |
| Ground Clearance | 160 mm |
| Wheel Base | 2250 mm |
| GVW | 1630 Kg |
| Kerb Weight | 1015 Kg |
| Loading Length | 2520 mm |
| Loading Width | 1490 mm |
| Loading Height | 300 mm |
| Brakes Type | Disc Drum |
| Front Suspension | Rigid Axle with Parabolic Leaf Spring |
| Rear Suspension | Live Axle with semi-elliptical Leaf Spring |
| Seating Capacity | D+ 1 |
| Warranty | 3 years / 1 00000 Km |
You can find the variants of Tata ACE Gold available on Tractorkarvan with complete specification & prices.
No reviews for the Tata ACE Gold yet. Help others make informed decisions!
