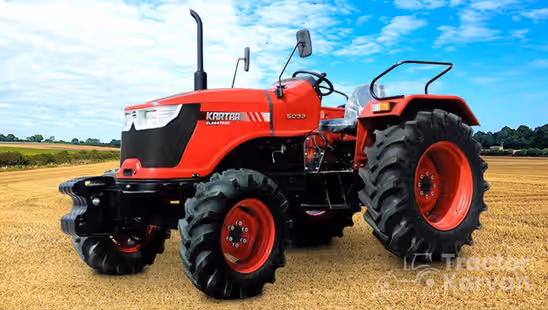

Kartar 5036

5 rating rating rating rating rating 3 Reviews Add Review
Brand Kartar Tractors
No. Of Cylinder 3
HP Category HP range 50
Gear Box Partial Synchromesh
Brakes Oil Immersed Brakes

Key Specifications of Kartar 5036

Tractor HP
Tractor HP
50 HP
Wheel Drive
Wheel Drive
2WD
Clutch
Clutch
Dual
Gear Box
Gear Box
Partial Synchromesh
Steering
Steering
Power Steering
Lifting capacity
Lifting capacity
1400 KG

About Kartar 5036

Kartar 5036 tractor price in India 2023 is economical. The Kartar 5036 HP is 50 horsepower, and it has an engine capacity of 3120 cc.

Kartar Tractors is a renowned domestic brand in India. It manufactures a wide range of tractor models with the latest cutting-edge technology. The Kartar company deliver tractors of high quality with a profitable outcome for Indian farmers. They have been in the Indian market for over 40 years. Presently, they are present in 23 countries.

Kartar Tractors began producing tractors in 1975. They manufacture tractors with engine horsepower ranging from 40 – 90 HP. The Kartar tractors are one of the renowned tractor models in the industry. They have a robust build and are suitable for high performance in vigorous and rough terrain. One of the best tractors offered by the company on the market is Kartar 5036.

The Kartar 5036 tractor price is affordable. It is available on Tractorkarvan under the 50 HP tractor category.

Read the sections below to learn more about the Kartar 5036 HP, its features, specifications, benefits, and more.

Kartar 5036 Tractor – Top Specifications

Engine and Performance

  • Equipped with a 50 HP engine, it has a naturally aspirated and direct injection based Kirloskar 3R 1040 engine. These features make it an advanced machine in its category aimed at delivering high performance at an affordable cost. Moreover, this power is generated at a maximum ERPM of 2200.
  • Additionally, it also comes with 3 water-cooled cylinders, which ensures smooth performance along with fuel efficiency for a longer period.
  • The engine displacement offered is 3120 cc. A big engine is synonymous with a larger engine capacity. As a result, this tractor generates higher torque for initial acceleration and higher power for heavy-duty farm tasks.
  • The bore-to-stroke ratio of the engine is 105/120 mm. A higher ratio is associated with higher torque, thus improving the tractor’s capability to do heavy work at farm. As a result, it can pull implements like cultivator and ripper.
  • It has a dry type of air cleaner to prevent impurities from entering the engine’s internal combustion. Additionally, the air filter is easy to clean and does not require regular maintenance and contributes to the increased life span of the engine.

Transmission

  • It is equipped with a partial constant mesh gearbox for efficient transmission. This indicates that the gearbox is a combination of sliding mesh and constant mesh gearboxes. As a result, the transmission system of this tractor is smoother and less complex.
  • It has a dual-clutch option for smooth transmission, where one clutch operates the tractor, and the other operates the implements attached to the tractor’s PTO.
  • The gear pattern consists of 8 forward and 8 reverse gears. This offers a wide range of advantages during commercial work, such as loading and dozing, where the forward speed matches the backward speed. For agricultural purposes also, this system offers an advantage during multiple operational activities such as using straw reapers.
  • The maximum forward speed is 32.66 km per hour, whereas the maximum reverse speed is 32.33 km per hour.

PTO (Power Take Off)

  • It has a Standard 540 PTO type, which means the tractor has a PTO speed of 540 RPM at the maximum recommended engine RPM. Thus, it can operate implements like Power Harrow, Flail Mower, and Cutter Mixer Feeder, among others.
  • It also achieves 540 RPM at economy mode using less power, thus making it fuel-efficient during operational activities.

Hydraulics

  • It has a maximum lifting capacity of 1400 kg. This ensures easy lifting of regular-use farm tractor implements such as Baler, and Tractor Trailer.
  • The hydraulics system is automatic depth and draft control (ADDC), which ensures consistent performance on uneven land. It also prevents implements’ overloading, protecting both soil and implement.
  • It can be easily attached to Cat-II farm implements, which is relatively better than category I implement.

Brakes & Steering

  • This tractor has oil-immersed brakes for effective braking, ensuring less heat during braking operation. This also prevents the wear and tear of the brakes and offers them an improved lifespan.
  • It comes with power steering for easy manoeuvring, thus ensuring that it can steer on tight corners easily without taking up much space. This also helps when working with heavy loads.

Tyre Size

  • It is a 2WD tractor; that is, the transmission of power from the engine takes place in the rear two wheels.
  • The front tyres measure 7.50 X 16, and the rear tyres measure 14.9 X 28. This configuration makes it a tractor with the necessary traction for work on the field.

Weight and Dimensions

  • The Kartar 5036 weight is 1990 kg, which ensures that the tractor remains stable during fieldwork.
  • The length and width are 3565 mm and 1728 mm, respectively. The ground clearance and the wheelbase of the tractor are 420 mm and 2010 mm, respectively. This allows the tractor to perform any operation on the field and all farming activities.

Kartar 5036 Tractor Price 2023

The price of a tractor depends upon the features, horsepower (HP), and accessories offered. The Kartar 5036 tractor is a reliable tractor on all three fronts. As a result, the Kartar 5036 tractor price is affordable and reasonable. The Kartar 5036 tractor on road price is greater than the ex-showroom price. We have given the on-road price of this tractor on Tractorkarvan. You can also finance this tractor on EMI options on the portal.

You can even use compare tractors feature to compare the specifications and price of the Kartar 5036 tractor with other similar HP Kartar tractors such as Kartar 4536 Plus and Kartar 5136.

Why Choose Tractorkarvan for Kartar 5036 Tractor?

Tractorkarvan is a one-stop digital platform for tractors of all major brands in India. Here you get detailed information on Kartar 5036 HP, Kartar 5036 tractor price, and more. Besides, you can get this tractor on EMIs on the website and from a Kartar tractor dealer near you. Visit Tractorkarvan now to get the best deal on all models of Kartar tractors, including Kartar 5036.

The website is always updated so that you are always aware of the newly released tractors. Visit Tractorkarvan today to know more.

Read More

Kartar 5036 Engine

No. Of Cylinder 3
HP Category HP range 50
Engine Type Kirloskar 3R 1040, Naturally aspirated, Direct Injection
Engine Rated RPM 2200 RPM
Capacity CC 3120 CC
Air Filter Dry Type
Cooling System Liquid cooled
Fuel Type Diesel
Bore / Stroke 105/120 MM

Kartar 5036 Transmission

Clutch Dual
Gear Box Partial Synchromesh
Gear Speed 8 Forward + 8 Reverse
Forward Speed 2.82-32.66 KM/H
Reverse Speed 2.79-32.33 KM/H
Brakes Oil Immersed Brakes

Kartar 5036 Steering

Type Power Steering

Kartar 5036 Power Take Off

PTO Speed 540 RPM, 540 ERPM

Kartar 5036 Fuel Capacity

Capacity 55 Litres

Kartar 5036 Hydraulics

Lifting Capacity 1400 KG
3 point Linkage CAT-II
Hydraulic Controls ADDC

Kartar 5036 Tyre Size

Wheel Drive 2WD
Front 7.50 X 16
Rear 14.9 X 28

Kartar 5036 Dimensions And Weight

Total Weight 1990 kg

Kartar 5036 Electrical

Battery 88 Ah, 12 V

Kartar 5036 Other Information

Accessories Tool kit, Drawbar, Tow Hook, Top Link, Bumper, LED fender tail lamp.
Additional Features 500 Hours service interval, Heat guard, Water Separator, ROPS & Canopy (Optional)

Kartar 5036 Variants

TractorKarvan Take On Kartar 5036

Good Things
  • Big Powerful Engine: It is a 50 HP tractor that has an engine capacity of 3120 cc, thus making it a powerful tractor for farming and haulage purposes.
  • Low Maintenance: The NA engine along with partial constant mesh gearbox ensures that maintenance cost is low.
  • Versatile: Haulage, ploughing, etc., operational activities can be easily achieved.
  • Fuel efficient: Its 3-cylinder engine and NA engine makes it a fuel-efficient tractor.
Could be Better
  • Instead of partial constant mesh, synchromesh could have been better.
  • The lifting capacity could have been more to make it a competitive tractor in similar HP range.

Kartar 5036 Verdict By TractorKarvan

Kartar 5036 tractor is loaded with features such as ADDC hydraulic system, 3 water-cooled cylinders, a direct injection based Kirloskar 3R 1040 engine, and several other features. It is suitable for all forms of farming activities and offers power for heavy-duty tasks. If you are looking for a tractor that can perform heavy-duty tasks without a hiccup, you can go with this tractor.

Product Review By TractorKarvan

3.8
Overall
4
Performance
4
Transmission
3.5
Hydraulics
4
Design
3.5
Ergonomics

Kartar 5036 User Reviews

rating star icon 5/5
overall
Based on 3 Reviews
5
Performance
5
Comfort
5
Value for Money
5
Style & Looks

All Reviews

rating rating rating rating rating
Saare kaam kam tel ki khapat se ho jate hai
Is tractor me sabh kuch top quality ka diya gaya hai. majboot tractor hai jo kisi bhi condition me stable rehta hai. driver ke araam ke liye isme power steering bhi hai. addc ki wajah se implement bhi badhiya performance dete hai. iski khooobi hai ki ye saare kaam kam tel ki khapat karke kar leta hai
1 month ago | Aran Thakur
Rating Parameters
rating star icon 5/5
Performance
rating star icon 5/5
Comfort
rating star icon 5/5
Value for Money
rating star icon 5/5
Style & Looks
Read More
rating rating rating rating rating
Rotavator cultivator smoothly kam karte hai
Tractor abhi bhi acha chal rha hai. koyi kharabi nahi aayi hai. mai ye tractor se saari kheti kar leta hu jaise gehun aur chawal ki fasal ke liye jameen ko tayyar karna. isme rotavator cultivator jaise upkaran smoothly kaam kar lete hai. isse mai khaad bhi khet me dal pata hu
1 month ago | Chetan Seervi
Rating Parameters
rating star icon 5/5
Performance
rating star icon 5/5
Comfort
rating star icon 5/5
Value for Money
rating star icon 5/5
Style & Looks
Read More
rating rating rating rating rating
Tractor damdaar hai aur maal dhulai ke liye badhiya hai
Mere pass Kartar ka ek damdaar tractor hai. Isme company ne 50 hp ka engine diya hai jo ki bahut acchi power deta hai. Mai iska istmaal jadatar trolley ke sath hi karta hu aur iska mileage kaafi accha hai. Mai isko 5 me se pure 5 star ki rating dunga.
3 months ago | Devi Sevak
Rating Parameters
rating star icon 5/5
Performance
rating star icon 5/5
Comfort
rating star icon 5/5
Value for Money
rating star icon 5/5
Style & Looks
Read More

Similar To Kartar 5036

Frequently Asked Questions on Kartar 5036

1. What is the engine power of Kartar 5036 tractor?

It comes with a 50 HP engine.

It has a fuel tank capacity of 55 litres.

The Kartar 5036 weight is 1990 kg.

You can purchase this Kartar tractor on easy EMIs at Tractorkarvan.

You can get the updated information on this tractor at Tractorkarvan.
