Brand Kartar Tractors
No. Of Cylinders 3
HP Category 50 HP
Gear Box Partial Constant Mesh
Brakes Oil Immersed Brakes

Key Specifications Of Kartar 5136 CR

Tractor HP
Tractor HP
50 HP
Wheel Drive
Wheel Drive
2WD
Clutch
Clutch
Dual
Gear Box
Gear Box
Partial Constant Mesh
Steering
Steering
Power Steering
Lifting capacity
Lifting Capacity
1800

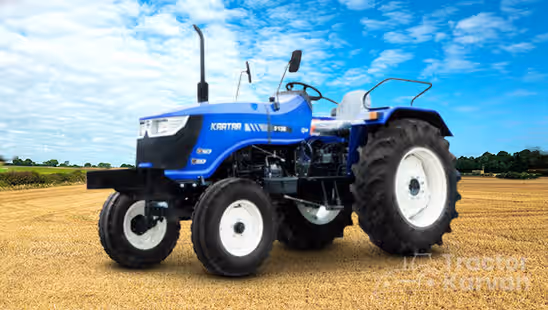

About Kartar 5136 CR

Kartar 5136 CR tractor price in India 2023 is economical. The Kartar 5136 CR HP is 50 horsepower, and it has an engine capacity of 3120 cc.

Kartar Tractors is a renowned domestic brand in India. It manufactures a wide range of tractor models with the latest cutting-edge technology. The Kartar company deliver tractors of high quality with profitable outcome for Indian farmers. They have been in the Indian market for over 40 years. Presently, they are present in 23 countries. 

Kartar Tractors began producing tractors in 1975. They manufacture tractors with engine horsepower ranging from 40 – 90 HP. The Kartar tractors are one of the renowned tractor models in the industry. They have a robust built and suitable for high performance in vigorous and rough terrain. One of the best tractors offered by the company in the market is Kartar 5136 CR.  

The Kartar 5136 CR tractor price is affordable. It is available on Tractorkarvan under the 50 HP tractor category. Read sections below to learn more about the Kartar 5136 CR HP, features, specifications, benefits, and more.

Kartar 5136 CR Tractor – Top Specifications 

Engine capacity

  • Equipped with 50 HP engine, it is meant to deliver high performance. A tractor with a 50 HP engine can often be fitted with a range of attachments and implements, such as cultivators, harrows, and seeders, which further increase its usefulness.
  • The engine of this tractor comes with 3 water-cooled cylinders. A tractor equipped with a 3 water-cooled cylinder engine can often provide better performance compared to air-cooled engines. The water-cooled engine can maintain a more consistent temperature, which can result in improved combustion efficiency and reduced engine wear. This can translate to better fuel efficiency, more power, and a longer lifespan for the tractor.
  • The engine displacement offered is 3120 cc. A tractor with a larger engine displacement, can provide more power to the tractor. With more power, the tractor can perform these tasks more efficiently, which can save time and effort, and increase productivity.
  • This tractor has an engine rated RPM of 2200, which can make a tractor more powerful, and suitable for use on both large and small farms.
  • The bore to stroke ratio of the engine is 105/120 mm. It can result in increased torque, which can be very beneficial for tractors that need to pull heavy loads or operate in tough terrain.
  • It has a dry type of air cleaner to prevent impurities from entering the engine. It can help protect the engine from damage and extend its lifespan.
  • It has naturally aspirated, and direct injection based Kirloskar 3R 1040 engine.

Transmission

  • It has dual clutch option for smooth transmission. The dual clutch comes equipped with two friction plates, enabling the clutch discs to operate independently. Consequently, the dual clutch enables faster and smoother shifting compared to single clutches.
  • It is equipped with a partial constant mesh gearbox for efficient transmission.
  • The gear pattern consists of 8 forward and 2 reverse gears.
  • The maximum forward speed is 33.27 km per hour, whereas the maximum reverse speed is 14.51 km per hour.

Brakes & Steering

  • This tractor has oil-immersed brakes for effective braking.  Oil-immersed brakes are renowned for their long-lasting durability. The brake components are enclosed in an oil bath, which aids in heat dissipation and minimizes wear and tear on the brake system.
  • It comes with power steering for easy manoeuvring.

Hydraulics

  • It has a maximum lifting capacity of 1800 kgs.
  • The hydraulics system is automatic depth and draft control (ADDC).  The ADDC system allows the tractor to automatically adjust the depth of an implement, such as a plough or cultivator, based on the soil conditions and the draft force required.
  • It can be easily attached to Cat-II farm implements.

Tyre Size

  • It is a 2WD tractor, that is, transmission of power from engine takes place in two wheels.
  • The front tyres measure 7.50 X 16 and the rear tyres measure 14.9 X 28.

Weight and Dimensions

  • The Kartar 5136 CR weight is 2105 kg. 

Kartar 5136 CR Additional Features

Power Take Off (PTO): It has a 6 spline PTO Speed of 540 rpm along with MRPTO.

Electrical System: It comprises a battery of 88 Ah, 12V and an alternator of 36 Amp.

Accessories: It comprises of tool kit, draw bar, tow hook, top link, and bumper. 

Fuel Tank: It has a capacity of 55 litres which is enough for day-long work.

Other Features: It comes with 500 hours of service interval, heat guard and water separator. 

Kartar 5136 CR Tractor Price 2023

The price of a tractor depends upon the features, horsepower (HP), and accessories offered. The Kartar 5136 CR tractor is a reliable tractor on all three fronts. As a result, the Kartar 5136 CR tractor price is affordable and reasonable. The Kartar 5136 CR tractor on road price is greater than the ex-showroom price. We have given the on-road price of this tractor on Tractorkarvan. You can also finance this tractor on EMI options on the portal.

You can even use compare tractors feature to compare the specifications and price of Kartar 5136 CR tractor with other similar HP Kartar tractors. 

Implements Compatible with Kartar 5136 CR Tractor

A tractor compatibility to work with wide range of agricultural implements also make a tractor valuable. The Kartar 5136 CR tractor, like other tractors, is compatible with implements such as MB Ploughcultivator, and so on.

Why Choose Tractorkarvan for Kartar 5136 CR Tractor?

Tractorkarvan is a one-stop digital platform for tractor of all major brands in India. Here you get detailed information on Kartar 5136 CR HP, Kartar 5136 CR tractor price, and more. Besides, you can get this tractor on EMIs on the website and from a Kartar tractor dealer near you. Visit Tractorkarvan now to get the best deal on all models of Kartar tractors, including Kartar 5136 CR.

Read More

Kartar 5136 CR Engine

No. Of Cylinders 3
HP Category 50 HP
Engine Type Kirloskar 3R 1040, Naturally aspirated, Direct Injection
Engine Rated RPM 2200 RPM
Capacity 3120 CC
Air Filter Dry Type
Cooling System Liquid cooled
Fuel Type Diesel
Bore / Stroke 105/120 mm

Kartar 5136 CR Transmission

Clutch Dual
Gear Box Partial Constant Mesh
Gear Speed 8 Forward + 2 Reverse
Forward Speed 2.63-33.27 km/h
Reverse Speed 3.63-14.51 km/h
Brakes Oil Immersed Brakes

Kartar 5136 CR Steering

Type Power Steering

Kartar 5136 CR Power Take Off

PTO Speed 540 RPM, MRPTO

Kartar 5136 CR Fuel Capacity

Capacity 55 Litres

Kartar 5136 CR Hydraulics

Lifting Capacity 1800 kg
3 Point Linkage CAT-II
Hydraulics Controls ADDC

Kartar 5136 CR Tyre Size

Wheel Drive 2WD
Front 7.50 X 16
Rear 14.9 X 28

Kartar 5136 CR Dimensions And Weight

Total Weight 2105 kg

Kartar 5136 CR Electrical

Battery 88 Ah, 12 V
Alternator 36 Amp.

Kartar 5136 CR Variants

There are 2 Variants of Kartar 5136 CR available on Tractorkarvan with complete specification and prices.

TractorKarvan Take On Kartar 5136 CR

Good Things
  • Bigger Front Tyre: Bigger front tyres can also help to distribute weight more evenly across the tractor, improving overall balance and stability.
  • Big Fuel Tank: It has a capacity of 55 litres which is enough for day-long work.
Could be Better
  • Wet-type air filters are typically more effective at filtering out small particles, and they can offer better overall filtration efficiency than dry-type filters.

Kartar 5136 CR Verdict

The Kartar 5136 CR is a versatile tractor that seamlessly combines comfort, efficiency, and power, making it suitable for various tasks such as tilling, sowing, and harvesting. Its hydraulic system enables it to effortlessly handle heavy equipment. Moreover, it is designed to offer exceptional fuel efficiency, which helps farmers save on fuel costs. The four-wheel drive capability of this model ensures remarkable stability and traction even on rough terrain. If you are in search of a reliable and efficient tractor, the Kartar 5136 CR is a compelling option to consider.

Product review by TractorKarvan

4.1
overall
4.1
Power & Performance
4
Transmission
4.2
PTO & Hydraulics
3.8
Design & Styling
4.2
Ergonomics

Kartar 5136 CR User Reviews

No Reviews found. Be the first one to review!
