Brand VST Shakti Tractors
No. Of Cylinders 3
HP Category 22 HP
PTO HP 18.8
Gear Box Sliding Mesh
Brakes Oil Immersed Multi Disc Brakes


Key Specifications Of VST Shakti MT 224 1D Ajai 4WD

Tractor HP
Tractor HP
22 HP
Wheel Drive
Wheel Drive
4WD
Clutch
Clutch
Single
Gear Box
Gear Box
Sliding Mesh
Steering
Steering
Mechanical
Lifting capacity
Lifting capacity
500

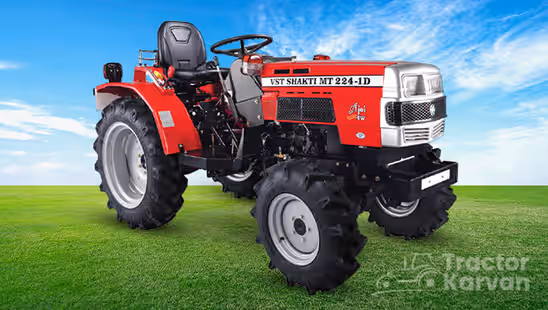

About VST Shakti MT 224 1D Ajai 4WD

The VST Shakti MT 224 1D Ajai 4WD price in India is budget friendly. The power output of VST Shakti MT 224 1D 4WD is 22 HP.

The VST Shakti MT 224 1D is a 4WD tractor manufactured by the VST brand. The VST Shakti MT 224 1D Ajai 4WD is undoubtedly one of the most popular mini tractor models in the Indian market. The incredible features, powerful engine, and additional benefits make this one of the best models in the tractors under 30 HP range.

Top Specifications of VST Shakti MT 224 1D AJAI 4WD

Engine & Performance

  • The engine of the VST Shakti MT 224 1D Aja i4WD delivers 22 HP power, which is generated by operating the engine at 3000 RPM. The engine capacity is 980 cc, and the number of cylinders is 3, which determines the power produced by the engine and fuel efficiency.
  • It consists of a Naturally aspirated diesel engine, which has low maintenance and is highly recommended for a farm tractor.
  • The dry-type air filter keeps the engine clean from impurities, and the liquid-cooled cooling system keeps the engine cool during the long run.

Transmission

  • The VST Shakti MT 224 1D AJAI 4WD comes with a single clutch, which can run the PTO and the main transmission simultaneously.
  • The transmission system consists of a sliding mesh gearbox. It has a simple design, and its maintenance cost is low, making it suitable for farmers.
  • It features 6 Forward + 2 Reverse gear speeds. Thus, it can attain a maximum forward speed of 19.3 km/h.
  • The gear lever is positioned at the side shift for easy and smooth gear shifting.

Brakes & Steering

  • The VST Shakti MT 224 1D Ajai 4WD comes with oil-immersed multi-disc brakes for an effective braking experience.
  • It features a mechanical steering wheel suitable for working on rugged terrains.

Hydraulics

  • The VST Shakti MT 224 1D AJAI 4WD has a lifting capacity of 500 kg. Thus, it can lift up to 500 kg easily.
  • It has an auto depth and draft control (ADDC) hydraulics system. Thus, the depth and height of the implements can be adjusted automatically using smart sensors.
  • Its 3-point linkage can pin Category I implements easily.

Power Take-Off (PTO)

  • The VST Shakti MT 224 1D AJAI 4WD PTO HP is 18.8. This power is used to run several implements, such as Rotavator, Puddler, and more.
  • This tractor has a dual-speed PTO of 692 RPM and 1021 RPM. The 1021 RPM is clocked at 3000 ERPM.

Dimensions

  • This tractor comes with a long wheelbase of 1420 mm. A long wheelbase ensures stability on uneven lands.
  • The overall length and width of the tractor are 2565 mm and 1130 mm, respectively.
  • It has a ground clearance of 230 mm, ensuring no damage to the crops during inter-cultivation activities.
  • The turning radius of this tractor with brakes is 2.3 m. Thus, you can easily turn the tractor in less space.

Fuel Capacity & Tyres

  • This VST Shakti 4WD tractor has a fuel tank capacity of 18 litres, which can store enough fuel to work on small farms.
  • The front tyres measure 6 X 16, and the rear tyres measure 8.3 X 20. The tyre size is ideal as per its dimensions.

VST Shakti MT 224 1D AJAI 4WD Price in India

The VST Shakti MT 224 1D Ajai 4WD price in India is in the affordable range. The portal also provides a compare tractors feature to compare the price of VST Shakti MT 224 1D Ajai 4WD with similar HP range models such as VST Shakti MT 270 Viraat 4WD, VST Shakti Mitsubishi VT 224 1D 4WD, and VST Shakti MT 270 High Torque.

Why choose Tractorkarvan for VST Shakti MT 224 1D AJAI 4WD?

Tractorkarvan is a one-stop destination for all farmers looking to buy a tractor. We at Tractorkarvan are here to help you get the ideal tractor of your choice. Here, you can find the latest tractors and upcoming tractors of different brands.

The portal also features a section where you can buy used VST tractors in good condition and at affordable prices. Moreover, you may check the VST tractor dealers list to get the details of your nearest VST dealer in your area. Contact Tractorkarvan now for further information.

Read More

VST Shakti MT 224 1D Ajai 4WD Engine

No. Of Cylinders 3
HP Category 22 HP
Engine Type V3D, Natural Aspirated
Engine Rated RPM 3000 RPM
Capacity 980 CC
Air Filter Dry Type
Cooling System Liquid Cooled
Fuel Type Diesel
Bore / Stroke 70 / 78 mm

VST Shakti MT 224 1D Ajai 4WD Transmission

Clutch Single
Gear Box Sliding Mesh
Gear Speed 6 Forward + 2 Reverse
Gear Lever Position Side Shift
Forward Speed 19.3 km/h
Brakes Oil Immersed Multi Disc Brakes

VST Shakti MT 224 1D Ajai 4WD Steering

Type Mechanical

VST Shakti MT 224 1D Ajai 4WD Power Take Off

PTO HP 18.8 HP
PTO Speed 692, 1021 RPM
RPM 1021 RPM @ 3000 RPM

VST Shakti MT 224 1D Ajai 4WD Fuel Capacity

Capacity 18 Litres

VST Shakti MT 224 1D Ajai 4WD Hydraulics

Lifting capacity 500 kg
3 Point Linkage CAT- I
Hydraulics Controls ADDC

VST Shakti MT 224 1D Ajai 4WD Tyre Size

Wheel Drive 4WD
Front 6.00 X 12
Rear 8.3 X 20

VST Shakti MT 224 1D Ajai 4WD Dimensions And Weight

Wheel Base 1420 mm
Overall Length 2565 mm
Overall Width 1130 mm
Ground Clearance 230 mm
Turning radius with brake 2.3 m

VST Shakti MT 224 1D Ajai 4WD Electrical

Alternator 40 Amp, 12 V

VST Shakti MT 224 1D Ajai 4WD Other Information

Accessories Tools, Bumper, Ballast Weight, Top Link, Canopy

VST Shakti MT 224 1D Ajai 4WD Variants

There are 1 Variants of VST Shakti MT 224 1D Ajai 4WD available on Tractorkarvan with complete specification and prices.

TractorKarvan Take On VST Shakti MT 224 1D Ajai 4WD

Good Things
  • Engine: It comes with a fuel-efficient diesel engine.
  • Maintenance: The maintenance cost of this tractor is low because of its simple features.
  • Hydraulics: The ADDC hydraulics ensure the smooth working of the implements.
Could be Better
  • The brand could have offered power steering instead of mechanical steering for better handling.

VST Shakti MT 224 1D Ajai 4WD Verdict

VST Shakti MT 224 1D Ajai 4WD has a fuel-efficient diesel engine that is ideal for farming operations. Its ADDC hydraulic system ensures the smooth working of the farm implements on the field. However, a power steering instead of mechanical steering could have been better. Overall, it is a good mini tractor on a low budget.

Product review by TractorKarvan

4.4
overall
5
Power & Performance
4
Transmission
5
PTO & Hydraulics
4
Design & Styling
4
Ergonomics

VST Shakti MT 224 1D Ajai 4WD User Reviews

No Reviews found. Be the first one to review!


Similar Used Tractors

VST Shakti MT 224 1D Ajai 4WD Second Hand Tractor
MT 224 1D Ajai 4WD
VST Shakti
2022 | Price ₹3.67 Lakh
Solapur, Maharashtra
Get More Details

Similar Brands


Similar To VST Shakti MT 224 1D Ajai 4WD

Mahindra OJA 2130 4WD Tractor
OJA 2130 4WD
Mahindra
30 HP 4WD
Get More Details
Sonalika DI 30 Baagban 4WD Tractor
DI 30 Baagban 4WD
Sonalika
30 HP 4WD
Get More Details
Massey Ferguson 1030 DI Mahashakti Tractor
1030 DI Mahashakti
Massey Ferguson
30 HP 2WD
Get More Details

Suitable Implements

Shaktiman Ultra Light UL 48 Rotavator Implement
Ultra Light UL 48
Shaktiman
4 Feet Rotavator
20-35 HP

Get More Details
Mahindra Rigid (Heavy Duty - 5 tyne) Cultivator Implement
Rigid (Heavy Duty - 5 tyne)
Mahindra
Cultivator
18-25 HP

Get More Details
Bhoomi Agro Automatic-Mini BAMSCFD05 Seed Drill Implement
Automatic-Mini BAMSCFD05
Bhoomi Agro
Seed Drill
15+ HP

Get More Details
Mitra Airotec Turbo 200L 616 Mist Blower Implement
Airotec Turbo 200L 616
Mitra
Mist Blower
18+ HP

Get More Details

Suitable Tyres

BKT 8.30-20 FARM 2000 4 PR Tyre
8.30-20 Farm 2000 4 PR
BKT Tyres
Rear TyreSize - 8.30 X 20
Get More Details
MRF 8.3-20 SHAKTI LIFE - TT Tyre
8.3-20 Shakti Life - TT
MRF Tyres
Rear TyreSize - 8.30 X 20
Get More Details
BKT 8.30-20 FARM 2000 6 PR Tyre
8.30-20 Farm 2000 6 PR
BKT Tyres
Rear TyreSize - 8.30 X 20
Get More Details

VST Shakti Tractor Dealers & Service Centers

Tirupati Shoping Center, Pune-Solapur Highway, Indapur, Pune, Maharashtra - 413106
+91-*******938
Contact Dealer
Opp. Dayawan Hotel, G.No-810, Kurduwadi Road, Barshi, Solapur, Maharashtra - 413401
+91-*******171
Contact Dealer
G No. 79/2A Pharand Wadiphaltan Lonand Road, Phaltan, Satara, Maharashtra - 415523
+91-*******035
Contact Dealer
594/1 New Agra Road, Pimpal gaon baswant, Niphad, Nashik, Maharashtra - 422209
+91-*******774
Contact Dealer
Sr No. 475, P No .17 And 18, Yashod IP Nagar, Jalna, Jalna, Maharashtra - 431203
+91-*******554
Contact Dealer
Madhuban Palace Shop No. 5, Beside Siddhikala Hospital, Pune City, Pune, Maharashtra - 411051
+91-*******446
Contact Dealer

Frequently Asked Questions On VST Shakti MT 224 1D Ajai 4WD

1. What is the price of the VST Shakti MT 224 1D AJAI 4WD tractor in India?

The VST Shakti MT 224 1D AJAI 4WD tractor price in India is affordable.

The VST Shakti MT 224 1D AJAI 4WD HP is 22.

The engine type for this tractor model is V3D, naturally aspirated.

The VST Shakti MT 224 1D AJAI 4WD requires a PTO HP of 18.8 to pull any farm implement.

The Bore/Stroke ratio is 70/78 mm.

The VST Shakti MT 224 1D AJAI comes with a 230 mm ground clearance.

The front tyre size of the VST Shakti MT 224 1D is 6 X 12, and the rear tyre size is 8.3 X 20.
