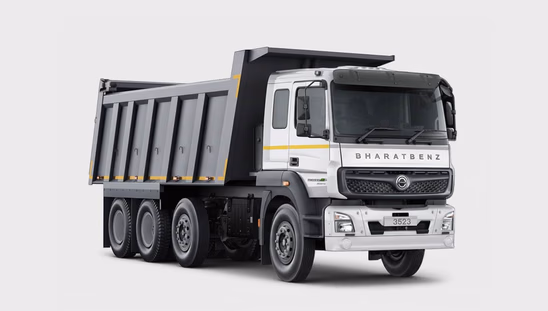

Key Specifications Of BharatBenz 3523RT 5775 CBC
180 KW
35000 Kg
12
Diesel
OM926, OBD-2
5775 mm
BharatBenz 3523RT 5775 CBC Specifications & Features
| No. Of Cylinders | 6 Cylinder |
| Max Power | 180 KW |
| Capacity | 7200 CC |
| Engine Rated RPM | 2200 RPM |
| Emission Norms | OBD-2, BSVI |
| Max Torque | 850 Nm |
| Gradeability | 19.2 % |
| Clutch | Single Plate Dry Type |
| Gear Box | G85, Mechanical, Synchromesh Gears |
| Gear Speed | 6 Forward + 1 Reverse |
| Steering Type | Hydraulic Power Assisted |
| PTO | Spline- Standard |
| Capacity | 330 Litres |
| DEF Tank Capacity | 60 Litres |
| Tyre Type | Radial |
| Rear Tyre | 295/90R20 |
| Front Tyre | 295/90R20 |
| Overall Length | 8835 mm |
| Overall Width | 2490 mm |
| Overall Height | 2965 mm |
| Ground Clearance | 230 mm |
| Turning Radius | 10.8 m |
| Wheel Base | 5775 mm |
| GVW | 35000 Kg |
| Brakes Type | Pneumatic, Foot Operated, Dual Line with ABS |
| Front Suspension | Parabolic |
| Rear Suspension | Balancer |
| ABS | Yes |
| Parking Brakes | Pneumatically operated hand control valve |
| Cabin Type | Sleeper Cabin |
| Battery | 24 V, 120 Ah |
| Warranty | 6 Years |
