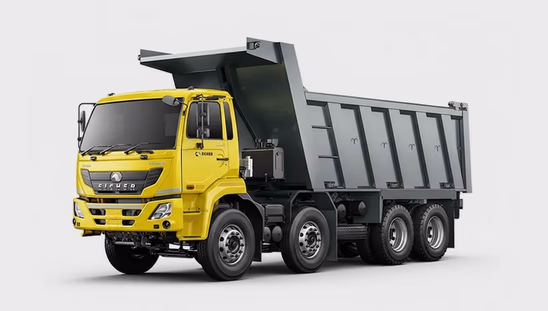

Eicher Pro 6035T 5285 20 Cum Box Specification
Key Specifications Of Eicher Pro 6035T 5285 20 Cum Box
194 KW
35000 Kg
12
Diesel
VEDX8
5285 mm
Eicher Pro 6035T 5285 20 Cum Box Specifications & Features
| Max Power | 194 KW |
| Engine Rated RPM | 2200 RPM |
| Emission Norms | BSVI |
| Max Torque | 1000 Nm |
| Mileage | 2.5 - 3.5 Kmpl |
| Gradeability | 39 % |
| Clutch | Pull Type, Single Dry Plate |
| Gear Box | ET 140S9 |
| Gear Speed | 9 Speed |
| Steering Type | Power Steering |
| Steering Adjustment | Tilt & Telescopic |
| Capacity | 315 Litres |
| DEF Tank Capacity | 50 Litres |
| Tyre Type | Nylon and Mining |
| Rear Tyre | 7.5 X 20, 8.00 X 20 |
| Front Tyre | 7.5 X 20, 8.00 X 20 |
| Overall Length | 8888 mm |
| Overall Width | 2600 mm |
| Overall Height | 3431 mm |
| Ground Clearance | 252 mm |
| Turning Radius | 9.3 m |
| Wheel Base | 5285 mm |
| GVW | 35000 Kg |
| Brakes Type | S-Cam Dual line with ABS |
| Front Suspension | Parabolic |
| Rear Suspension | Bogie |
| ABS | Yes |
| Parking Brakes | Pneumatically operated hand control valve |
| Front Axle | Forged reverse elliot type with anti-roll bar |
| Rear Axle | Single reduction tandem axle with interaxle lock and anti-roll bar |
| Air Conditioning | Yes |
| Cabin Type | Day Cabin |
| Battery | 24 V, 120 Ah |
| Warranty | 2 Years / 4000 hrs |
Eicher Pro 6035T Variants
You can find the variants of Eicher Pro 6035T available on Tractorkarvan with complete specification & prices.
