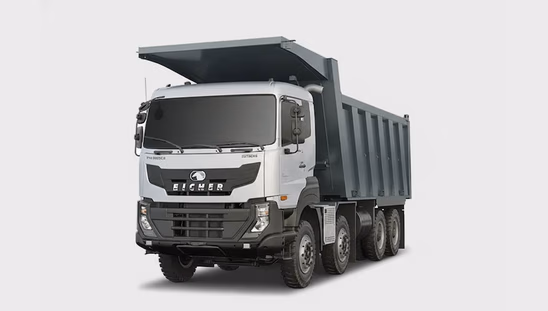

Eicher Pro 8028XC 4585 16 Cum (Box) Specification
Key Specifications Of Eicher Pro 8028XC 4585 16 Cum (Box)
220 KW
28000 Kg
10
Diesel
VEDX8
4585 mm
Eicher Pro 8028XC 4585 16 Cum (Box) Specifications & Features
| Max Power | 220 KW |
| Engine Rated RPM | 2200 RPM |
| Emission Norms | BSVI |
| Max Torque | 1200 Nm |
| Mileage | 2.75 - 3.75 Kmpl |
| Gradeability | 68 % |
| Clutch | Pull Type, Single Dry Plate |
| Gear Box | ET 140S9 |
| Gear Speed | 1 C + 8 F + 1 R |
| Steering Type | Power Steering |
| Steering Adjustment | Tilt & Telescopic |
| Capacity | 315 Litres |
| DEF Tank Capacity | 50 Litres |
| Tyre Type | Nylon, Mining |
| Rear Tyre | 11x20, 7.5 X 20 |
| Front Tyre | 11x20, 7.5 X 20 |
| Overall Length | 8115 mm |
| Overall Width | 2562 mm |
| Overall Height | 3800 mm |
| Ground Clearance | 255 mm |
| Turning Radius | 8.15 m |
| Wheel Base | 4585 mm |
| GVW | 28000 Kg |
| Brakes Type | S-Cam Dual line with ABS |
| Front Suspension | Parabolic spring assembly |
| Rear Suspension | Bogie |
| ABS | Yes |
| Parking Brakes | Pneumatically operated hand control valve |
| Front Axle | Heavy-duty forged I-beam Reverse Elliot type axle with stabilizer bar |
| Rear Axle | Heavy duty Single reduction tandem axle |
| Air Conditioning | Yes |
| Cabin Type | Sleeper Cab |
| Battery | 24 V, 120 Ah |
| Warranty | 2 Years / 6000 hrs |
