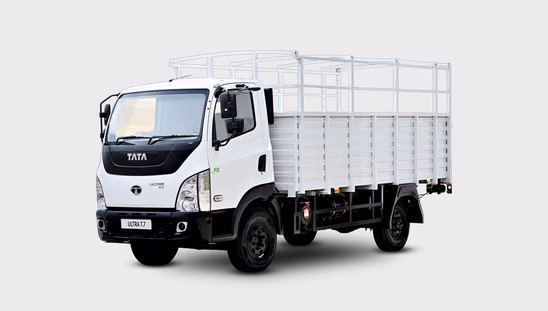

Key Specifications Of Tata Ultra T.7 3550 HSD
92 KW
7490 Kg
6
Diesel
Water Cooled Direct Injection Diesel with intercooler
3550 mm
Tata Ultra T.7 3550 HSD Specifications & Features
| No. Of Cylinders | 4 Cylinder |
| Max Power | 92 KW |
| Capacity | 2956 CC |
| Engine Rated RPM | 2800 RPM |
| Emission Norms | 4SP BS6 Ph2 |
| Max Torque | 360 Nm |
| Fuel Pump Type | Inline |
| Mileage | 10 Kmpl |
| Gradeability | 33.3 % |
| Clutch | Single Plate Dry Friction Type |
| Gear Box | G400, Manual Synchromesh Gearbox |
| Gear Speed | 5 Forward + 1 Reverse |
| Steering Type | Power Steering |
| Steering Adjustment | Tilt and telescopic |
| Capacity | 90 Litres |
| DEF Tank Capacity | 18 Litres |
| Rear Tyre | 8.25 R 16 (ST) - 7.50 R 16 (TT) |
| Front Tyre | 8.25 R 16 (ST) - 7.50 R 16 (TT) |
| Ground Clearance | 192 mm |
| Turning Radius | 5.75 m |
| Wheel Base | 3550 mm |
| GVW | 7490 Kg |
| Loading Length | 4350 mm |
| Loading Width | 1962 mm |
| Loading Height | 1820 mm |
| FAW | 3650 KG |
| RAW | 3840 KG |
| Brakes Type | Drum With Auto Slack Adjuster |
| Front Suspension | Parabolic Suspension with rubber bush and hydraulic double acting telescoping shock absorbers |
| Rear Suspension | Semi Elliptical Leaf Spring with Aux Springs |
| Rear Axle | TATA RA 1109R Fully Floating Benjo Axle |
| Cabin Type | Day Cabin |
| Battery | 12 V, 100 Ah |
| Warranty | 3 Years / 300000 Km |
| Cruise Control | Yes |
| Gear Shift Advisor | Yes |
Tata Ultra T.7 Variants
You can find the variants of Tata Ultra T.7 available on Tractorkarvan with complete specification & prices.
