Brand ACE Tractors
No. Of Cylinders 4
HP Category 61.2 HP
PTO HP 52
Gear Box Synchro mesh with Carraro gearbox
Brakes Oil Immersed Disc Brakes


Key Specifications Of ACE DI 6565 V2

Tractor HP
Tractor HP
61.2 HP
Wheel Drive
Wheel Drive
2WD
Clutch
Clutch
Double
Gear Box
Gear Box
Synchro mesh with Carraro gearbox
Steering
Steering
Power Steering
Lifting capacity
Lifting Capacity
2200

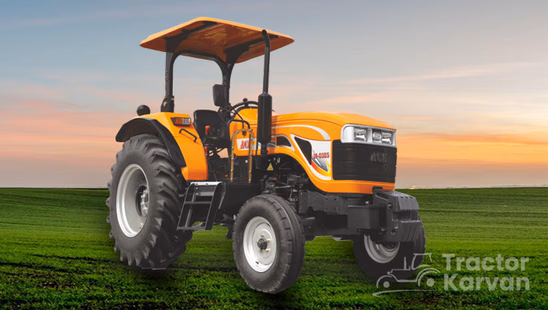

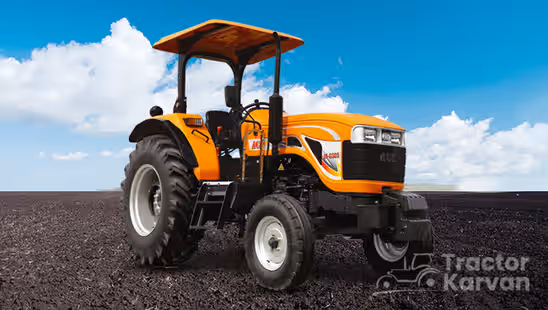

About ACE DI 6565 V2

ACE DI 6565 V2 price in India ranges from INR 9 lakhs* to INR 10 lakhs*. ACE DI 6565 V2 HP is 61.2 horsepower.

ACE tractor brand was founded in 1995 by Vijay Agarwal. The brand started manufacturing ACE tractors in 2008, and since it has been one of the most preferred tractor brands in the Indian market. ACE has released its latest tractor model, ACE DI 6565 V2. It is equipped with modern features and cutting-edge technology.

ACE DI 6565 V2 HP is 61.2 horsepower, and it has a powerful 4088 CC diesel engine. It has become popular and a favourite of Indian farmers in a very less time. Moreover, the ACE DI 6565 V2 price in India is economical for mid and high-range farmers, which is one of the primary reasons for its popularity in India. Let's discuss this latest ACE tractor in detail in the below sections.

ACE DI 6565 V2 Top Specifications

The ACE DI 6565 tractor is a perfect combination of power, performance, and economy. It comes with a lot of great features. Some key features of this popular tractor are listed below:

Engine & Performance

  • ACE DI 6565 V2 HP (horsepower) is 61.2 HP. It is the latest addition to the tractors under 70 HP category. It comes with 4 cylinders. This ACE model is known for its powerful performance. Its high horsepower allows it to achieve high speeds and easily manage demanding farm tasks.
  • The engine type provided in this ACE tractor is a direct-injection naturally aspirated diesel engine. The engine-rated RPM of this tractor is 2200. Operating the tractor at its ideal RPM ensures fuel efficiency and reduces operational costs.
  • It has an engine capacity of 4088 cc. This engine capacity is large enough to generate the power needed for heavy-duty farm applications such as harvesting and hauling.
  • ACE DI 6565 V2 engine uses a dry-type air filter. This filter ensures that the engine receives clean air, which improves its performance and longevity.
  • The addition of a liquid-cooled cooling system prevents the engine from overheating. This cooling system absorbs excess heat from the engine, keeping it at its optimal operating temperature.
  • The tractor's bore/stroke ratio is 105/118 mm. These specifications guarantee enhanced power and torque output across a wide range of farm operations.

Transmission

  • ACE DI 6565 V2 transmission system consists of a Synchro mesh with a Carraro gearbox system. This gearbox has gained popularity for its ability to deliver seamless and rapid gear shifts. It is because it uses synchronisers to match the speed of gears before engagement.
  • This ACE tractor features a double clutch option. This clutch offers a smoother shifting experience compared to single clutches by allowing the engagement of the next gear while the previous gear is still engaged. This seamless transition minimises interruptions in the power flow.
  • The 24-speed gearbox offers 12 forward and 12 reverse gears. The availability of more gear speeds empowers the operator to choose the optimal speed depending on the requirements of the farm task and prevailing working conditions. Additionally, this feature significantly enhances the fuel efficiency of the tractor.
  • This model has a forward speed range of 1.5 to 30.85 km/h. Its reverse speed ranges between 1.27 to 26.22 km/h. Such high speeds make it perfect for easily carrying out haulage applications.

Power Take-Off (PTO)

  • ACE DI 6565 V2 PTO HP is 52 horsepower. Such high PTO horsepower allows the tractor to work with a wider range of PTO-driven attachments, maximising farm productivity. Examples of compatible tractor implements include Power Harrow and Hay Rake.
  • The PTO speeds of this tractor are 540 RPM and 540 ERPM. Due to the 540 economy PTO speed, this model generates the same PTO speed but at a lower ERPM. It not only optimises fuel consumption but also reduces noise and vibration during operations.

Hydraulics

  • The lifting capacity of ACE DI 6565 V2 is 2200 kg. With high lifting capacity, the tractor is capable of operating a diverse array of hydraulic implements, such as a Laser Land Leveler and Hydraulic Reversible MB Plough, enabling versatile functionality across various agricultural tasks.
  • It comes with automatic depth and draft control (ADDC) type hydraulic control. ADDC maintains the draft and depth of implements automatically, considering the needs of the operating conditions and tasks.

Weight & Dimensions

  • ACE DI 6565 V2 weight is 2505 kg. The weight distribution of the tractor is carefully balanced to ensure stability and optimal performance, even when navigating rough terrains or carrying substantial loads.
  • It has a wheelbase of 2225 mm. This optimal wheelbase ensures a high level of balance and stability, whether the tractor is operating on the field or off-road.
  • The tractor's overall length is 3815 mm, and its width is 1950 mm. The dimensions of this tractor contribute to ideal weight distribution, resulting in enhanced stability across various surfaces.
  • The tractor's ground clearance is 384 mm. Due to its adequate ground clearance, this tractor is designed to avoid damage or getting stuck in diverse farm conditions.
  • It has a 4.6 m turning radius with brakes. With this turning radius, this model has better control and flexibility in various operating conditions.

Wheel Drive & Tyres

  • This ACE model is a two-wheel drive. This is why it is lighter than similar 4WD models, causing lesser soil compaction during field operations.
  • This ACE tractor's front tyres are available in the size of 7.50 X 16, and the rear tyres are available in the size of 16.9 X 28. These big tractor tyres provide excellent traction on the road, ensuring a strong and secure grip.

ACE DI 6565 V2 Key Benefits

The following set of additional features are provided in the ACE DI 6565 V2 tractor:

  • Brakes: ACE DI 6565 V2 comes with oil-immersed multi-disc brakes to ensure safety on/off the road. The presence of oil in these brakes serves multiple purposes, including lubricating and cooling the brake discs. This oil effectively eliminates the heat generated during braking, thereby enhancing the overall performance of the braking system.
  • Steering: It is equipped with power steering. Power steering significantly enhances driving comfort by reducing the amount of steering effort required from the operator. This feature ensures a smoother and more effortless steering experience, making it more comfortable to control the vehicle.
  • Fuel Capacity: ACE DI 6565 V2 has a fuel tank capacity of 65 litres. Thus, you can work longer hours on farms without refuelling the tractor. It enhances farm productivity as more work is done in lesser time.
  • Electrical: The tractor's internal system is handled by an 88Ah/12V battery and 42 Amp/12V alternator. This battery is capable of powering all the electrical components for a long time.

ACE DI 6565 V2 Price 2023

ACE DI 6565 V2 price in India ranges from INR 9 lakhs* to INR 10 lakhs*. If you cannot afford the tractors above 9 lakhs category, buy them at easy EMIs from Tractorkarvan. The customers must note that the price list provided by the executives of Tractorkarvan is the final on-road price, comprising road taxes, RTO charges, insurance costs, etc.

Moreover, the users can compare this tractor with the other models using the compare tractor feature on Tractorkarvan. Some ACE tractor models in the similar HP category are ACE DI 6500 2WDACE DI 6565, etc.

Why choose Tractorkarvan for ACE DI 6565 V2?

Tractorkarvan is a trustworthy platform to learn everything regarding the ACE tractor, such as the ACE tractor 6565 V2 price in India, second-hand ACE tractors, warranty, ACE tractor dealers, etc. So, customers looking for a genuine source to learn about ACE tractors can contact Tractorkarvan anytime. Moreover, the portal also offers tractor loans at the best interest rate. So, if you cannot afford to buy a tractor, apply for a loan on Tractorkarvan. For further information and tractor videos, explore Tractorkarvan anytime.

Read More

ACE DI 6565 V2 Engine

No. Of Cylinders 4
HP Category 61.2 HP
Engine Type Direct injection, Naturally Aspirated
Engine Rated RPM 2200 RPM
Capacity 4088 CC
Air Filter Dry Type
Cooling System Liquid Cooled
Fuel Type Diesel
Bore / Stroke 105 / 118 mm

ACE DI 6565 V2 Transmission

Clutch Double
Gear Box Synchro mesh with Carraro gearbox
Gear Speed 12 Forward + 12 Reverse
Forward Speed 1.5 - 30.85 km/h
Reverse Speed 1.27 - 26.22 km/h
Brakes Oil Immersed Disc Brakes

ACE DI 6565 V2 Steering

Type Power Steering

ACE DI 6565 V2 Power Take Off

PTO HP 52 HP
PTO Speed 540 RPM & 540 ERPM

ACE DI 6565 V2 Fuel Capacity

Capacity 65 Litres

ACE DI 6565 V2 Hydraulics

Lifting Capacity 2200 kg
Hydraulics Controls ADDC

ACE DI 6565 V2 Tyre Size

Wheel Drive 2WD
Front 7.5 X 16
Rear 16.9 X 28

ACE DI 6565 V2 Dimensions And Weight

Total Weight 2505 kg
Wheel Base 2225 mm
Overall Length 3815 mm
Overall Width 1950 mm
Ground Clearance 384 mm
Turning radius with brake 4.6 m

ACE DI 6565 V2 Electrical

Battery 12 V - 88 Ah
Alternator 12 V - 42 Amp

ACE DI 6565 V2 Variants

There are 3 Variants of ACE DI 6565 V2 available on Tractorkarvan with complete specification and prices.

TractorKarvan Take On ACE DI 6565 V2

Good Things
  • Front Axle: Heavy-duty axle to offer support and stability for front-end loader applications.
  • Power Take-Off: High PTO horsepower in the category and 540E economy PTO speed ensures higher fuel efficiency.
  • Comfort: Ensure the operator’s comfort with features like a flat platform and hanging pedal.
  • Versatile: Best suited for straw reaper, MB plough, Laser Leveler, Happy Seeder and heavy haulage, among others.
Could be Better
  • More PTO speed options would have ensured compatibility with a wider range of implements.

ACE DI 6565 V2 Verdict

ACE DI 6565 V2 is equipped with a sturdy engine that provides impressive power output. Boasting 61.2 horsepower, it effortlessly handles a wide range of farming tasks, including sowing and the use of heavy-duty implements. Moreover, ACE DI 6565 V2 demonstrates outstanding fuel efficiency, enabling farmers to optimise fuel consumption and minimise operational expenses. With its reliability and ability to meet diverse needs, this model serves as a trusted companion for farmers.
