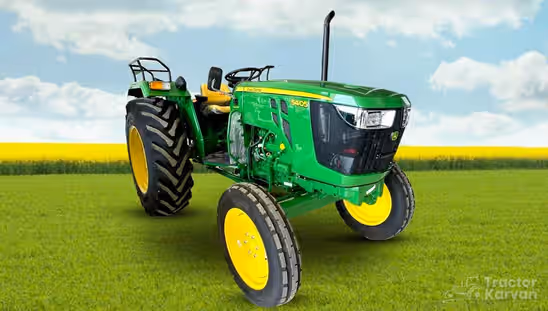

John Deere 5405 Gear Pro Trem IV

Brand John Deere Tractors
Series E Series Tractors
No. Of Cylinders 3
HP Category 63 HP
Brakes Self Adjusting, Self Equalizing, Hydraulically Actuated Oil Immersed Disc Brake


Key Specifications of John Deere 5405 Gear Pro Trem IV

Tractor HP
Tractor HP
63 HP
Wheel Drive
Wheel Drive
2WD
Clutch
Clutch
Dry Dual Clutch, Dry Electro-Hydraulic Clutch(Optional)
Steering
Steering
Power Steering
Lifting capacity
Lifting capacity
2000 / 2500

About John Deere 5405 Gear Pro Trem IV

John Deere 5405 Gear Pro Trem IV price in India has been set reasonably. John Deere 5405 Gear Pro Trem IV offers a power output of 63 horsepower. The 5405 Gear Pro Trem IV engine-rated RPM is 2100, and the gear pattern consists of 12 forward and 4 reverse gears.

John Deere is a famous name for manufacturing tractors and agricultural implements in India and globally. Their tractors are precisely one of the best products in the market. The John Deere 5405 Gear Pro Trem IV is their latest addition to the John Deere E series, and it is already the talk of the town.

The John Deere 5405 Gear Pro Trem IV price is higher for small farmers, but it is a perfect choice because of its exceptional features. The tractor is fitted with a heavy-power engine and a collar shift gearbox.

The power steering, large fuel tank, and compact design all together make this an excellent choice in the tractors under 70 HP category. In the upcoming sections, let us learn more about John Deere 5405 Gear Pro Trem IV.

John Deere 5405 Gear Pro Trem IV Key Specifications

Engine & Performance

  • John Deere 5405 Gear Pro Trem IV HP is 63 horsepower. More power output allows it to handle more complex tasks, leading to increased productivity.
  • It has a turbocharged, dual-torque mode diesel engine. A turbocharged engine allows a higher volume of air and fuel mixture to be combusted, resulting in more power.
  • The tractor comes with 3 cylinders. Its engine-rated RPM is 2100. Running the engine at this ideal RPM helps achieve the best fuel-to-power ratio, maximising fuel efficiency and reducing operating costs.
  • The air type provided in this tractor is a dry-type, dual element. It does not allow dust and other debris to enter the engine cylinders and causing damage.
  • The liquid-cooled cooling system of the tractor keeps the engine cool during intense farming operations. It maintains a consistent temperature throughout the engine, contributing to stable and reliable performance.
  • The tractor consists of a High-Pressure Common Rail System (HPCR) fuel pump. It optimises combustion by delivering fuel at the right moment and in precise quantities.
  • It is certified with Trem IV emission norms. Thus, this model uses more fuel-efficient technologies to promote a cleaner environment.

Transmission

  • This tractor comes with a Dry dual clutch and Dry electro-hydraulic clutch (Optional) for easy working with all implements. Due to the absence of oil and lighter weight, this clutch requires less maintenance.
  • The tractor's gear speeds include 12 Forward + 4 Reverse gears. With more gears, it can operate at the optimal RPM for a broader range of speeds. This improves fuel efficiency as the engine can run more efficiently across various operating conditions.
  • It has a side shift gear lever position. This gear lever is designed to be ergonomically positioned, allowing for more comfortable and natural hand movements. It contributes to reduced operator fatigue during long hours of operation.

Power Take-Off (PTO)

  • John Deere 5405 Gear Pro Trem IV comes with a dual-speed PTO. Thus, a variety of PTO-driven implements can work with this tractor, including Super Seeder and Pneumatic Precision Planter.
  • The PTO RPM of this tractor is 540, 540E, and Reverse PTO. With economy PTO speed, the tractor offers 540 RPM at ideal fuel consumption. The primary benefit of an RPTO is the ability to operate tractor implements in reverse.

Hydraulics

  • John Deere 5405 Gear Pro Trem IV has a lifting capacity of 2000 kg or 2500 kg. It is essential for tasks that require the use of large and heavy implements, such as a Laser Land Leveler and Disc Harrow.
  • It has a 3-point linkage that can pin Category II implements. The hydraulic controls offered in this tractor are Automatic Draft and Depth Control (ADDC) / Mechanical Quick Rise and Lower (MQRL) / Electrical Quick Rise and Lower (EQRL). These controls allow seamless and productive operation of attached implements.
  • It also features a dual SCV remote/auxiliary valve. The operator can rapidly engage or disengage hydraulic implements, increasing efficiency in lifting, lowering and tilting of implements.

Brakes & Steering

  • The oil-immersed disc brakes in the tractor guarantee better heat dissipation and less brake fade. Moreover, the brakes are self-equalising and hydraulically actuated.
  • The steering type is power steering. Tilt steering adjustment is also available for easy access and comfortable operation.

Weight & Dimensions

  • John Deere 5405 Gear Pro Trem IV has a total weight of 2320 kg. This weight provides stability to the tractor during challenging farm tasks.
  • Its wheelbase is 2050 mm. A longer wheelbase contributes to greater stability.
  • This John Deere tractor's overall length and width are 3678 mm and 2243 mm, respectively.

Wheel Drive & Tyres

  • This model is a two-wheel drive variant. Thus, it is simpler to operate and maintain compared to 4WD models.
  • The tractor's front tyres measure 6.50 X 20 / 7.50 X 16, while the rear tyres are 16.9 X 28. This right set of tractor tyres enhances the tractor's versatility by allowing it to operate efficiently across various terrains.

John Deere 5405 Gear Pro Trem IV Key Benefits

  • The tractor has a digital instrumentation cluster. The LCD screen displays the hour meter, tractor speed, and the PTO RPM monitor.
  • The driver's seat has been upgraded, and comfortable seats have been provided.
  • The rear axle comes with planetary gear with a straight axle. This axle is highly durable and supports heavy rear axle loads easily.
  • The fuel pump type is HPCR or a high-pressure common rail system. It ensures cleaner exhaust, more power, and, most importantly, more efficiency than the prior models.
  • The ROPS feature provides additional safety to the operator in rollover situations.
  • The other features of this tractor are JD Link, radiator screen, combination switch, floor mat, more comprehensive platform equipped with rear floor extensions, and LED headlamps.
  • The 71-litre fuel tank of John Deere 5405 Gear Pro Trem IV ensures that the drivers can work in the fields for an extended period.

John Deere 5405 Gear Pro Trem IV Price 2024

John Deere 5405 Gear Pro Trem IV price in India falls in a reasonable range. Customers who cannot afford this tractor can approach Tractorkarvan and buy it at easy monthly instalments. EMI starts from INR 25,176 for this model on Tractorkarvan.

Here, customers may also compare two tractor models using the compare tractor tool to get better clarity on which model to buy. Some John Deere models in the similar HP range are John Deere 5405 Gear Pro Trem IIIJohn Deere 5065 E, etc.

John Deere 5405 Gear Pro Trem IV Warranty

The brand offers 5 years or 5000 hours of warranty on the John Deere 5405 Gear Pro Trem IV.

Why choose Tractorkarvan for John Deere 5405 Gear Pro Trem IV?

Buying a tractor requires extensive research into the various features and specifications. It should not be a decision that you take in haste. On Tractorkarvan, you not only get a clear view into each attribute of the tractor with tractor videos, but we also make your dream of buying it come true.

If you want to learn about John Deere tractors in detail, Tractorkarvan is the best place. Here, you will get all the information regarding new John Deere tractors, John Deere tractor dealerssecond-hand John Deere tractors, etc.

Read More

John Deere 5405 Gear Pro Trem IV Engine

No. Of Cylinders 3
HP Category 63 HP
Engine Type John Deere 3029H, Turbo Charged, Dual Torque Mode
Engine Rated RPM 2100 RPM
Air Filter Dry Type, Dual Element
Cooling System Liquid Cooled
Fuel Type Diesel
Fuel Pump Type High Pressure Common Rail System (HPCR)
Emission Standard Trem IV

John Deere 5405 Gear Pro Trem IV Transmission

Clutch Dry Dual Clutch, Dry Electro-Hydraulic Clutch(Optional)
Gear Speed 12 Forward + 4 Reverse
Gear Lever Position Side Shift
Brakes Self Adjusting, Self Equalizing, Hydraulically Actuated Oil Immersed Disc Brake
Rear Axle Planetary Gear with Straight Axle

John Deere 5405 Gear Pro Trem IV Steering

Type Power Steering
Adjustment Tilt Steering

John Deere 5405 Gear Pro Trem IV Power Take Off

PTO Speed Dual Speed PTO
RPM 540, 540E, RPTO

John Deere 5405 Gear Pro Trem IV Fuel Capacity

Capacity 71 Litres

John Deere 5405 Gear Pro Trem IV Hydraulics

Lifting capacity 2000 / 2500 kg
3 Point Linkage CAT- II
Hydraulics Controls ADDC / Mechanical Quick Rise and Lower (MQRL) /Electrical Quick Rise and Lower (EQRL)
Remote / Auxillary Valve Dual

John Deere 5405 Gear Pro Trem IV Tyre Size

Wheel Drive 2WD
Front 6.5 X 20 / 7.50 X 16
Rear 16.9 X 28

John Deere 5405 Gear Pro Trem IV Dimensions And Weight

Total Weight 2320 kg
Wheel Base 2050 mm
Overall Length 3678 mm
Overall Width 2243 mm

John Deere 5405 Gear Pro Trem IV Safety Features

ROPS Yes

John Deere 5405 Gear Pro Trem IV Other Information

Warranty 5 Year/ 5000 Hours
Instrument Cluster Digital, LCD Display ( Hour Meter, Tractor Speed and PTO RPM Monitor)
Driver Seat Improved Comfort Seats
Accessories Ballast Weights, Canopy, Canopy Holder, Drawbar, Wagon Hitch, Tow Hook
Additional Features JD Link, Radiator Screen, Floor Mat, Combination Switch, Wider Platform with Rear Floor Extensions, PowrReverser, LED Headlamps

John Deere 5405 Gear Pro Trem IV Variants

There are 3 Variants of John Deere 5405 Gear Pro Trem IV available on Tractorkarvan with complete specification and prices.

TractorKarvan Take On John Deere 5405 Gear Pro Trem IV

Good Things
  • Engine: Powerful turbocharged engine that efficiently utilises fuel and controls air pollution.
  • Hydraulics: Powerful hydraulic system for heavy-duty applications and to work with bigger implements.
  • JD Link: Helps remotely monitor the location, performance and health of the tractor in real-time.
  • Comfort: Prioritises comfort via features like a wider platform, improved seats and tilt steering.
  • Features: Offers a number of modern features like LCD display, ROPS, LED headlamps, Radiator Screen and Combination Switch.
Could be Better
  • Could have featured an option for a double clutch for smoother gear shifts and easy operation of implements.

John Deere 5405 Gear Pro Trem IV Verdict by TractorKarvan

This John Deere tractor is equipped with a powerful engine, providing sufficient horsepower for a range of tasks on the farm. It includes tilling, seeding, hauling and harvesting. Its powerful hydraulic system supports various implements, allowing for versatility in agricultural operations. This model focuses on providing operator comfort and ease of use. It features a well-designed operator station, ergonomic controls and a comfortable seat. Overall, it is a durable tractor fit for meeting all your farming needs.

Product review by TractorKarvan

0
overall
4.5
Power & Performance
4.5
Transmission
5
PTO & Hydraulics
4.5
Design & Styling
5
Ergonomics

John Deere 5405 Gear Pro Trem IV User Reviews

No Reviews found. Be the first one to review!
