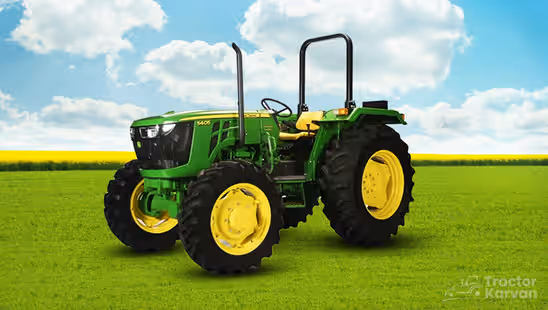

John Deere 5405 Gear Pro Trem IV 4WD

Brand John Deere Tractors
Series E Series Tractors
No. Of Cylinders 3
HP Category 63 HP
Brakes Self Adjusting, Self Equalizing, Hydraulically Actuated Oil Immersed Disc Brake


Key Specifications of John Deere 5405 Gear Pro Trem IV 4WD

Tractor HP
Tractor HP
63 HP
Wheel Drive
Wheel Drive
4WD
Clutch
Clutch
Dry Dual Clutch, Dry Electro-Hydraulic Clutch(Optional)
Steering
Steering
Power Steering
Lifting capacity
Lifting capacity
2000 / 2500

About John Deere 5405 Gear Pro Trem IV 4WD

John Deere 5405 4x4 price is within a reasonable range for Indian farmers. John Deere 5405 HP is 63 horsepower generated at an engine speed of 2100 RPM. The gear pattern in the tractor consists of 12 Forward and 4 Reverse gears.

One of the popular tractor models from the John Deere E series is John Deere 5405 Gear Pro Trem IV 4WD. The John Deere 5405 Gear Pro Trem IV 4WD price is set reasonably, making it an ideal tractor for mid-range farmers. Let us discuss the John Deere 5405 4x4 price, features, warranty and more in the upcoming sections.

John Deere 5405 Gear Pro Trem IV 4WD Top Specifications

Engine & Performance

  • John Deere 5405 HP makes it a powerful model in the tractors under 70 HP range. The HP of John Deere 5405 4x4 is 63 HP generated at the maximum engine speed of 2100 RPM. In combination with 3 cylinders, this tractor not only is a beast on farms but also is compatible with heavy tractor implements. It is also a highly fuel-efficient tractor.
  • The engine type provided in this tractor is a turbocharged dual torque model diesel engine. A turbocharged engine generates more power and torque output to handle heavy loads easily.
  • It comes with a dry-type dual-element air filter. It ensures that engine components are safe from air impurities. Thus, the lifespan of the engine is improved with this air filter.
  • The cooling system provided in the tractor is liquid-cooled, which prevents engine overheating, thus improving the engine’s performance and life.
  • The tractor is equipped with a high-pressure common rail system (HPCR) fuel pump. This pump supplies fuel in such a way as to ensure complete and powerful combustion.
  • This John Deere tractor is certified with Trem IV emission standards. Thus, the emissions from this model have lesser pollutants to protect the environment's health.

Transmission

  • The transmission system of this tractor includes a dry dual-clutch or dry electro-hydraulic clutch (optional). A dual clutch has two friction plates to operate the rear axle transmission and PTO. It preselects the next gear and offers a highly seamless gear shifting.
  • Also, the electro-hydraulic clutch option is provided to ensure comfortable gear changes, as this clutch needs lesser displacement of the clutch pedal.
  • The tractor’s gear speeds include 12 Forward + 4 Reverse gears. Due to more gear speed options, you can easily choose a suitable speed from a wide gear speed range based on the demand of the terrain or specific farm task.
  • Its gear lever is positioned at the side shift. This gear lever position is within easy reach of the drive, which makes gear shifting convenient.
  • The tractor also features planetary gear with a straight axle. This robust axle can handle heavy loads and easily absorb shocks during haulage operations.

Power Take-Off (PTO)

  • This John Deere tractor features a dual-speed PTO. More PTO speed options allow 5405 Gear Pro to work with various compatible implements like Check Basin Former and Super Seeder.
  • The PTO speed type consists of 540, 540E, and reverse PTO (optional). The economy PTO speed is produced at a lower engine RPM to achieve higher fuel efficiency. On the other hand, reverse PTO allows the removal of materials that get stuck in implements.

Hydraulics

  • The hydraulic lifting capacity of this John Deere tractor is 2000/2500 kg. Also, it has Category II 3-point linkage. This means 5405 Gear Pro can easily and quickly operate heavier hydraulic implements, including Laser Land Leveler and Baler.
  • The hydraulic controls of this tractor include Automatic Depth and Draft Control (ADDC) / Electrical Quick Rise and Lower (EQRL) / Mechanical Quick Rise and Lower (MQRL). These systems manage the working of John Deere implements to enhance their productivity and efficiency on the field.
  • The tractor also features a dual SCV remote/auxiliary valve. This valve allows the effective functioning of the hydraulic implements.

Weight & Dimensions

  • The John Deere 5405 4x4 weight is 2600 kg. It enjoys excellent grip on all surfaces because of this weight.
  • The wheelbase of this tractor is 2050 mm. This wheelbase allows proper weight distribution of the tractor across its length to provide an ideal base of support to easily carry heavy loads.
  • The length and width of this John Deere tractor are 3678 mm and 2243 mm, respectively.

Brakes & Steering

  • The John Deere 5405 is equipped with a self-adjusting, self-equalising, hydraulically operated oil-immersed disc brake system for assured safety both on and off the road.
  • It comes with power steering making it perfect for comfortable use on and off-road. Power steering uses lesser steering effort to manoeuvre the tractor across the field.

Wheel Drive & Tyres

  • John Deere 5405 Gear Pro Trem IV 4WD is a top choice of Indian farmers in the 4WD tractors category. It can easily carry out operations in wetlands, including puddling.
  • The front tyre size of this tractor is 9.5 x 24 / 11.2 x 24. The rear tyre size of 5405 Gear Pro is 16.9 X 28. Bigger tyres offer better grip on the road and field, making the tractor suitably stable and balanced.

John Deere 5405 Gear Pro Trem IV 4WD Key Benefits

  • This John Deere model comes with planetary gear reduction for heavy-duty transmission and demands lesser maintenance.
  • 5405 Gear Pro features an oil jet for piston cooling. It sprays oil on the piston continuously to remove excess heat and optimise the engine’s efficiency and performance.
  • It has digital instrument cluster with a digital hour meter, PTO RPM and tractor speed monitor.
  • 5405 Gear Pro provides an innovative application, JD Link, to enable farmers to check the health of their tractors. It also helps them to stay connected with their tractors from any location.

John Deere 5405 4WD Price in India 2023

John Deere 5405 4X4 price in India is set within a reasonable price range of INR 13 lakhs* - INR 15 lakhs*. The starting monthly EMI on John Deere 5405 4WD price in India is INR 30,616, if you are taking this tractor on a tractor loan.

Please note that the final on-road John Deere 4X4 price in India may differ according to the state and city. However, the final John Deere 63 HP tractor price offered here is the on-road price, including all taxes, RTO charges, and insurance costs.

The portal also offers state-wise prices of John Deere models, such as the John Deere 5405 price in Punjab, Uttar Pradesh, Maharashtra, etc. The John Deere 5405 4x4 price in Punjab can vary from that in Uttar Pradesh.

Tractorkarvan also provides a compare tractor feature where you can compare John Deere 5405 Gear Pro Trem IV 4WD price with other models under a similar HP range. For instance, John Deere 5305 Trem III and John Deere 5045 D Power Pro.

John Deere 5405 Gear Pro Trem IV 4WD Warranty

The tractor has a very remarkable warranty period. You are covered by a warranty of 5000 working hours or 5 years, beginning on the billing day.

Why choose Tractorkarvan for John Deere 5405 Gear Pro Trem IV 4WD?

Tractorkarvan is here to help you resolve your queries regarding all tractor brands and models. Here, customers can easily access information about the latest tractors and upcoming tractor models. You can quickly get the price for a particular state, for example, John Deere 5405 price in Punjab.

Besides, you can also get detailed information on John Deere implements and John Deere harvesters on the portal.

Check out the second-hand John Deere tractors and John Deere tractor dealers list on Tractorkarvan. Explore Tractorkarvan for updated details on all John Deere 4WD tractors, such as John Deere 5405 4X4 price, mileage, features, warranty, tractor videos, etc.

Read More

John Deere 5405 Gear Pro Trem IV 4WD Engine

No. Of Cylinders 3
HP Category 63 HP
Engine Type John Deere 3029H, Turbo Charged, Dual Torque Mode
Engine Rated RPM 2100 RPM
Air Filter Dry Type, Dual Element
Cooling System Liquid Cooled
Fuel Type Diesel
Fuel Pump Type High Pressure Common Rail System (HPCR)
Emission Standard Trem IV

John Deere 5405 Gear Pro Trem IV 4WD Transmission

Clutch Dry Dual Clutch, Dry Electro-Hydraulic Clutch(Optional)
Gear Speed 12 Forward + 4 Reverse
Gear Lever Position Side Shift
Brakes Self Adjusting, Self Equalizing, Hydraulically Actuated Oil Immersed Disc Brake
Rear Axle Planetary Gear with Straight Axle

John Deere 5405 Gear Pro Trem IV 4WD Steering

Type Power Steering
Adjustment Tilt Steering

John Deere 5405 Gear Pro Trem IV 4WD Power Take Off

PTO Speed 540 RPM & 540E / RPTO (Optional)

John Deere 5405 Gear Pro Trem IV 4WD Fuel Capacity

Capacity 71 Litres

John Deere 5405 Gear Pro Trem IV 4WD Hydraulics

Lifting capacity 2000 / 2500 kg
3 Point Linkage CAT- II
Hydraulics Controls ADDC / Mechanical Quick Rise and Lower (MQRL) /Electrical Quick Rise and Lower (EQRL)
Remote / Auxillary Valve Dual

John Deere 5405 Gear Pro Trem IV 4WD Tyre Size

Wheel Drive 4WD
Front 9.5 X 24 / 11.2 X 24
Rear 16.9 X 28

John Deere 5405 Gear Pro Trem IV 4WD Dimensions And Weight

Total Weight 2600 kg
Wheel Base 2050 mm
Overall Length 3678 mm
Overall Width 2243 mm

John Deere 5405 Gear Pro Trem IV 4WD Safety Features

ROPS Yes

John Deere 5405 Gear Pro Trem IV 4WD Other Information

Warranty 5 Year/ 5000 Hours
Instrument Cluster Digital, LCD Display ( Hour Meter, Tractor Speed and PTO RPM Monitor)
Driver Seat Improved Comfort Seats
Accessories Ballast Weights, Canopy, Canopy Holder, Drawbar, Wagon Hitch, Tow Hook
Additional Features JD Link, Radiator Screen, Floor Mat, Combination Switch, Wider Platform with Rear Floor Extensions, PowrReverser, LED Headlamps

John Deere 5405 Gear Pro Trem IV 4WD Variants

There are 3 Variants of John Deere 5405 Gear Pro Trem IV 4WD available on Tractorkarvan with complete specification and prices.

TractorKarvan Take On John Deere 5405 Gear Pro Trem IV 4WD

Good Things
  • Engine: Powerful and fuel-efficient engine to conduct tough tasks with optimal fuel consumption.
  • Planetary Gear with Straight Axle: The rear axle is highly durable with less vibration and low noise.
  • JD Link: Provides critical information about the tractor’s health.
  • Feature-rich: Equipped with several valuable features like a radiator screen, floor mat, wider platform and LED headlamps.
Could be Better
  • Could have featured a double clutch for smoother operation of implements.

John Deere 5405 Gear Pro Trem IV 4WD Verdict by TractorKarvan

This John Deere 5405 Gear Pro model is powered by a high-performance Trem IV engine, which provides excellent power and fuel efficiency. It ensures reliable performance and optimal productivity in various agricultural applications, including ploughing, harvesting and crop protection. The 5405 Gear Pro model is a reliable and efficient tractor, suitable for a variety of agricultural applications.

Product review by TractorKarvan

4.8
overall
5
Power & Performance
4.5
Transmission
4.5
PTO & Hydraulics
5
Design & Styling
5
Ergonomics

John Deere 5405 Gear Pro Trem IV 4WD User Reviews

rating star icon 5/5
overall
Based on 8 Reviews
5
Performance
5
Comfort
5
Value for Money
5
Style & Looks

All Reviews

rating rating rating rating rating
ROPS, JD link, digital meter naye feature h
Isme modern features diye gaye hai, jaise ki ROPS, JD link, digital meters aur safety features. isme ROPS hai safety ke liye. seat bhi achhi quality ki hai jo ki achha araam deti hai. is tractor ki kam maintenance se mujhe pareshani nahi hoti aur tractor bina kharab huye chalta hai
3 weeks ago | Durga Shankar Bairagi
Rating Parameters
rating star icon 5/5
Performance
rating star icon 5/5
Comfort
rating star icon 5/5
Value for Money
rating star icon 5/5
Style & Looks
Read More
rating rating rating rating rating
Is model me advanced hydraulic system hai
Isme advanced hydraulic system hai jo mujhe kheti ke alag alag kaamo me madad karta hai. John Deere tractors ki body quality majboot hoti hai jisse unka durability aur long life hoti hai. ye tractor alag alag kheti ke kaamo me istemal ho sakta hai jaise ki sabji, gehu, ya anya faslo ke liye
3 weeks ago | Vishaveer Singh
Rating Parameters
rating star icon 5/5
Performance
rating star icon 5/5
Comfort
rating star icon 5/5
Value for Money
rating star icon 5/5
Style & Looks
Read More
rating rating rating rating rating
High ground clearance khetme suvidha deta h
John Deere ke tractor me fuel efficiency ka dhyan rakha gaya hai jisse mai kam diesel par adhik kaam kar sakta hu. es model me comfortable seat hai jisse lamba kaam karte wakt aaram milta hai. es tractor ki high ground clearance kheti me asaani aur suvidha deta hai kyuki ye neeche cheejo se takrata nahi hai
3 weeks ago | Prithvi Pal
Rating Parameters
rating star icon 5/5
Performance
rating star icon 5/5
Comfort
rating star icon 5/5
Value for Money
rating star icon 5/5
Style & Looks
Read More
rating rating rating rating rating
Jyada load kheechne me bhi asaani rehti hai
Is tractor me shaktishali engine hai jo mujhe zyada taakat aur performance deta hai. isme 4WD technology hai jisse tractor hamesha stable rehta hai kheti karte huye. sath hi jyada load kheechne me bhi asaani rehti hai. isme asaan gear system hai jo chalane me aur gear badalne me mujhe suvidha deta hai
3 weeks ago | Ram Babu
Rating Parameters
rating star icon 5/5
Performance
rating star icon 5/5
Comfort
rating star icon 5/5
Value for Money
rating star icon 5/5
Style & Looks
Read More

Suitable Tyres


John Deere Tractor Dealers & Service Centers

Frequently Asked Questions on John Deere 5405 Gear Pro Trem IV 4WD

1. What is the on-road price of John Deere 5405 4x4 in India 2023?

The on-road John Deere 5405 4X4 price in India 2023 is reasonable.

John Deere 5405 4X4 HP (horsepower) is 63.

John Deere 5405 4X4 weight is 2600 kg.

John Deere 5405 4X4 gear pattern consists of 12 Forward + 4 Reverse gears.

John Deere 5405 4X4 has a fuel tank capacity of 71 litres.

John Deere 5405 4X4 comes with power steering and tilt steering adjustment.

Tractorkarvan provides finance for purchasing John Deere 5405 4X4.

Tractorkarvan is the perfect place to get the updated information on John Deere 5405 4X4.

John Deere 5405 4X4 is available in a 4WD variant.

John Deere 5405 4X4 has a lifting capacity of 2000 to 2500 kg.

John Deere 5405 4X4 is equipped with 3 cylinders.

John Deere 4X4 features a dry dual clutch and optional dry electro-hydraulic clutch.

The front and rear tyre sizes in John Deere 5405 4X4 are 9.5 X 24 / 11.2 X 24 and 16.9 X 28, respectively.
