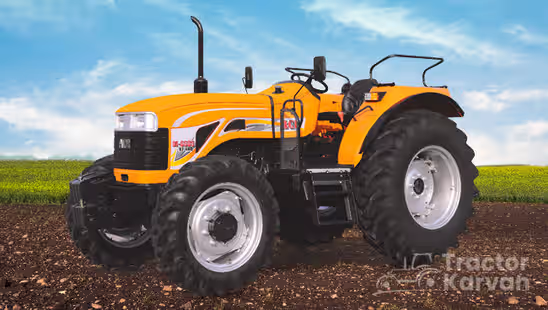

ACE DI 6565 V2 4WD price in India ranges from INR 10 lakhs* to INR 11 lakhs*. ACE DI 6565 V2 4WD HP is 65 horsepower.
ACE tractor brand, based in Faridabad, is a reputable manufacturer of ACE tractors and agricultural-based equipment. The full form of ACE is Action Construction Equipment Limited. The company came into existence in the year 1995, and since then, it has been a leading brand in the Indian tractor industry. The company has more than 20 tractor models in India suitable for various farming and commercial works.
The recently launched ACE DI 6565 V2 4WD is the latest addition to the ACE tractor family. This popular tractor model is known for its brilliant efficiency and superb construction, helping farmers enhance the productivity of their farming operations. Moreover, the ACE DI 6565 V2 4WD price is economical compared to its exceptional features. Let us take a deep analysis of this ACE tractor in the following sections.
ACE DI 6565 V2 4WD Top Specifications
ACE DI 6565 V2 4WD has some outstanding features, which are listed below:
Engine & Performance
- ACE DI 6565 V2 4WD HP (horsepower) is 65 HP. It is one of the best 4WD tractors in the tractors under 70 HP category. The model's higher power output allows it to easily perform a range of challenging farm tasks, such as operating on uneven terrain and pulling large tractor implements.
- It comes with 4 cylinders. The engine type is a 4-stroke direct-injection naturally aspirated diesel engine. The engine-rated RPM of this ACE tractor is 2200. This ERPM is carefully set within an optimal RPM range, ensuring the best fuel economy. The lower-rated RPM during operations helps conserve fuel, resulting in efficient fuel consumption.
- Its engine capacity is 4088 cc. A larger capacity enables the engine to generate higher power output, making it easily handle more demanding operations.
- ACE DI 6565 V2 4WD engine comes with a dry-type air filter. The use of a dry-type air filter offers superior efficiency in filtering the air from impurities, ensuring that only clean air reaches the engine. The engine experiences improved performance and increased longevity by utilising these air filters.
- The presence of a liquid-cooled cooling system helps to keep the engine cool. The cooling system employs a coolant to effectively dissipate excessive heat generated during prolonged operations. This system ensures the engine performs efficiently by maintaining an optimal operating temperature.
- This ACE tractor's bore/stroke ratio is 105/118 mm. The engine displacement is larger due to the longer stroke. It results in generating more torque at lower ERPM.
Transmission
- ACE DI 6565 V2 4WD comes with a Synchromesh with a Carraro gearbox. In a synchromesh gearbox, synchronisers are utilised to synchronise the speeds of the gears before engagement. As a result, it provides smoother and easier gear shifting compared to a constant mesh gearbox.
- It has a double clutch option. The gear changes are easy and quick because the next gear can be pre-selected while the current gear is still engaged. This results in less interruption in power flow, making for a more seamless driving experience.
- The gear speeds of this tractor include 12 forward and 12 reverse gears. The higher number of gear speeds gives the operator a wider range of speeds to choose from, ensuring higher efficiency in varying operating conditions and farm tasks.
- Its forward speed ranges from 1.5 to 30.85 km/h. The reverse speed is 1.27 to 26.22 km/h. These top speeds make the model capable of carrying out haulage work quickly.
Power Take-Off (PTO)
- ACE DI 6565 V2 4WD PTO HP is 52.02 horsepower. With more PTO horsepower, this model can easily pull larger and heavier implements, including Shredder and Pneumatic Precision Planter.
- It has PTO speeds of 540 RPM and 540 ERPM. Due to the economy PTO, the fuel consumption is lower during PTO operations, resulting in lower fuel costs.
Hydraulics
- The lifting capacity of ACE DI 6565 V2 4WD is 2200 kg. Such high lifting capacity ensures efficient handling of heavy loads and operation of heavier hydraulic implements like Disc Harrow and Cutter Mixer Feeder.
- It has Automatic Depth & Draft Control (ADDC) type hydraulic control. The implementation of ADDC in this model enables the effective utilisation of hydraulic implements, leading to maximum productivity on the field. By adjusting the position of tractor implements according to the specific farm task or working condition, ADDC optimises performance and enhances productivity.
Weight & Dimensions
- ACE DI 6565 V2 4WD weight is 2690 kg. Due to the optimal weight, this tractor maintains exceptional traction on all surfaces, resulting in outstanding stability when operating on steep slopes or rugged terrains. This feature ensures reliable performance and enhances the tractor's ability to handle challenging environments.
- It has a longer wheelbase of 2225 mm. The wheelbase of this tractor provides essential support for both the tractor weight and the loads it carries, guaranteeing safe and well-balanced operations.
- The tractor's length and width are 3815 mm and 1950 mm, respectively. Due to these dimensions, this tractor is capable of effectively operating in fields of various sizes, whether they are small or large. This adaptability allows the tractor to accommodate different farming needs and work efficiently across a range of field sizes.
- The tractor's ground clearance is 384 mm. This ground clearance enables efficient operation on all types of fields, ensuring that neither the tractor nor the crops are damaged during different field operations.
- It has a 4.6 m turning radius with brakes. As a result, this model excels at manoeuvring in tight spaces, making it particularly well-suited for relatively smaller farms. Its ability to execute quick turns in confined areas ensures optimal productivity and efficiency in compact farming environments.
Wheel Drive & Tyres
- This model is counted among the leading ACE 4WD tractors in the market. Due to the four-wheel drive capability, this model has a heavy-duty rear axle and can easily perform challenging operations in wetlands.
- The tractor's front tyres size is 9.50 X 24, and the size of the rear tyres is 16.9 X 28. With these big tractor tyres, stable operations on and off the field are ensured as they provide enhanced grip on various terrains.
ACE DI 6565 V2 4WD Key Benefits
This ACE has many additional features, which are discussed below:
- Brakes: ACE DI 6565 V2 4WD has oil-immersed multi-disc brakes for a smooth braking experience on and off the road. These oil-immersed brakes offer significant advantages by facilitating superior heat dissipation, resulting in reduced brake fade.
- Steering: It comes with power steering, offering better handling on uneven terrains. Lesser steering effort is required to turn the tractor in any direction.
- Fuel Capacity: The fuel tank capacity of ACE DI 6565 V2 4WD is 65 litres. This feature ensures that the tractor can operate for longer durations without the need for frequent refuelling, resulting in improved efficiency and productivity on the farm.
- Electrical: The internal system of the tractor is powered by an 88Ah/12V battery and 42 Amp/12V alternator. This battery can effectively power all the tractor’s electrical components for a long period.
ACE DI 6565 V2 4WD Price 2023
ACE DI 6565 V2 4WD price in India ranges from INR 10 lakhs* to INR 11 lakhs*. If you want to purchase this tractor at easy EMIs, then contact Tractorkarvan. However, the users must know that the final on-road cost consists of many external factors, such as RTO charges, road taxes, insurance costs, and many others.
If you want to compare this tractor's specifications and prices with the other tractor models, then use the compare tractor feature on our platform. Some models in the similar HP range are ACE DI 6565, ACE DI 6500 2WD, etc.
