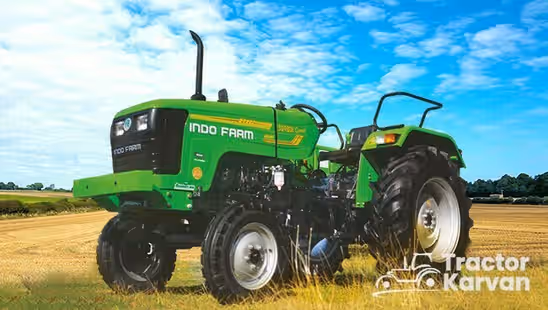

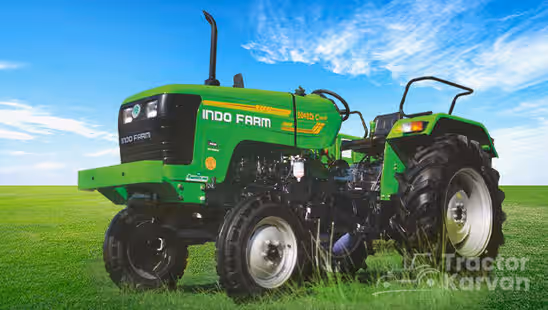

Indo Farm 3055 NV

Brand Indo Farm Tractors
Series 3 Series Tractors
No. Of Cylinder 3
HP Category 55 HP
Gear Box Constant Mesh
Brakes Oil Immersed Multi Disc Brakes / Dry Double Disc Type (Optional)

Key Specifications of Indo Farm 3055 NV

Tractor HP
Tractor HP
55 HP
Wheel Drive
Wheel Drive
2WD
Clutch
Clutch
Dual
Gear Box
Gear Box
Constant Mesh
Steering
Steering
Power Steering
Lifting capacity
Lifting capacity
1800 KG

About Indo Farm 3055 NV

The price of Indo Farm 3055 NV ranges between INR 7.00 lakhs* and INR 9.00 lakhs*. It is equipped with a 55 HP engine.

The Indo Farm 3055 NV is among the popular tractors manufactured by the Indo Farm brand. It is one of the high-performing tractor under 60 HP category. Once you have decided to buy a tractor for your farm, you would want to buy one that will provide you with a powerful performance to take care of various farming and agricultural requirements. Out of many popular tractors available in the market, the Indo Farm 3055 NV is one of the best tractors. It comes with many features and benefits that will allow a better farming experience.

To know more about these features, benefits, and other specifications, including the price and warranty of the Indo Farm 3055 NV tractor, keep reading below.

Indo Farm 3055 NV Tractor Top Specifications

Engine and Performance

  • The engine of the tractor generates a power output of 55 HP, and this is achieved when the engine speed is at maximum RPM of 2200. Lesser engine speed to generate this much power makes it one of the fuel-efficient and powerful tractors for varied heavy farm tasks.
  • The fuel efficiency and power of this tractor is also because of its 3-cylinder four-stroke direct injection engine.
  • The bore to stroke ratio is 105/110 mm. This ratio determines the volume of the engine cylinders and hence the overall power and torque generated. This tractor has a ratio > 1 indicating that it generates greater power and torque to work with implements like ripper and subsoiler.
  • The tractor comes with a water-cooled cooling system. Liquid-cooled technology is used to reduce heat and prolong the engine's lifespan. Longer usage of the engine can lead to increased temperatures, requiring its cooling to safeguard components and optimize performance.
  • The engine comes with a dry-type air filter. This type of air filter ensures that the air entering the engine is clean from dust particles, which ensures optimal performance of the engine. It is easier to maintain and can be easily replaced when required.
  • The tractor also has an inline fuel pump type, which offers a constant flow of fuel to the engine. This system leads to more power stroke per revolution and hence greater torque output needed for demanding farm activities.

Transmission

  • The utilization of a dual clutch makes it easier for the operator to engage and disengage the transmission in this tractor. Essentially, two different clutch plates given in a single lever enables the operation of PTO implements even when the tractor speed is slowed down.
  • The constant mesh gearbox allows the engagement of all gears in this model, which ensures effortless and seamless gear shifting, resulting in reduced wear and tear and an extended lifespan for the gearboxes.
  • The tractor model offers a variety of speed options with 8 forwards + 2 reverse gears allowing it to attain optimal speeds for various farm operations such as ploughing, cultivating, and hauling. This feature contributes to the tractor's improved fuel efficiency by maximizing its performance in different tasks.

Brakes & Steering

  • The tractor comes with oil-immersed multi-disc brakes or dry double-disc type brakes. The brake system is immersed in oil, which helps in better heat dissipation and also offers improved braking. It also decreases the wear and tear of the brakes due to prolonged use.
  • On the other hand, the dry double disc type brakes rely on the friction created between the brake disc while slowing down the tractor. These can be easily replaced and maintained.
  • The tractor comes with power steering, which enhances its control and handling capabilities. The power steering mechanism operates through hydraulics, thus allowing the operator to manoeuvre the tractor with ease and turn it quickly with minimal effort.
  • The tractors have Epicyclic Reduction, which is also called planetary gear reduction. It is used to increase the torque, allow multiple gear ratio using a single mechanism and reduce the speed.

Power Take Off (PTO)

  • The PTO speed of the tractor is 540 RPM which is considered as standard PTO speed. Several tractor implements are compatible with this tractor allowing it to perform regular farm tasks using the required implements. The supported implements are BalerMulcher and more.
  • The tractor is equipped with a Reverse Power Take-Off (PTO) function. This feature aids in dislodging materials trapped in attachments by causing them to move in the opposite direction.

Hydraulics

  • This Indo Farm 3055 NV tractor has a total lifting capacity of 1800 Kg. With increased hydraulic lifting capacity, this tractor can effortlessly lift and transport heavier implements, facilitating efficient field operations. Some compatible implements for this model include the Disc Harrow, Hydraulic Reversible MB Plough, and Cutter Mixer Feeder.
  • The tractor also comes with automatic depth and draft control (ADDC) hydraulics. The hydraulic system functions by automatically adjusting the position of the implement in real-time, thereby maintaining a consistent working depth, and during the complete process, the tractor's traction remains uninterrupted.

Tyre Size and Wheel Drive

  • The Indo Farm 3055 NV is a 2-wheel drive tractor, which indicates that the tractor is simple to operate and is optimal for dryland environments.
  • The tractor tyres comprising front tyres measure 7.50 X 16, and the rear tyres measure 14.9 X 28. The combination of tyres prevents the tractor from slippage and offers necessary traction on the ground or any other surface.

Weight & Dimensions

  • The overall weight of the Indo Farm 3055 tractor is 2260 Kg, and this weight offers the necessary stability and balance to the tractor in any soil conditions or terrain.
  • The tractor comes with an overall length of 3700 mm and an overall width of 1850 mm. It has a ground clearance of 420 mm and a turning radius (with brake) of 3.5 M. This configuration allows the tractor to perform optimally in various conditions with stability and without any damage. This also prevents the tractor from damaging any undercarriage crops while operating on fields.

Indo Farm 3055 NV Additional Features

  • The tractor has a battery of 75 Ah and 12V that forms a powerful electrical system.
  • It has an ergonomic design featuring an adjustable driver seat for extra comfort while driving.
  • The tractor's accessories are a trailer hook, drawbar, fender guard, heavy bumper, and tool kit.
  • It comes with an adjustable driver seat and has an aerodynamic design.

Indo Farm 3055 NV price in India 2023

Along with the features and specifications of the Indo Farm 3055 NV tractor, the price of the tractor is also one of the important factors to consider before buying the tractor for your farm. The overall Indo Farm 3055 NV price in India is between INR 7.00 lakhs* and INR 9.00 lakhs*. You can buy the tractor on the EMI option at Tractorkarvan.

You can also compare tractors, which will help you to choose the best and suitable tractor for your agriculture operations. For instance, you can compare Indo Farm 3055 NV with Indo Farm 3055 NV 4WDIndo Farm 3055 and Indo Farm 3055 4WD.

Why Choose Tractorkarvan for the Indo Farm 3055 NV tractor?

When it's finally time to buy the Indo Farm 3055 NV tractor for your farm, you will need to be sure that the tractor is exactly what you need to fulfil your farming requirements. This can only be known by understanding the features and specifications of the tractor. Some other crucial factors that need to be considered are the tractor's price and warranty.

For the sake of farmers, we have provided an Indo Farm tractor dealer list with location and contact number. You can contact them directly for any tractor-related inquiries.

Tractorkarvan is a trusted and reliable platform that will provide you with all the necessary information regarding the Indo Farm 3035 NV tractor and many other tractors of top brands in India. Also, you can check the latest tractor and upcoming tractor on our website. This accurate information will allow you to make the right choice while buying a tractor.

Read More

Indo Farm 3055 NV Engine

No. Of Cylinder 3
HP Category 55 HP
Engine Type Four Stroke Direct Injection
Engine Rated RPM 2200 RPM
Air Filter Dry Type
Cooling System Liquid Cooled
Fuel Type Diesel
Bore / Stroke 105/110 MM
Fuel Pump Type Inline

Indo Farm 3055 NV Transmission

Clutch Dual
Gear Box Constant Mesh
Gear Speed 8 Forward + 2 Reverse
Brakes Oil Immersed Multi Disc Brakes / Dry Double Disc Type (Optional)
Rear Axle Epicyclic Reduction

Indo Farm 3055 NV Steering

Type Power Steering

Indo Farm 3055 NV Power Take Off

PTO Speed 540 & RPTO

Indo Farm 3055 NV Hydraulics

Lifting Capacity 1800 KG

Indo Farm 3055 NV Tyre Size

Wheel Drive 2WD
Front 7.50 X 16
Rear 14.9 X 28

Indo Farm 3055 NV Dimensions And Weight

Total Weight 2260 kg
Overall Length 3700 mm
Overall Width 1852 mm
Ground Clearance 420 mm
Turning radius with brake 3.5 M

Indo Farm 3055 NV Electrical

Battery 75 Ah, 12 V

Indo Farm 3055 NV Other Information

Driver Seat Adjustable Driver Seat
Accessories Trailer Hook, Draw Bar, Fender Guard, Heavy Bumper, Tool Kit
Additional Features Heavy Duty Front Axle, Aerodynamic Design

TractorKarvan Take On Indo Farm 3055 NV

Good Things
  • Fuel Efficient: A power output of 55 HP generated at 2200 ERPM and its 3-cylinder engine makes it a fuel-efficient tractor.
  • Powerful tractor: With its robust 55 horsepower engine, the tractor is capable of carrying out a wide range of agricultural tasks proficiently.
  • ADDC: The hydraulics control system enables this tractor to automatically adjusts the position of the implement in real time.
Could be Better
  • Synchromesh instead of constant mesh would have been better.
  • More advanced CRDI engine could have been provided better fuel emission and efficiency.

Indo Farm 3055 NV Verdict By TractorKarvan

Indo Farm 3055 NV is among the most powerful and fuel-efficient tractors designed with an aim to deliver on various agricultural tasks. The tractor is known for its reliability and durability. Some of the positive points of this tractor to consider are its 55 HP powerful engine, constant mesh gearbox, presence of ADDC and various others. A person looking for a tractor of 55 HP, with ADDC and 3 cylinders power-packed engine, can easily select this tractor.

Product Review By TractorKarvan

4.1
Overall
4.5
Performance
4
Transmission
4
Hydraulics
4
Design
4
Ergonomics


Indo Farm 3055 NV User Reviews

rating star icon 4.8/5
overall
Based on 4 Reviews
4.8
Performance
4.8
Comfort
4.8
Value for Money
4.8
Style & Looks

All Reviews

rating rating rating rating rating
Diesel ki khapat implements ke sath kam hai
Mere pass Indo Farm ka 55 hp ka tractor hai. Iska engine badhiya hai aur kheti ke liye perfect hai. Mai ispe alag alag tarah ke implements chalata hu aur implements ke sath isme diesel ki khapat kam hai. Mere hisab se isko 5 me se 5 star ki rating milni chahiye.
5 days ago | Mirtunjay Kumar
Rating Parameters
rating star icon 5/5
Performance
rating star icon 5/5
Comfort
rating star icon 5/5
Value for Money
rating star icon 5/5
Style & Looks
Read More
rating rating rating rating rating
Har tareeke ki kheti ke liye perfect hai
Jyada power wale tractors jyada kheti ka samarthan kar sakte hai. iska smooth transmission system alag alag kaamo ke liye sahi gear aur speed pradan karta hai. solid hydraulic system se implements ko uthana, girana asaani se ho jata hai. achhi kheti aur fasal ke liye mai lagbhag sabhi implement ispe chalata hu
2 months ago | Rajendra Meena
Rating Parameters
rating star icon 5/5
Performance
rating star icon 5/5
Comfort
rating star icon 5/5
Value for Money
rating star icon 5/5
Style & Looks
Read More
rating rating rating rating rating
Meri utpadakta mein kafi sudhar hua hai.
Commercial farming mein power ka mahatva hota hai aur is tractor ne baar baar apni kimat sabit ki hai. iske advanced features aur fuel-efficient engine se meri utpadakta mein kafi sudhar hua hai. yahi nahi isko chalane me kharche kam hue hain. yeh tractor ek kifayati sauda hai jisse kheti bhi asan ban jati hai.
4 months ago | Karim Ahmad
Rating Parameters
rating star icon 5/5
Performance
rating star icon 5/5
Comfort
rating star icon 5/5
Value for Money
rating star icon 5/5
Style & Looks
Read More
rating rating rating rating rating
Bhaari upkaran ko bhi acche se khich sakta hai
Mere pass 55 HP ka tractor hai jo 55 HP ka hai. Iska aage ka hissa bahut bhaari hai jo kisi bhi upkaran ko khichne me saksham hai. Mai agar isko mulcher ke sath chalata hu toh ye tractor aage se uthta nahi hai aur bahut asani se kam karta hai.
6 months ago | Surender Kumar
Rating Parameters
rating star icon 4/5
Performance
rating star icon 4/5
Comfort
rating star icon 4/5
Value for Money
rating star icon 4/5
Style & Looks
Read More

Indo Farm 3055 NV Variants


Suitable Implements


Compare To Buy The Right Tractor


Suitable Tyres


Frequently Asked Questions on Indo Farm 3055 NV

1. What is the price of Indo Farm 3055 NV tractor?

The Indo Farm 3055 NV price in India 2023 ranges between INR 7.00 lakhs* and INR 9.00 lakhs*.

The Indo Farm 3055 NV tractor comes with a total weight of 2260 Kg.

The Indo Farm 3055 NV tractor features a dual clutch with constant mesh transmission.

The Indo Farm 3055 NV tractor comes with a PTO speed of 540 & RPTO.

The power output generated by the Indo Farm 3055 NV tractor’s engine is 55 HP.

The Indo Farm 3055 NV tractor’s steering is power steering with epicyclic reduction.
