Brand Kartar Tractors
No. Of Cylinders 4
HP Category 90 HP
Gear Box Synchromesh
Brakes Oil Immersed Disc Brakes

Key Specifications Of Kartar 9036

Tractor HP
Tractor HP
90 HP
Wheel Drive
Wheel Drive
4WD
Clutch
Clutch
Dual
Gear Box
Gear Box
Synchromesh
Steering
Steering
Power Steering
Lifting capacity
Lifting capacity
2500

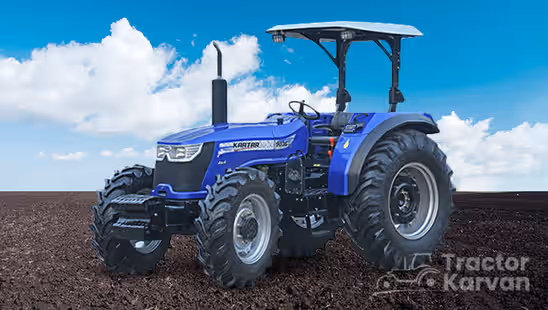

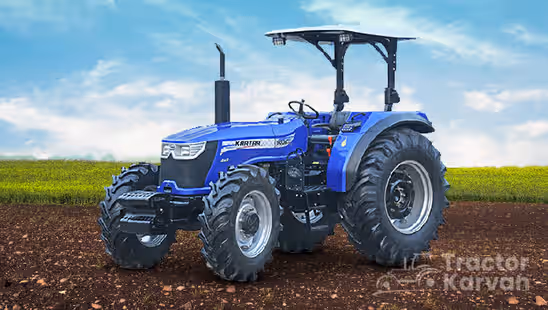

About Kartar 9036

Kartar 9036 tractor price in India 2023 is economical. The Kartar 9036 HP is 90 horsepower, and it has an engine capacity of 4160 cc. Kartar 9036 gear pattern is 12 forward plus 12 reverse gears.

Kartar Tractors is a renowned domestic brand in India. It manufactures a wide range of tractor models with the latest cutting-edge technology. The Kartar 9036 is a renowned tractor models from the company. This Kartar 4WD tractor has a robust built and is suitable for high performance in vigorous and rough terrain. The Kartar 9036 HP makes it one of the powerful tractors in the tractor above 70 HP category. Read sections below to learn more about the Kartar 9036 HP, features, specifications, benefits, and more.

Kartar 9036 Tractor – Top Specifications  

Engine and Performance

  • It is equipped with 90 HP engine, which comes with 4 cylinders and an engine capacity of 4160 cc to generate more power at lower RPMs. That is why at the maximum recommended engine RPM of 2200 it is able to generate higher power output.
  • The given combination of HP, cylinders, and engine capacity in the Kartar 9036 enables it to do heavy-duty agricultural and commercial tasks with ease. Also, it is able to operate heavy tractor implements like Subsoiler and Disc Harrow, among others.
  • It comes with a cooling system that is water-cooled. As a result, the engine does not get overheated even in strenuous work conditions.
  • It has a dry type with clogging sensor air cleaner to prevent impurities from entering the engine’s combustion chamber, thus improving the engine’s work and efficiency.

Transmission

  • It is equipped with a synchromesh gearbox wherein the gears are in mesh with each other with the help of a synchroniser. As a result, the gearbox does not make noise while changing gears.
  • It has the option of dual clutch for transmitting power to the rear axle and the PTO. In this system, there is a single lever that operate both the tractor and the PTO separately with the help of two separate clutch plates. Thus, the transmission is efficient.
  • The gear pattern consists of 12 forward and 12 reverse gears. Due to this, the operator gets wide range of gear speed options to choose from and apply it as per the working requirements. The maximum forward speed is 32.06 km per hour.

Power Take Off (PTO)

  • It has a PTO speed of 540 RPM along with the option of IPTO (independent PTO) and GPTO (Ground speed PTO). As a result, it can operate PTO-driven implements like Post Hole Digger and Thresher, with ease.
  • It can generate standard 540 RPM at the engine rated rpm of 1938 and 540 Economy at the engine rated rpm of 1648. This makes the tractor deliver an excellent mileage while operating PTO implements.

Hydraulics

  • The hydraulics system is automatic depth and draft control (ADDC), that helps in automatically maintaining a constant depth and draft while ploughing or cultivating the fields.
  • It has a lifting capacity of 2500 kg and can be easily attached to Cat-II farm implements. As a result, it can handle heavy hydraulic Kartar implements such as Hydraulic Reversible MB plough and Laser Land Leveler, among others.

Wheel Drive and Tyre Size

  • It is a 4WD tractor, that is, transmission of power from engine takes place in rear two wheels making it suitable for dry field conditions.
  • The front tyres measure 12.4 X 24 and the rear tyres measure 18.4 X 30. The give tractor tyre size provides the tractor excellent traction in any field conditions.

Kartar 9036 Additional Features

  • Electrical System: It comprises battery of 110 Ah, 12V and an alternator of 12V, 42 Amp.
  • Fuel Tank: It has a capacity of 80 litres which is enough for day long work.
  • Brakes: It has oil-immersed disc brakes for effective braking, that build-up less heat and wear and tear of brakes is low.
  • Steering: It comes with power steering, which provides an experience of easy steering, better control, and safe driving.

Kartar 9036 Tractor Price 2023  

The price of a tractor depends upon the features, horsepower (HP), and accessories offered. The Kartar 9036 tractor is a reliable tractor on all the three fronts. As a result, the Kartar 9036 tractor price is affordable and reasonable.

The Kartar 9036 tractor on road price is greater than the ex-showroom price. We have given the on-road price of this tractor on Tractorkarvan. You can also buy this tractor on a tractor loan with easy EMI options on the portal.

You can even use compare tractors feature to compare the specifications and price of Kartar 9036 tractor with other similar HP Kartar tractors such as Kartar 7536 and Kartar 7536 4WD.

Why Choose Tractorkarvan for Kartar 9036 Tractor?  

Tractorkarvan is a one-stop digital platform for tractor of all major brands in India. Here you get detailed information on Kartar 9036 HP, Kartar 9036 tractor price, and more. Besides, you can get this tractor from a Kartar tractor dealer near you. Visit Tractorkarvan now to get the best deal on all models of Kartar tractors, including Kartar 9036.

Read More

Kartar 9036 Engine

No. Of Cylinders 4
HP Category 90 HP
Engine Type Kirloskar 4R 1040 T, 4 Stroke, Turbo Charged
Engine Rated RPM 2200 RPM
Capacity 4160 CC
Air Filter Dry Type with Clogging Sensor
Cooling System Liquid cooled
Fuel Type Diesel

Kartar 9036 Transmission

Clutch Dual
Gear Box Synchromesh
Gear Speed 12 Forward + 12 Reverse
Forward Speed 1.58-32.06 km/h
Brakes Oil Immersed Disc Brakes

Kartar 9036 Steering

Type Power Steering

Kartar 9036 Power Take Off

PTO Speed 540 RPM, IPTO, GPTO, Multispeed
RPM 540 RPM @ 1938 ERPM / 540 E @ 1648 ERPM

Kartar 9036 Fuel Capacity

Capacity 80 Litres

Kartar 9036 Hydraulics

Lifting capacity 2500 kg
3 Point Linkage CAT-II
Hydraulics Controls ADDC

Kartar 9036 Tyre Size

Wheel Drive 4WD
Front 12.4 X 24
Rear 18.4 X 30

Kartar 9036 Electrical

Battery 110 Ah, 12 V
Alternator 12 V, 42 A.

TractorKarvan Take On Kartar 9036

Good Things
  • Power: It is a powerful tractor with 90 HP engine and an engine capacity of 4160 cc.
  • PTO: It comes with all possible PTO speeds like IPTO and GSPTO, thus making it compatible with wide range of PTO implements.
  • Mileage: An engine RPM of 2200 and a PTO speed of 540 RPM at 1648 ERPM ensures that this tractor gives excellent mileage.
Could be Better
  • A double clutch transmission could have ensured more efficient transmission.

Kartar 9036 Verdict

Kartar 9036 is a 4WD tractor and is a very powerful tractor designed to give high performance in varied farm activities like puddling. It has a robust built and can easily operate heavy-to-heavy implements like 17 Cultivator with ease. However, the hydraulics could have been better to operate implements without noise and vibrations.

Product review by TractorKarvan

4.4
overall
4.5
Power & Performance
4.5
Transmission
4.5
PTO & Hydraulics
4
Design & Styling
4.5
Ergonomics
