Brand Indo Farm Tractors
Series 3 Series Tractors
No. Of Cylinders 4
HP Category 90 HP
Gear Box Constant Mesh
Brakes Oil Immersed Multi Disc Brakes


Key Specifications of Indo Farm 3090 DI

Tractor HP
Tractor HP
90 HP
Wheel Drive
Wheel Drive
2WD
Clutch
Clutch
Dual
Gear Box
Gear Box
Constant Mesh
Steering
Steering
Power Steering
Lifting capacity
Lifting capacity
2400 KG

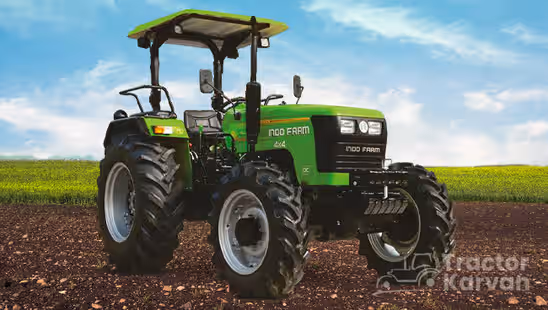

About Indo Farm 3090 DI

The Indo Farm 3090 DI price ranges starts at INR 16.90 lakhs*. The Indo Farm 3090 DI offers a 90 HP power output at an engine speed of 2200 RPM. It has a gear combination of 8 forward and 2 reverse gears.

When you plan to buy a tractor for your farm, you want to go for the one that gives a strong and powerful performance to take care of your various farming needs. The Indo Farm 3090 DI tractor is one such tractor that gives you the best performance. It has many amazing features, like a powerful engine and efficient transmission.

The Indo Farm brand offers its 3090 DI tractor at an affordable price and with unique features. Indo Farm 3090 DI is the latest tractor model launched in the tractor above 70 HP range and in the tractor above 9 Lakhs price range.

Indo Farm 3090 DI Tractor Top Features

There are many top features that this Indo Farm 3090 DI tractor offers. These features allow the tractor to give an efficient performance and take care of your various agricultural requirements. Below we will discuss some of the top features that are offered by this Indo Farm 3090 DI.

Engine

  • The engine of this Indo Farm 3090 DI tractor offers a power output of 90 horsepower when the engine crankshaft rotates at the maximum speed of 2200 RPM. Along with 4-cylinders, this tractor is a powerful fuel-efficient tractor that can perform heavy-duty haulage activities with ease.
  • It has a water-cooled cooling system and runs on diesel. With such a powerful engine, the engine requires constant cooling during working, which is ensured by this cooling system.
  • It also comes with a dry-type air filter, which allows clean and fresh air to enter the engine and filters any unwanted particles that can hamper the overall performance.
  • It comes with a bore/stroke of 105 /118 mm. It indicates the larger displacement in the engine, which contribute to producing more torque output at a lower RPM.

Transmission

  • The transmission offered by this Indo Farm 3090 DI tractor is a dual-clutch transmission for transmitting power to the rear axle and the PTO but separately.
  • The tractor comes equipped with a constant mesh gearbox. It ensures an uninterrupted gear-shifting process as gears are in mesh with each other in this system.
  • It also comes with a gear speed of 8 forward + 2 reverse gears providing wide range of gear speed options for varied activities.

Hydraulics

  • The maximum lifting capacity of the Indo Farm 3090 DI tractor is 2400 Kg. This shows that the tractor can easily life a wide range of heavy implements like Baler and Cutter Mixer Feeder, among others.
  • It has an automatic depth and draft control system along with a rear/ auxiliary valve. This system assists the operator by reducing their efforts in manually adjusting the draft and the depth of the attached implements frequently.

Brakes and Steering

  • The tractor is equipped with oil-immersed multi-disc brakes. The multi-disc plate allows effective braking, and oil offers the necessary lubrication, which prevents the overheating of the brakes.
  • The tractor feature power steering, which allows the operator to put less effort during the steering process and is equipped with epicyclic reduction for easy manoeuvring.

Wheel Drive and Tyre Size

  • The tractor is a two-wheel drive, and the power is delivered to only the rear two tyres in this system. This is a simpler and cost-effective design compared to a four-wheel drive. It is most suitable for dry regions.
  • The front tyres measure 7.50 X 16, and the rear tyres measure 16.9 X 30. These are the ideal tyre sizes that offer the required stability and manoeuvrability to the tractor during the working condition.

Weight and dimensions

  • The total weight of this Indo Farm 3090 DI tractor is 2530 Kg. The weight of the tractor influences the manoeuvrability and stability, allowing it to work with firmness in any agricultural activity.
  • It comes with an overall length of 3990 mm and an overall width of 1980 mm.
  • The ground clearance offered by this Indo Farm 3090 DI tractor is 400 mm, and it also has a turning radius of 4.5 M. This allows it to effectively handle tasks without any issues. It also allows the tractor to work without damaging crops or the under part of the tractor.

Indo Farm 3090 DI Tractor Additional Feature

This Indo Farm 3090 DI also comes with many useful and important additional features that make this tractor one of the best tractors available on the market. You can read about some of these important additional features offered by the Indo Farm 3090 DI tractor below:

  • The Indo Farm 3090 DI tractor features a heavy-duty front axle and an aerodynamic design.
  • The tractor comes with an electrical system that features an 88 Ah, 12 V battery.
  • It has two-wheel driving technology that allows it to give a strong and powerful performance.
  • It comes with many accessories, including a trailer hook, drawbar, fender guard, heavy bumper, and tool kit.
  • The tractor has an adjustable driver seat and ergonomic design that allows ease and convenience of use.
  • The Power Take Off, or PTO speed, of this Indo Farm 3090 DI tractor is 540 RPM. As a result, it can operate normal PTO-driven implements like Rotavator, Power Harrow, and Thresher, among others.

Indo Farm 3090 DI Price in India 2023

The Indo Farm 3090 DI price starts at INR 16.90 lakhs* You can also buy the Indo Farm 3090 DI on a tractor loan facility offered at Tractorkarvan.

To know whether your purchase of Indo Farm 3090 DI is affordable, you can compare tractors of Indo Farm brand with same HP such as Indo Farm 3090 DI 4WDIndo Farm 3075 DI 4WDIndo Farm 3075 DI and others.

Why Choose Tractorkarvan for the Indo Farm 3090 DI tractor?

When you are looking to buy a tractor, you need to be sure that you are making the right choice. Tractorkarvan is a one-stop platform for any information related to tractors of all brands in India, popular tractors, the latest tractors, and so on. Here, you get the information on specifications and prices.

We also provide used Indo Farm tractors suiting your income and farming needs. For your convenience, we have provided the Indo Farm tractor dealers list in your area so that you do not have to go outside your city. You can also watch tractors videos to gain easy insights and information on tractors. Visit Tractorkarvan to know more!

Read More

Indo Farm 3090 DI Engine

No. Of Cylinders 4
HP Category 90 HP
Engine Type Four Stroke Direct Injection
Engine Rated RPM 2200 RPM
Air Filter Dry Type
Cooling System Liquid Cooled
Fuel Type Diesel
Bore / Stroke 105/118 MM mm
Fuel Pump Type Inline

Indo Farm 3090 DI Transmission

Clutch Dual
Gear Box Constant Mesh
Gear Speed 8 Forward + 2 Reverse
Brakes Oil Immersed Multi Disc Brakes
Rear Axle Epicyclic Reduction

Indo Farm 3090 DI Steering

Type Power Steering

Indo Farm 3090 DI Power Take Off

PTO Speed 540 RPM

Indo Farm 3090 DI Hydraulics

Lifting capacity 2400 KG kg
Hydraulics Controls Automatic Depth and Draft Control (ADDC)
Remote / Auxillary Valve Optional

Indo Farm 3090 DI Tyre Size

Wheel Drive 2WD
Front 7.50 X 16
Rear 16.9 X 30

Indo Farm 3090 DI Dimensions And Weight

Total Weight 2530 kg
Overall Length 3990 mm
Overall Width 1980 mm
Ground Clearance 400 mm
Turning radius with brake 4.5 M m

Indo Farm 3090 DI Electrical

Battery 88 Ah, 12 V

Indo Farm 3090 DI Other Information

Driver Seat Adjustable Driver Seat
Accessories Trailer Hook, Draw Bar, Fender Guard, Heavy Bumper, Tool Kit
Additional Features Heavy Duty Front Axle, Aerodynamic Design

Indo Farm 3090 DI Variants

There are 1 Variants of Indo Farm 3090 DI available on Tractorkarvan with complete specification and prices.

TractorKarvan Take On Indo Farm 3090 DI

Good Things
  • Hydraulics: The tractor supports a heavy lifting capacity of 2400 kg and comes with ADDC.
  • Powerful engine: The model comes with a powerful 90 HP engine which can handle agricultural tasks with ease.
  • Feature Rich: It comes with features such as a dry-type air filter, adjustable driver seat, power steering and various others.
Could be Better
  • The presence of partial or full synchromesh gearbox type could have been better.

Indo Farm 3090 DI Verdict by TractorKarvan

Indo Farm 3090 DI comes with a powerful 90 HP 4-cylinder engine. The tractor is aimed to offer power to handle any demanding task with ease. Packed with ADDC and high lifting capacity, the tractor can easily handle the majority of agricultural and commercial tasks with ease. It can also support a variety and wide range of heavy implements. Those looking for a powerful tractor that can handle any task with ease and is compatible with a broad range of implements can select this one.

Product review by TractorKarvan

4.6
overall
4.5
Power & Performance
5
Transmission
4.5
PTO & Hydraulics
4.5
Design & Styling
4.5
Ergonomics

Indo Farm 3090 DI User Reviews

rating star icon 4.3/5
overall
Based on 2 Reviews
4.5
Performance
4.5
Comfort
4
Value for Money
4
Style & Looks

All Reviews

rating rating rating rating rating
Price ke hisab se features behthar ho sakte the
Mujhe is tractor ko chalate huye karib 2 saal ho gaye. Iska engine 90 hp ka hai aur ye Indo Farm company ka hai. Maal dhulai ke kaam ke liye ye accha hai par price ke hisab se iske features thode aur behthar ho sakte the. Mai isko 4 star dunga.
1 month ago | Chandubhai Raychandbhai Patel
Rating Parameters
rating star icon 4/5
Performance
rating star icon 4/5
Comfort
rating star icon 4/5
Value for Money
rating star icon 4/5
Style & Looks
Read More
rating rating rating rating rating
Clutch gearbox aur PTO behthar ho sakta tha
Mere pass Indo Farm ka tractor hai jisko maine 2017 me kharida tha. Mai isko kheti ke liye ismtaal karta hu aur kabhi kabhi aur bhi kaam karta hu. Iska engine toh kaafi powerful hai par clutch gearbox aur PTO aur behthar ho sakta tha. Mai isko 4 star dunga.
2 months ago | Chandan Kumar
Rating Parameters
rating star icon 5/5
Performance
rating star icon 5/5
Comfort
rating star icon 4/5
Value for Money
rating star icon 4/5
Style & Looks
Read More

Suitable Tyres

Frequently Asked Questions on Indo Farm 3090 DI

1. What is the maximum lifting capacity of the Indo Farm 3090 DI tractor?

The Indo Farm 3090 DI tractor comes with a total lifting capacity of 2400 Kg.

The Indo Farm 3090 DI tractor offers a dual-clutch transmission with a constant mesh gearbox.

This Indo Farm 3090 DI tractor comes with a PTO speed of 540 RPM.

This Indo Farm 3090 DI tractor comes with a total weight of 2350 Kg.

You can get the updated information on the Indo Farm 3090 DI tractor at Tractorkarvan.

This Indo Farm 3090 DI tractor offers 90 HP power.

The Indo Farm 3090 DI tractor is available at a price of INR 16.90 lakhs*.
