Brand Swaraj Tractors
Series FE Series Tractors
No. Of Cylinders 3
HP Category 60 - 65 HP
PTO HP 50.6
Gear Box Synchromesh
Brakes Oil Immersed Multi Disc Brakes


Key Specifications of Swaraj 963 FE 4WD

Tractor HP
Tractor HP
60 - 65 HP
Wheel Drive
Wheel Drive
4WD
Clutch
Clutch
Mechanically Actuated Double Clutch
Gear Box
Gear Box
Synchromesh
Steering
Steering
Power Steering
Lifting capacity
Lifting capacity
2200

About Swaraj 963 FE 4WD

Swaraj 963 FE 4WD price in India ranges between INR 11.40 lakhs* to INR 12 lakhs*. Swaraj 963 4x4 HP lies between 60 and 65 horsepower.

Swaraj tractors have developed a massive fanbase among Indian farmers. They are usually appreciated for their powerful engine and advanced features. The Swaraj FE series has come up with a new model that matches the brand's reputation. It is a tractor under 70 HP category, making it a heavy-duty machine that performs exceptionally well even when the terrain is rugged.

It was designed especially for India, where it serves as optimal farm equipment that can withstand harsh weather conditions to complete the day’s work efficiently. There is no limit to what this tractor can do.

Swaraj 963 FE 4x4 price is slightly on the higher side for a small and marginal farmer. Even though it is priced in the tractor above 9 lakhs category, its features and performance make it one of the most popular tractors in India. So, let us find out more about the Swaraj 963 FE 4WD in the upcoming sections.

Swaraj 963 FE 4WD Top Specifications

The Swaraj 963 FE 4WD tractor is an excellent choice for farmers who need a machine that can handle harsh conditions and large loads. Following are some of its top features:

Engine & Performance

  • This tractor features a 4 Stroke, direct-injection diesel engine. Swaraj 963 FE 4x4 has a 3478 CC engine capacity. Swaraj 963 FE 4WD HP ranges between 60-65 giving it plenty of power to tow heavy equipment or carry out heavy-duty tasks. A high horsepower makes it ideal for use in rugged terrains or fields prone to getting muddy. It also allows the operator to cover larger areas in less time.
  • It has an engine-rated RPM of 2100. Operating the tractor within the optimal RPM range reduces overall fuel consumption and operating costs. This engine speed delivers the necessary power to operate implements and perform agricultural operations efficiently.
  • The bore/stroke of Swaraj 963 FE 4x4 is 110 X 122 mm. The bore signifies the diameter of the engine cylinder, while the stroke is the distance covered by the piston from TDC (top dead centre) to BDC (bottom dead centre).
  • The tractor features a dry-type air filter and a liquid-cooled cooling system. This air filter ensures clean air intake and protects the engine from damage caused by contaminants. On the other hand, liquid cooling maintains the engine temperature at optimum levels so as to enhance engine’s longevity and performance.

Transmission

  • The tractor comes with a mechanically actuated double clutch. This clutch uses two friction plates: one for the rear axle transmission and the other for the PTO. It allows quick and smooth gear changes.
  • It is equipped with a synchromesh gearbox. This gearbox allows for quicker and smoother gear changes. Also, it has a long lifespan due to lesser wear and tear on the gears.
  • The tractor has 12 forward and 2 reverse gear speeds. Having more gears means the tractor can perform various tasks efficiently. This is mainly because the operator can make speed adjustments based on the terrain and specific farm application.
  • Standard forward speeds range from 0.90 to 31.70 km/h, while the creep forward speeds range from 0.50 to 31.70 km/h. Standard reverse speeds range from 2.80 to 10.60 km/h, while the creep reverse speeds range from 1.80 to 7.80 km/h.
  • It comes with a side shift gear lever position. This gear lever can be easily accessed and offer a clear view of the front of the tractor.

Hydraulics

  • It has 2200 kg of lift capacity, which supports the tractor to handle heavy tractor implements. Swaraj 963 FE 4x4 is made for heavy-duty farm work. As a result, it is compatible with many implements like Hay Rake and Mulcher.
  • The tractor comes with ADDC hydraulic controls. This system allows automatic control over the draft and depth of the implements. It prevents damage to the implement from rocks and ensures uniform working depth.
  • It features a dual remote/auxiliary valve. Thus, this tractor can easily operate hydraulic implements. It enables efficient and productive operation in the field.

Weight & Dimensions

  • It weighs 3015 kg in total. This weight offers suitable traction to the tractor, making it more stable on varying terrains.
  • The tractor has a 2245 mm wheelbase and 370 mm ground clearance. This wheelbase offers an ideal base of support to make the tractor more stable.
  • The total length is 3735 mm, and the total width is 1930 mm. These dimensions enhance the manoeuvrability of the tractor in various operational conditions. In addition, they make this model more stable and balanced on the field.

Brakes & Steering

  • The tractor is equipped with oil-immersed disc brakes. The braking performance of this model is exceptional, as oil lubricates the brakes constantly.
  • It offers power steering with Differential Cylinder for better control. This steering demands less steering effort and thus is best for long working hours.

Wheel Drive & Tyres

  • It is a four-wheel-drive variant. Thus, it is perfect for rough terrain and puddling application. Also, front lifting does not happen as it comes with a heavier front axle.
  • The rear tyres of Swaraj 963 FE 4WD measure 16.9 X 28. The front tyres of Swaraj 963 FE 4WD measure 9.5 X 24. These tyres support the weight of the tractor and load effectively, ensuring stability and improved shock absorption during operation.

Swaraj 963 FE 4WD Key Benefits

  • The tractor offers a wide range of accessories like tools, bumper, ballast weight, top link, canopy, drawbar and hitch, ensuring you can get more done on your farm without breaking down in harsh conditions.
  • This tractor also has excellent features like power steering and ADDC hydraulics, making it even more versatile.
  • It has an ergonomic design that makes it easy to operate. The tractor has a modern look due to features like a combination switch and digital instrument cluster.
  • This model also has good fuel efficiency, so you do not have to spend too much time at diesel pumps.
  • The tractor is equipped with Oil Immersed Disc Brakes for effective stopping and reduced slippage.
  • It has additional features like an easy-to-use hitch lever, multi-reflector lights, and a single-piece bonnet.

Swaraj 963 FE 4WD Warranty

Swaraj 963 FE 4x4 comes with a warranty period of 2000 hours / 2 years, whichever comes earlier. You can also compare the warranty of Swaraj 963 FE 4WD with other Swaraj models.

Swaraj 963 4x4 Price 2023

The Swaraj 963 4x4 price 2023 in India is reasonable considering the higher HP category. Swaraj 963 FE 4WD price ranges from INR 11.40 lakhs* to INR 12 lakhs* while the EMI starts at Rs. 25,424. It is a fantastic choice for people searching for a high-quality and powerful tractor. You need to keep in mind that the Swaraj 963 FE 4x4 price mentioned on Tractorkarvan is the on-road Swaraj 963 4x4 price 2023 price. Also, different states will have different Swaraj 963 price as it depends on incentives and discounts offered by state governments.

The compare tractor feature of Tractorkarvan can be used to compare different tractor models based on multiple parameters like HP, warranty, transmission, engine, PTO and brakes. It is a highly beneficial feature for those confused between selected models. For example, you have the option to compare the Swaraj 963 FE 4x4 price with other models of the brand that are of similar HP. Such tractor models include Swaraj 963 FE and Swaraj 969 FE. You can also compare the Swaraj 963 4x4 price 2023 with Swaraj 963 4x4 price 2021 and Swaraj 963 4x4 price 2022 to check how the price is evolving.

Why choose Tractorkarvan for Swaraj 963 FE 4WD?

At Tractorkarvan, we pride ourselves on offering our customers the most accurate information possible related to the latest tractors. That's why we are the best platform to rely on when choosing your next tractor. You can get details about upcoming tractors and tractor tyres on our platform. Tractorkarvan also offers a range of suitable tractor implements for all tractor brands in India.

It is known that every farmer is not financially capable of buying a new tractor. Keeping this in mind, we have listed second-hand Swaraj tractors for our users. We also offer a hassle-free financing process to ease your lives. Explore Tractokarvan to learn more about Swaraj tractor dealers!

Read More

Swaraj 963 FE 4WD Engine

No. Of Cylinders 3
HP Category 60 - 65 HP
Engine Type 4 Stroke, Direct injection
Engine Rated RPM 2100 RPM
Capacity cc 3478 CC
Air Filter Dry Type
Cooling System Liquid Cooled
Fuel Type Diesel
Bore / Stroke 110 / 122 mm

Swaraj 963 FE 4WD Transmission

Clutch Mechanically Actuated Double Clutch
Gear Box Synchromesh
Gear Speed 12 Forward + 2 Reverse
Gear Lever Position Side Shift
Forward Speed 0.90 - 31.70 (Standard), 0.50 - 31.70 (Creep) km/h
Reverse Speed 2.80 - 10.60 (Standard), 1.80 - 7.80 (Creep) km/h
Brakes Oil Immersed Multi Disc Brakes
Rear Axle Planetary Axle

Swaraj 963 FE 4WD Steering

Type Power Steering

Swaraj 963 FE 4WD Power Take Off

PTO HP 50.6 HP
PTO Speed 540 & Multispeed Forward & Reverse PTO

Swaraj 963 FE 4WD Hydraulics

Lifting capacity 2200 kg
Hydraulics Controls ADDC
Remote / Auxillary Valve Dual

Swaraj 963 FE 4WD Tyre Size

Wheel Drive 4WD

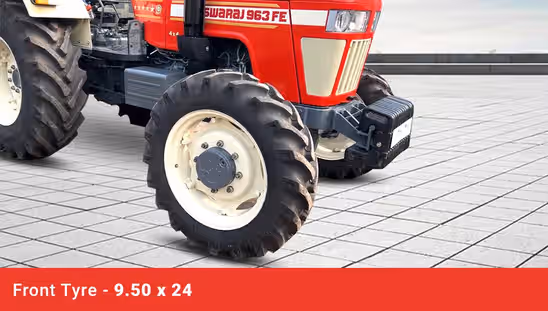

Front 9.50 X 24
Rear 16.90 X 28

Swaraj 963 FE 4WD Dimensions And Weight

Total Weight 3015 kg
Wheel Base 2245 mm
Overall Length 3735 mm
Overall Width 1930 mm
Ground Clearance 370 mm

Swaraj 963 FE 4WD Electrical

Battery 12 V, 100 Ah

Swaraj 963 FE 4WD Safety Features

Neutral Safety Switch Yes

Swaraj 963 FE 4WD Other Information

Warranty 2 Year/ 2000 Hours
Driver Seat Comfortable Seat
Accessories Tools, Bumper, Ballast Weight, Top Link, Canopy, Drawbar, Hitch
Additional Features Easy Hitch Lever, Multi Reflector Lights, Single Piece Bonnet, 400 Hours Service Interval

Swaraj 963 FE 4WD Variants

There are 1 Variants of Swaraj 963 FE 4WD available on Tractorkarvan with complete specification and prices.

TractorKarvan Take On Swaraj 963 FE 4WD

Good Things
  • Engine: Provides high power and torque to complete demanding tasks.
  • IPTO: Allows independent operation of PTO using the independent PTO clutch.
  • Transmission: Synchromesh gearbox for smoother and quicker gear changes.
  • DCV: Company-fitted DCV kit to operate heavy hydraulic equipment.
Could be Better
  • Could have offered more gear speed options for better efficiency and productivity.

Swaraj 963 FE 4WD Verdict by TractorKarvan

Swaraj 963 FE 4WD is a high-performance tractor designed to tackle the most challenging agricultural tasks with precision and efficiency. Swaraj 963 FE 4WD demonstrates outstanding power, ensuring efficient completion of farm tasks. Its four-wheel drive system ensures optimal power distribution to all wheels, maximizing traction and control. The inclusion of a double clutch allows for quick and effortless gear changes. With its powerful engine, smooth transmission and four-wheel drive capability, it has become a trusted choice for farmers seeking a reliable tractor. Swaraj's strong after-sales support makes Swaraj 963 FE 4WD a reliable option for Indian farmers.

Product review by TractorKarvan

4.3
overall
4.5
Power & Performance
4.5
Transmission
4.5
PTO & Hydraulics
4
Design & Styling
4
Ergonomics

Swaraj 963 FE 4WD User Reviews

No Reviews found. Be the first one to review!

Similar Used Tractors

Swaraj 969 FE Second Hand Tractor
969 FE
Swaraj
2022 | Price ₹8.20 Lakh
Ballia, Uttar Pradesh
Get More Details
Swaraj 963 FE Second Hand Tractor
963 FE
Swaraj
2020 | Price ₹5.60 Lakh
Saharanpur, Uttar Pradesh
Get More Details

Similar Brands


Similar To Swaraj 963 FE 4WD

Preet 6549 4WD Tractor
6549 4WD
Preet
65 HP 4WD
Get More Details
Preet 6549 Tractor
6549
Preet
65 HP 2WD
Get More Details

Suitable Implements

Sonalika Paddyvator SLPSMSR-5.5 Puddler Implement
Paddyvator SLPSMSR-5.5
Sonalika
Puddler
40+ HP

Get More Details
Fieldking FKMCP-6 Multi Crop Row Planter Implement
FKMCP-6
Fieldking
Multi Crop Row Planter
60-75 HP

Get More Details
John Deere MB3102H Hydraulic Reversible MB Plough Implement
MB3102H
John Deere
Hydraulic Reversible MB Plough
50+ HP

Get More Details
Sai Agro 4 bottom disc ridger Ridger Implement
4 bottom disc ridger
Sai Agro
Ridger
60-75 HP

Get More Details

Suitable Tyres

2

Yrs
Certified
APOLLO 16.9-28 Krishak Premium Drive Tyre
16.9-28 Krishak Premium Drive
APOLLO Tyres
Rear TyreSize - 16.90 X 28
Get More Details
BKT 16.9-28 Commander (R) Tyre
16.9-28 Commander (R)
BKT Tyres
Rear TyreSize - 16.90 X 28
Get More Details
MRF 16.9-28 SHAKTI XTRA - TT Tyre
16.9-28 Shakti Xtra - TT
MRF Tyres
Rear TyreSize - 16.90 X 28
Get More Details
7

Yrs
Certified
JK Agrigold 16.9-28 Tyre
Agrigold 16.9-28
JK Tyres
Rear TyreSize - 16.90 X 28
Get More Details

Swaraj Tractor Dealers & Service Centers

Neemtala Chowk barsoi, Katihar, Katihar, Bihar - 855102
+91-*******277
Contact Dealer
Molana Abul Kalam Azad Chowk Zero Mile, Araria, Araria, Bihar - 854311
+91-*******908
Contact Dealer
Jahanvi Chowk, Naugachhia, Bhagalpur, Bihar - 853204
+91-*******046
Contact Dealer
Bheria Rahika, Mojheli, Katihar, Katihar, Bihar - 854105
+91-*******205
Contact Dealer
Mp Tiwari Campus, near Congress Office, Supaul, Supaul, Bihar - 852131
+91-*******557
Contact Dealer
Near Police Line Ward No.4, Pipra Road Supaul, Supaul, Supaul, Bihar - 852131
+91-*******578
Contact Dealer

Frequently Asked Questions on Swaraj 963 FE 4WD

1. What is the clutch type of the Swaraj 963 FE 4WD tractor?

Swaraj 963 FE 4WD tractor is equipped with a Mechanically actuated double clutch (independent PTO).

The Swaraj 963 FE offer a high PTO HP to operate heavy implements easily.

The price of this tractor ranges from INR 11.40 lakhs* to INR 12 lakhs* in India.

Tractorkarvan is the best platform to get financing options for purchasing Swaraj 963 FE 4WD.

The Swaraj 963 FE 4WD tractor has a 60 - 65 HP.

The tractor has a 2000 hours / 2 years warranty, whichever comes earlier.

Tractorkarvan is the perfect place to get the latest and updated information about Swaraj 963 FE 4WD.

This model has a fuel tank of 60 litres.

This model comes with Oil Immersed Multi Disc Brakes.

Swaraj 963 tractor offers exceptional mileage on and off the field.
