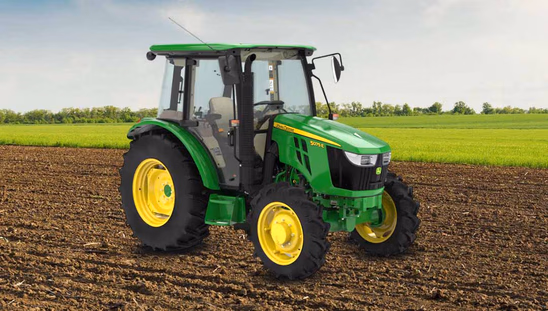

John Deere 5075 Gear Pro 4WD Trem IV AC Cabin

Compare John Deere 5075 Gear Pro 4WD Trem IV AC CabinCompare
Get On Road Price
Brand John Deere Tractors
Series E Series Tractors
No. Of Cylinders 3
HP Category 74 HP
Brakes Self Adjusting, Self Equalizing, Hydraulically Actuated Oil Immersed Disc Brake
Tractor Icon
John Deere Tractors
89+ Used Tractors Available

Key Specifications Of John Deere 5075 Gear Pro 4WD Trem IV AC Cabin

Tractor HP
Tractor HP
74 HP
Wheel Drive
Wheel Drive
4WD
Clutch
Clutch
Dry Dual Clutch, Dry Electro-Hydraulic Clutch(Optional)
Steering
Steering
Power Steering
Lifting Capacity
Lifting Capacity
2500

John Deere 5075 Gear Pro 4WD Trem IV AC Cabin Engine

No. Of Cylinders 3
HP Category 74 HP
Engine Type John Deere 3029H, Turbo Charged, Dual Torque Mode
Engine Rated RPM 2100 RPM
Air Filter Dry Type, Dual Element
Cooling System Liquid Cooled
Fuel Type Diesel
Fuel Pump Type High Pressure Common Rail System (HPCR)
Emission Standard Trem IV

John Deere 5075 Gear Pro 4WD Trem IV AC Cabin Transmission

Clutch Dry Dual Clutch, Dry Electro-Hydraulic Clutch(Optional)
Gear Speed 9F + 3R (Creeper Speed) / 12F + 4R / 12F + 12R
Gear Lever Position Side Shift
Forward Speed 1.9 to 32.6 km/h
Brakes Self Adjusting, Self Equalizing, Hydraulically Actuated Oil Immersed Disc Brake

John Deere 5075 Gear Pro 4WD Trem IV AC Cabin Steering

Type Power Steering
Adjustment Tilt Steering

John Deere 5075 Gear Pro 4WD Trem IV AC Cabin Power Take Off

PTO Speed 540 RPM & 540E / RPTO (Optional)
RPM 540 @ 2100 ERPM, 516 @ 1600 ERPM

John Deere 5075 Gear Pro 4WD Trem IV AC Cabin Fuel Capacity

Capacity 71 Litres

John Deere 5075 Gear Pro 4WD Trem IV AC Cabin Hydraulics

Lifting Capacity 2500 kg
3 Point Linkage CAT- II
Hydraulics Controls ADDC
Remote / Auxillary Valve Dual

John Deere 5075 Gear Pro 4WD Trem IV AC Cabin Tyre Size

Wheel Drive 4WD
Front 12.4 X 24 (8 PR)
Rear 18.4 X 30 (12 PR)

John Deere 5075 Gear Pro 4WD Trem IV AC Cabin Dimensions And Weight

Total Weight 2700 kg
Wheel Base 2050 mm
Overall Length 3678 mm
Overall Width 1935 mm
Ground Clearance 425 mm
Turning radius with brake 3.1 m

John Deere 5075 Gear Pro 4WD Trem IV AC Cabin Electrical

Battery 88 Ah, 12 V
Alternator 60 Amp 12 V

John Deere 5075 Gear Pro 4WD Trem IV AC Cabin Safety Features

ROPS Yes

John Deere 5075 Gear Pro 4WD Trem IV AC Cabin Other Information

Warranty 5 Years / 5000 Hours
Instrument Cluster Digital, LCD Display ( Hour Meter, Tractor Speed and PTO RPM Monitor)
Driver Seat Improved Comfort Seats
Accessories Ballast Weights, Canopy, Canopy Holder, Drawbar, Wagon Hitch, Tow Hook
