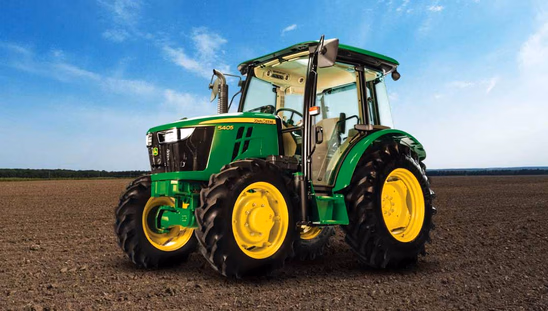

John Deere 5405 Gear Pro Trem IV 4WD AC Cabin

Compare John Deere 5405 Gear Pro Trem IV 4WD AC CabinCompare
Get More Details
Brand John Deere Tractors
Series E Series Tractors
No. Of Cylinders 3
HP Category 63 HP
Brakes Self Adjusting, Self Equalizing, Hydraulically Actuated Oil Immersed Disc Brake
Tractor Icon
John Deere Tractors
75+ Used Tractors Available

Key Specifications Of John Deere 5405 Gear Pro Trem IV 4WD AC Cabin

Tractor HP
Tractor HP
63 HP
Wheel Drive
Wheel Drive
4WD
Clutch
Clutch
Dry Dual Clutch, Dry Electro-Hydraulic Clutch(Optional)
Steering
Steering
Power Steering
Lifting Capacity
Lifting Capacity
2000/2500

John Deere 5405 Gear Pro Trem IV 4WD AC Cabin Engine

No. Of Cylinders 3
HP Category 63 HP
Engine Type John Deere 3029H, Turbo Charged, Dual Torque Mode
Engine Rated RPM 2100 RPM
Air Filter Dry Type, Dual Element
Cooling System Liquid Cooled
Fuel Type Diesel
Fuel Pump Type High Pressure Common Rail System (HPCR)
Emission Standard Trem IV

John Deere 5405 Gear Pro Trem IV 4WD AC Cabin Transmission

Clutch Dry Dual Clutch, Dry Electro-Hydraulic Clutch(Optional)
Gear Speed 12 Forward + 4 Reverse

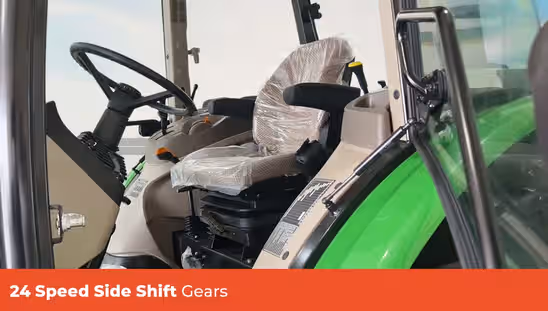

Gear Lever Position Side Shift
Forward Speed 1.9 to 32.6 km/h
Brakes Self Adjusting, Self Equalizing, Hydraulically Actuated Oil Immersed Disc Brake

John Deere 5405 Gear Pro Trem IV 4WD AC Cabin Steering

Type Power Steering
Adjustment Tilt Steering

John Deere 5405 Gear Pro Trem IV 4WD AC Cabin Power Take Off

PTO Speed 540 RPM & 540E / RPTO
RPM 540 @ 1600 ERPM, 516 @ 2100 ERPM

John Deere 5405 Gear Pro Trem IV 4WD AC Cabin Fuel Capacity

Capacity 71 Litres

John Deere 5405 Gear Pro Trem IV 4WD AC Cabin Hydraulics

Lifting Capacity 2000/2500 kg
3 Point Linkage CAT- II
Hydraulics Controls ADDC
Remote / Auxillary Valve Dual

John Deere 5405 Gear Pro Trem IV 4WD AC Cabin Tyre Size

Wheel Drive 4WD
Front 11.2 X 24 (8 PR)
Rear 16.9 X 30 (12 PR)

John Deere 5405 Gear Pro Trem IV 4WD AC Cabin Dimensions And Weight

Total Weight 2600 kg
Wheel Base 2050 mm
Overall Length 3678 mm
Overall Width 2195 mm
Ground Clearance 425 mm
Turning radius with brake 3.1 m

John Deere 5405 Gear Pro Trem IV 4WD AC Cabin Electrical

Battery 88 Ah, 12 V
Alternator 40 Amp 12 V

John Deere 5405 Gear Pro Trem IV 4WD AC Cabin Safety Features

ROPS Yes

John Deere 5405 Gear Pro Trem IV 4WD AC Cabin Other Information

Warranty 5 Years / 5000 Hours

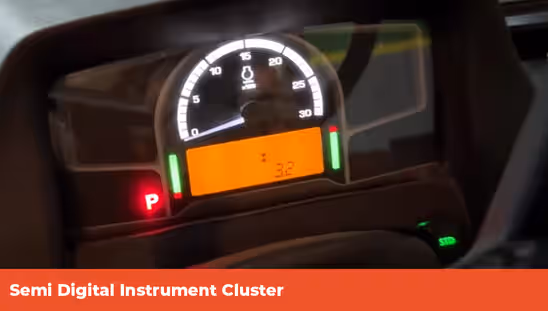

Instrument Cluster Digital, LCD Display ( Hour Meter, Tractor Speed and PTO RPM Monitor)
Driver Seat Improved Comfort Seats
Accessories Ballast Weights, Canopy, Canopy Holder, Drawbar, Wagon Hitch, Tow Hook

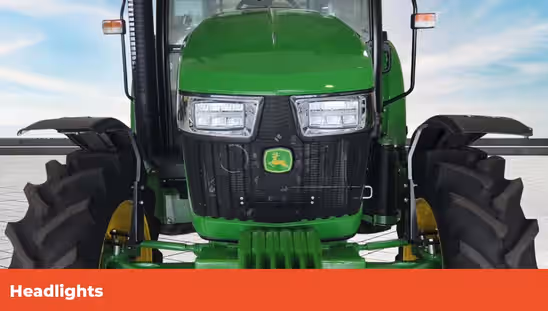

Additional Features JD Link, Radiator Screen, Floor Mat, Combination Switch, Wider Platform with Rear Floor Extensions, PowrReverser, LED Headlamps
