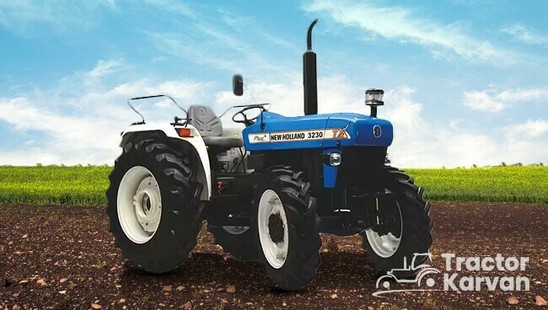

New Holland 3230 TX 4WD

This model has been discontinued
Brand New Holland Tractors
Series TX Series Tractors
No. Of Cylinders 3
HP Category 44 HP
PTO HP 38
Gear Box Constant Mesh
Brakes Oil Immersed Multi Disc Brakes


Key Specifications Of New Holland 3230 TX 4WD

Tractor HP
Tractor HP
44 HP
Wheel Drive
Wheel Drive
4WD
Clutch
Clutch
Single / Double
Gear Box
Gear Box
Constant Mesh
Steering
Steering
Mechanical / Power Steering
Lifting Capacity
Lifting Capacity
1800

About New Holland 3230 TX 4WD

New Holland 3230 TX 4WD price in India used to be in the range of INR 8,40,000* - 8,75,000* (ex-showroom). It was a 44 HP tractor and has been discontinued by the company. The launched upgraded version is New Holland 3230 TX Super 4WD.

What are the Unique Features of New Holland 3230 TX 4WD?

Engine & Transmission

  • The 3-cylinder liquid cooled Simpson engine of this New Holland tractor generated a power of 44 HP.
  • It had an engine capacity of 2500 cc and the maximum torque generated was 161 Nm. It also had an air filter of oil bath type with pre-cleaner.
  • The transmission system consisted of single/ double clutch, constant mesh gearbox with side shift gear lever. It had two gear speed options in pattern of 8F + 2R and 8F + 8R (synchro shuttle).

PTO & Hydraulics

  • It had a PTO power of 38 HP and an EPTRA PTO consisting of 7 PTO speeds, which made it a versatile tractor to operate implements such as rotavator and puddler.
  • The hydraulics consisted of HP hydraulic with multi-sensing point, lift-o-matic, DRC valve and a maximum lifting capacity of 1800 kg.

Brakes & Steering

  • It had oil-immersed multi-disc brakes for effective braking and option of mechanical & power steering for effortless driving.

Tyre Size

  • The front tyres and rear tyres of New Holland 3230 TX 4WD measured 8.3 X 24 and 13.6 X 28, respectively.

Dimension & Fuel Capacity

  • The overall weight and wheelbase of this tractor was 1810 kg and 1920 mm, respectively.
  • It had a minimum ground clearance of 390 mm and a turning radius of 2.8 meter.
  • The fuel tank had a holding capacity of 46 litres.

Warranty

  • The New Holland 3230 TX 4WD tractor came with a warranty period of 6 years.

Other Features

  • It had safety features like neutral safety switch, clutch safety lock, and ROPS.
  • It had a super deluxe seat enhancing drivers’ comfort.
  • It had SOFTEK clutch which enables the clutch operation with minimal effort.
  • It also had company fitted front weight of 55 kg and rear weight of 64 kg.
  • It also came with company fitted adjustable tow-hook.

What is the New Holland 3230 TX 4WD Price in India?

The New Holland 3230 TX 4WD price in India was between INR 8,40,000* and INR 8,75,000* (ex-showroom). This tractor has been discontinued now.

Why Prefer Tractorkarvan to Buy Alternatives of New Holland 3230 TX 4WD?

We are one of the leading online platforms for buying tractors including New Holland 3230 TX 4WD tractor. This tractor has been discontinued, yet you can get every information here. Along with that, you can also check out its upgraded variant New Holland 3230 TX Super 4WD. Moreover, you can visit our used tractors section from where you can buy a second-hand New Holland 3230 TX 4WD tractor available for sale in good condition.

Besides, you can explore Tractorkarvan to watch New Holland 3230 TX 4WD tractor video and to apply for a used tractor loan.

Read More

New Holland 3230 TX 4WD Engine

No. Of Cylinders 3
HP Category 44 HP
Engine Type Simpsons, TIIIA S325
Max Torque 161 Nm
Capacity 2500 CC
Air Filter Oil Bath with Pre Cleaner
Cooling System Liquid Cooled
Fuel Type Diesel

New Holland 3230 TX 4WD Transmission

Clutch Single / Double
Gear Box Constant Mesh
Gear Speed 8 Forward + 2 Reverse / 8 Forward + 8 Reverse Synchro Shuttle
Gear Lever Position Side Shift
Forward Speed 2.50 to 30.81 km/h
Reverse Speed 3.11 to 11.30 km/h
Brakes Oil Immersed Multi Disc Brakes
Rear Axle Straight Axle Planetary Drive

New Holland 3230 TX 4WD Steering

Type Mechanical / Power Steering

New Holland 3230 TX 4WD Power Take Off

PTO HP 38 HP
PTO Speed Eptra PTO – 7 speeds PTO

New Holland 3230 TX 4WD Fuel Capacity

Capacity 46 Litres

New Holland 3230 TX 4WD Hydraulics

Lifting Capacity 1800 kg
Hydraulics Controls HP Hydraulic with Multi sensing Point, Lift O Matic, DRC Valve

New Holland 3230 TX 4WD Tyre Size

Wheel Drive 4WD
Front 8.3 X 24
Rear 13.6 X 28

New Holland 3230 TX 4WD Dimensions And Weight

Total Weight 1810 kg
Wheel Base 1920 mm
Overall Length 3415 mm
Overall Width 1700 mm
Ground Clearance 390 mm

New Holland 3230 TX 4WD Electrical

Battery 75 Ah
Alternator 35 Amp

New Holland 3230 TX 4WD Safety Features

Neutral Safety Switch Yes
ROPS Yes
Clutch Safety Lock Yes

New Holland 3230 TX 4WD Other Information

Warranty 6 Year/ 6000 Hours
Accessories Tools, Bumper, Ballast Weight, Top Link, Canopy, Drawbar, Hitch
Additional Features Mobile Charging Port, Fan Belt Guard

New Holland 3230 TX 4WD Variants

You can find the variants of New Holland 3230 TX 4WD available on Tractorkarvan with complete specification & prices. Total variant's available 4.

TractorKarvan Take On New Holland 3230 TX 4WD

Good Things
  • Low maintenance & fuel-efficient Simpson engine
  • 16 gear speeds with synchro shuttle
  • High PTO power and Seven PTO speeds
  • Heavy-duty straight axle planetary drive
Could be Better
  • A dry type air filter could have provided.

New Holland 3230 TX 4WD Verdict

New Holland 3230 TX 4WD was a powerful tractor with fully loaded features in the 45 HP segment. Its heavy-duty front and rear axle made it ideal for puddling and dryland cultivation. The PTO power, PTO speed, and advanced hydraulics with multi-sensing points enabled the tractor to perform multiple applications with efficiency and ease. Overall, it was a fully loaded, fuel-efficient and versatile tractor. This model is discontinued, so you can opt for its variants.

Product review by TractorKarvan

4.5
overall
4.5
Power & Performance
4.5
Transmission
4.5
PTO & Hydraulics
4.5
Design & Styling
4.5
Ergonomics

New Holland 3230 TX 4WD User Reviews

No Reviews found. Be the first one to review!


Similar Used Tractors

New Holland 3230 NX Second Hand Tractor
3230 NX
New Holland
2022 | Price ₹2.55 Lakh
Madhepura, Bihar
Get More Details
New Holland 3230 NX Second Hand Tractor
3230 NX
New Holland
2022 | Price ₹2.68 Lakh
Prayagraj, Uttar Pradesh
Get More Details
New Holland 3600 TX Super Heritage Edition Second Hand Tractor
3600 TX Super Heritage Edition
New Holland
2019 | Price ₹4.00 Lakh
Indore, Madhya Pradesh
Get More Details
New Holland 3600-2 TX Second Hand Tractor
3600-2 TX
New Holland
2019 | Price ₹2.93 Lakh
Narsinghpur, Madhya Pradesh
Get More Details

Similar Brands


Similar To New Holland 3230 TX 4WD

Farmtrac 50 Powermaxx Tractor
50 Powermaxx
Farmtrac
50 HP 2WD
Get More Details
New Holland 3600-2 TX Super Tractor
3600-2 TX Super
New Holland
49.5 HP 2WD
Get More Details
Trakstar 550 DLX Tractor
550 DLX
Trakstar
50 HP 2WD
Get More Details

Suitable Implements

Shaktiman Side Shift VLS 135 Rotavator Implement
Side Shift VLS 135
Shaktiman
4 Feet Rotavator
40+ HP
Price starts ₹1.30 Lakh
Get More Details
John Deere Standard Duty Rigid RC1009 Cultivator Implement
Standard Duty Rigid RC1009
John Deere
Cultivator
40-45 HP

Get More Details
Landforce Victor 7 FT Rotavator Implement
Victor 7 FT
Landforce
7 Feet Rotavator
35+ HP

Get More Details
Rotoking Mulcher RRM 160 Mulcher Implement
Mulcher RRM 160
Rotoking
Mulcher
45+ HP

Get More Details

Suitable Tyres

BKT 8.30-24 FARM 2000 6 PR Tyres
8.30-24 Farm 2000 6 PR
BKT Tyres
Rear TyresSize - 8.30 X 24
Get More Details
5

Yrs
Certified
BIRLA 13.6-28 Farm Haul Platina Tyres
13.6-28 Farm Haul Platina
BIRLA Tyres
Rear TyresSize - 13.60 X 28
Get More Details
BKT 8.30-24 FARM 2000 8 PR Tyres
8.30-24 Farm 2000 8 PR
BKT Tyres
Rear TyresSize - 8.30 X 24
Get More Details
7

Yrs
Certified
JK Agrigold 13.6-28 Tyres
Agrigold 13.6-28
JK Tyres
Rear TyresSize - 13.60 X 28
Get More Details

New Holland Tractor Dealers & Service Centers

Lalitpur Road, Subhash Pura, Lalitpur, Lalitpur, Uttar Pradesh - 284403
+91-*******121
Contact Dealer
Siya Ramnathaipur Road, Gyanpur, Bhadohi, Uttar Pradesh - 221304
+91-*******518
Contact Dealer
15/ 2 A Kegaon, Near Dhdhpandhari Solapur Highway, Solapur North, Solapur, Maharashtra - 413255
+91-*******555
Contact Dealer
H.No.34-364/F, Bapuji Nagar, Near FCI, Miryalaguda, Nalgonda, Telangana - 508207
+91-*******616
Contact Dealer
N0 1, Prasanna Appartment, Srirangam, Tiruchirappalli, Tamil Nadu - 620005
+91-*******005
Contact Dealer
Opp Rta Office, Siddipet Urban, Siddipet, Telangana - 502103
+91-*******635
Contact Dealer

New Holland Tractor Videos in 2025

Frequently Asked Questions On New Holland 3230 TX 4WD

1. What is the price of New Holland 3230 TX 4WD tractor?

The New Holland 3230 TX 4WD price was between INR 8,40,000* and INR 8,75,000* (ex-showroom).

New Holland 3230 TX 4WD was 44 HP tractor.

The New Holland 3230 TX 4WD tractor offered 10 gear speeds in 8F + 2R pattern. It also had the option of 16 gear speeds in 8F + 8R pattern with synchro shuttle.

The New Holland 3230 TX 4WD tractor came with a warranty period of 6 years.

No, but you can purchase he upgraded versions like New Holland 3230 TX Super 4WD on easy EMIs at Tractorkarvan.
