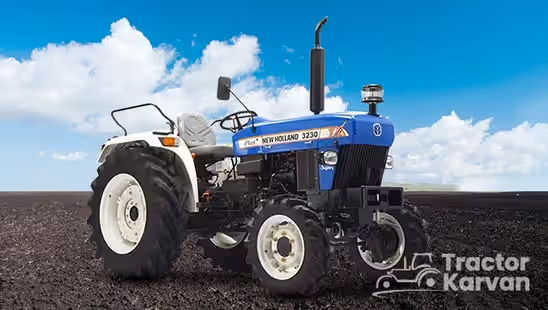

New Holland 3230 TX Super 4WD

Brand New Holland Tractors
Series Super Series Tractors
No. Of Cylinders 3
HP Category 45 HP
PTO HP 41
Gear Box Constant Mesh
Brakes Oil Immersed Multi Disc Brakes


Key Specifications Of New Holland 3230 TX Super 4WD

Tractor HP
Tractor HP
45 HP
Wheel Drive
Wheel Drive
4WD
Clutch
Clutch
Single / Double (IPTO)
Gear Box
Gear Box
Constant Mesh
Steering
Steering
Power Steering
Lifting Capacity
Lifting Capacity
1800

About New Holland 3230 TX Super 4WD

The starting price of the New Holland 3230 TX Super 4WD is Rs. 8,80,000 (Ex-Showroom*) in India. The power output of New Holland 3230 TX Super 4WD is 45 HP.

New Holland 3230 TX Super 4WD Engine & Transmission

New Holland 3230 TX Super 4WD is equipped with a Simpson 325.5 engine offering a power output of 45 HP @ 2200 ERPM.

This tractor offers single and double (IPTO) clutch options. Also, it features a constant mesh gearbox with a side-shift gear lever. The gear speed options include 8 Forward + 8 Reverse and 8 Forward + 2 Reverse gears. The tractor comes with a planetary drive rear axle.

New Holland 3230 TX Super 4WD Brakes & Steering

For reliable braking performance, the tractor provides oil-immersed multi-disc brakes. Power steering makes it easy to manoeuvre on various terrains.

New Holland 3230 TX Super 4WD PTO & Hydraulics

The PTO HP of the tractor is 41. It features Eptraa PTO, which offers seven PTO speeds with standard 540, 540E, GSPTO & RPTO.

This New Holland tractor has a lifting capacity of 1800 kg. With the Lift-O-Matic feature, it becomes easy to lift/lower implements.

New Holland 3230 TX Super 4WD Tyre Sizes

Multiple size options are available for front tyres, including 8 X 18, 8.3 X 24 and 9.5 X 24. The rear tyre size is noted to be 13.6 X 28 or 14.9 X 28.

New Holland 3230 TX Super 4WD Rivals

Kubota MU 4501 4WD and Mahindra Yuvo Tech+ 475 4WD are the main competitors of New Holland 3230 TX Super 4WD.

New Holland 3230 TX Super 4WD Other Key Features

  • New Holland 3230 TX Super 4WD comes with a 6-year transferrable warranty.
  • This New Holland 4WD tractor weighs 2150 kg. The wheelbase is measured to be 2000 mm. Also, the ground clearance of the tractor is 360 mm.
  • It has a 46-litre fuel tank to ensure more work is done without interruptions.
  • Additional features include multisensing with DRC valve, clutch safety lock, neutral safety switch and Paddy Special - Double Metal Face Sealing. Also, optional features include rear weight (32 kg each side), 55 kg FWC and HI-Lug tyre.

What is the New Holland 3230 TX Super 4WD Price in India 2025?

The price of New Holland 3230 TX Super 4WD in India starts from Rs. 8,80,000 (Ex-Showroom*). It is a reasonable price range, keeping in mind the reliable performance of this tractor. You can get all the information about a tractor loan facility through Tractorkarvan to view New Holland 3230 TX Super 4WD on EMI.

Why Choose Tractorkarvan for Key Details about New Holland 3230 TX Super 4WD?

Tractorkarvan has all the genuine information about the New Holland 3230 TX Super 4WD tractor. If you are interested in this tractor, go through its price, specs, warranty, etc, to make a well-informed purchasing decision. Rest assured, you will find updated and genuine details here. You can also compare New Holland 3230 TX Super 4WD with other tractors on our platform to decide if it is perfect for your farm. Contact us now for more information on this New Holland Super series tractor.

Read More

New Holland 3230 TX Super 4WD Engine

No. Of Cylinders 3
HP Category 45 HP
Engine Type TIIIA S325.5, Simpsons, Naturally Aspirated
Engine Rated RPM 2200 RPM
Max Torque 161 Nm
Capacity 2500 CC
Air Filter Oil Bath with Pre Cleaner
Cooling System Liquid Cooled
Fuel Type Diesel

New Holland 3230 TX Super 4WD Transmission

Clutch Single / Double (IPTO)
Gear Box Constant Mesh
Gear Speed 8 Forward + 2 Reverse / 8 Forward + 8 Reverse
Gear Lever Position Side Shift
Brakes Oil Immersed Multi Disc Brakes
Rear Axle Straight Axle Planetary Drive

New Holland 3230 TX Super 4WD Steering

Type Power Steering

New Holland 3230 TX Super 4WD Power Take Off

PTO HP 41 HP
PTO Speed Eptraa PTO (540, 540E, GSPTO & RPTO)

New Holland 3230 TX Super 4WD Fuel Capacity

Capacity 46 Litres

New Holland 3230 TX Super 4WD Hydraulics

Lifting Capacity 1800 kg
Hydraulics Controls HP Hydraulic with Multi sensing Point, Lift O Matic, DRC Valve

New Holland 3230 TX Super 4WD Tyre Size

Wheel Drive 4WD
Front 8 X 18, 8.3 X 24, 9.5 X 24
Rear 13.6 X 28 / 14.9 X 28

New Holland 3230 TX Super 4WD Dimensions And Weight

Total Weight 2150 kg
Wheel Base 2000 mm
Overall Length 3370 mm
Overall Width 1790 mm
Ground Clearance 360 mm

New Holland 3230 TX Super 4WD Electrical

Battery 75 Ah
Alternator 35 Amp

New Holland 3230 TX Super 4WD Safety Features

Neutral Safety Switch Yes
ROPS Yes
Clutch Safety Lock Yes

New Holland 3230 TX Super 4WD Other Information

Warranty 6 Year/ 6000 Hours
Accessories Tipping Trailer Pipe, Neutral Safety Switch, Clutch Safety Lock, Antiglare Rear View Mirror
Additional Features 55kg FWC, Rear weight (32 kg each side)

New Holland 3230 TX Super 4WD Variants

You can find the variants of New Holland 3230 TX Super 4WD available on Tractorkarvan with complete specification & prices. Total variant's available 4.

TractorKarvan Take On New Holland 3230 TX Super 4WD

Good Things
  • Powerful FPT engine.
  • Synchro shuttle transmission.
  • Planetary drive rear axle.
  • Front and rear weights.
  • Paddy Special - Double Metal Face Sealing.
Could be Better
  • Could have provided a single-piece bonnet.

New Holland 3230 TX Super 4WD Verdict

New Holland 3230 TX Super 4WD is a powerful tractor that effortlessly handles various heavy-duty applications. It has a double metal face sealing, ensuring no water enters the axle and PTO during puddling operations. More PTO speeds result in better efficiency with implement operations. However, the tractor could have provided a dry air cleaner for better cleaning efficiency. Overall, New Holland 3230 TX Super 4WD is a feature-rich tractor suitable for puddling in wetlands.

Product review by TractorKarvan

4.5
Overall
5
Power & Performance
4.5
Transmission
4.5
PTO & Hydraulics
4
Design & Styling
4.5
Ergonomics
