Brand New Holland Tractors
Series Super Series Tractors
No. Of Cylinders 3
HP Category 45 HP
PTO HP 41
Gear Box Constant Mesh / Synchro Shuttle
Brakes Oil Immersed Multi Disc Brakes


Key Specifications Of New Holland 3230 TX Super

Tractor HP
Tractor HP
45 HP
Wheel Drive
Wheel Drive
2WD
Clutch
Clutch
Single / Double (IPTO)
Gear Box
Gear Box
Constant Mesh / Synchro Shuttle
Steering
Steering
Power Steering
Lifting capacity
Lifting capacity
1800

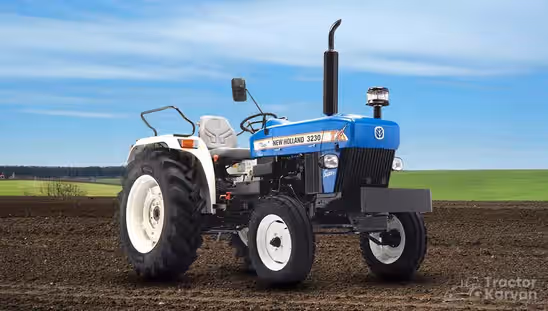

About New Holland 3230 TX Super

The New Holland 3230 tractor price in India ranges from INR 7.60 lakhs* to INR 8 lakhs*. The New Holland 3230 TX Super HP is noted to be 45 horsepower at an engine rated RPM of 2000 RPM. The New Holland 3230 TX Super gear pattern consists of 8 forward and 2 reverse gears.

New Holland tractor 3230 TX Super tractor comes with innovative and advanced technology for better functioning and optimal performance. Among tractors under 50 HP segment in India, the TX Super offers the best value for money. It is a tractors under 9 lakhs rupee range.

The New Holland 3230 TX Super is expertly engineered for utmost power, comfort and stability. This tractor has solid build quality. It is one of the popular tractors among Indian farming community.

Keep reading below to learn more about the New Holland 3230 TX tractor specifications, price, features, etc. You can also check the New Holland tractor 45 hp price list on the website.

New Holland 3230 TX Super Top Specifications

Engine Capacity

  • The New Holland 3230 TX Super has a 45 HP, 3-cylinder engine rated at 2000 RPM. This allows the tractor to operate efficiently while performing agricultural tasks.
  • It has an engine capacity of 2500 cc, and the maximum torque it can deliver is 160.7 Nm. This allows the tractor to easily pull a broad range of implements, such as Disc Plough and Chisel Plough.
  • It is equipped with an oil bath with a pre-cleaner air filter, which traps the impurities in the air and allows clean air to enter the engine.
  • The cooling system is liquid-cooled, which prevents the engine from overheating by removing the excessive heat from the engine.

Transmission

  • It consists of a fully constant mesh AFD transmission system for smooth gear changing. As the gears are meshed during work, it ensures a smoother experience.
  • This tractor comes with a 10-speed gearbox to deliver high-field performance. It offers 8 forward + 2 reverse gears or 8 forward + 8 reverse synchro shuttle gears. This variety in speed allows the tractor to select the optimal speed for work.
  • The tractor's forward speed ranges from 2.50 kmph to 30.81 kmph, and the reverse speed of the tractor ranges from 3.11 kmph to 11.30 kmph.
  • The transmission is attached through a single/dual-clutch option. While the single clutch is easy to maintain, the dual clutch offers independent operability for the tractor and the implement.
  • The side-shift gear level is another key feature of the tractor, which makes it easily accessible to the operator.

PTO HP

  • The New Holland tractor has 6 spline PTO types, which improves the power transfer efficiency from the tractor engine to the PTO implement.
  • The tractor comes with a PTO power of 38 HP, making it compatible with various implements such as Power Harrow and Shredder.
  • It comes with a PTO speed of EPTRA PTO – 7-speed PTO. This involves the standard 540 RPM speed, 540 economy speed, reverse PTO and four speeds for ground speed PTO. This improves the overall versatility of the tractor in handling PTO implements.

Hydraulics

  • It comes with super hydraulics lifting capacity of 1800 kg, allowing it to lift different heavy implements such as Tractor-Trailer- Tipping Type and Disc Harrow.
  • It comes with a multi-sensing point HP-hydraulic with Lift-O-Matic and DRC valve, which contribute to handling the implement, thus reducing the operator's efforts.
  • There is an option for single and double remote/auxiliary valves. This valve improves the lifting of the tractor significantly.

Weight and Dimension

  • New Holland 3230 TX Super weight is 1810 kg and has a wheelbase of 1920 mm. The combination makes the tractor remain firm and balanced while working on farms.
  • The tractor measures 3415mm in length, 1700mm in width. This is an ideal dimension to offer the required traction and stability.
  • The tractor has an impressive ground clearance of 390mm, which reduces the chance of any damage to the undercarriage of the tractor.

New Holland 3230 TX Super Additional Features

  • The brakes are mechanical with real oil-immersed brakes, which offer effective braking and reduce overheating.
  • This tractor comes with power and mechanical steering options for manoeuvring the tractor.
  • The front tyres measure 6.0 x 16 or 6.5 x 16, while the rear tyres measure 13.6 x 28.
  • It comes with a fuel tank capacity of 46-litre enabling it to work for longer hours.

New Holland 3230 TX Super Price

New Holland 3230 price ranges from INR 7.60 lakhs* to INR 8 lakhs*, while the EMI starts at Rs. 14,994, if you are buying it on a tractor loan from Tractorkarvan.

Use the compare tractors feature on Tractorkarvan to compare the features and prices of aNew Holland 3230 TX Super with models like New Holland Excel 4710 4WD, and New Holland 3600-2 Excel.

New Holland 3230 TX Super Warranty

The 3230 TX Super tractor from New Holland comes with a 6000 hours/6-year warranty, whichever is earlier from the purchase date.

Why Choose Tractorkarvan for New Holland 3230 TX Super?

Tractorkarvan is your one-stop destination for getting total information on upcoming tractors and latest tractors. You can also watch tractor videos on Tractorkarvan to gain easy insights and information on tractors.

Tractorkarvan offers a catalogue of all leading used New Holland tractors and New Holland tractor dealers to enable you buy a New Holland tractor near your area and within your budget.

Read More

New Holland 3230 TX Super Engine

No. Of Cylinders 3
HP Category 45 HP
Engine Type TIIIA S325, Simpsons, Naturally Aspirated
Engine Rated RPM 2200 RPM
Max Torque 161 Nm
Capacity 2500 CC
Air Filter Oil Bath with Pre Cleaner
Cooling System Liquid Cooled
Fuel Type Diesel

New Holland 3230 TX Super Transmission

Clutch Single / Double (IPTO)
Gear Box Constant Mesh / Synchro Shuttle
Gear Speed 8 Forward + 2 Reverse / 8 Forward + 8 Reverse
Gear Lever Position Side Shift
Brakes Oil Immersed Multi Disc Brakes
Rear Axle Straight Axle Planetary Drive

New Holland 3230 TX Super Steering

Type Power Steering

New Holland 3230 TX Super Power Take Off

PTO HP 41 HP
PTO Speed Eptraa PTO (540, 540E, GSPTO & RPTO)

New Holland 3230 TX Super Fuel Capacity

Capacity 46 Litres

New Holland 3230 TX Super Hydraulics

Lifting capacity 1800 kg
Hydraulics Controls HP Hydraulic with Multi sensing Point, Lift O Matic, DRC Valve
Remote / Auxillary Valve Single / Dual( Optional)

New Holland 3230 TX Super Tyre Size

Wheel Drive 2WD
Front 6. X 16 / 6. X 16
Rear 13.6 X 28 / 14.9 X 28

New Holland 3230 TX Super Dimensions And Weight

Total Weight 1810 kg
Wheel Base 1920 mm
Overall Length 3415 mm
Overall Width 1700 mm
Ground Clearance 390 mm

New Holland 3230 TX Super Electrical

Battery 75 Ah
Alternator 35 Amp

New Holland 3230 TX Super Safety Features

Neutral Safety Switch Yes
ROPS Yes
Clutch Safety Lock Yes

New Holland 3230 TX Super Other Information

Warranty 6 Year/ 6000 Hours
Accessories Tipping Trailer Pipe, Neutral Safety Switch, Clutch Safety Lock, Antiglare Rear View Mirror
Additional Features 90 kg HD Front Bumper, Rear weight (32 kg each side)

New Holland 3230 TX Super Variants

There are 4 Variants of New Holland 3230 TX Super available on Tractorkarvan with complete specification and prices.

TractorKarvan Take On New Holland 3230 TX Super

Good Things
  • Performance: The tractor offers a balanced performance with a 45 HP, 3-cylinder engine. This allows it to perform regular farming tasks with ease.
  • Hydraulics and PTO: It offers 1800 kg of lifting capacity along with multiple hydraulics controls. It also offers seven different PTO options, thus increasing its versatility.
  • Warranty: It comes with a massive warranty of 6 years or 6000 hours.
Could be Better
  • Instead of an oil bath, a dry-type air filter could have been better.

New Holland 3230 TX Super Verdict

New Holland 3230 TX Super is a tractor that offers both power and performance and ensures that all farming activities are completed without any issues. This makes it an ideal tractor to handle farming operations. It is capable of handling various activities such as tilling, hauling and several others using a wide range of implements. The hydraulics and the PTO of the tractor offers it the versatility that is on par with other tractor in the same range. Further, the warranty of 6 years shows the trust of the brand in the tractor.

Product review by TractorKarvan

4.4
overall
4.5
Power & Performance
4.5
Transmission
4.5
PTO & Hydraulics
4
Design & Styling
4.5
Ergonomics

New Holland 3230 TX Super User Reviews

No Reviews found. Be the first one to review!


Similar Used Tractors

New Holland 3230 NX Second Hand Tractor
3230 NX
New Holland
2021 | Price ₹2.64 Lakh
Mirzapur, Uttar Pradesh
Get More Details
New Holland 3230 NX Second Hand Tractor
3230 NX
New Holland
2023 | Price ₹3.44 Lakh
Sultanpur, Uttar Pradesh
Get More Details
New Holland 3600-2 TX Second Hand Tractor
3600-2 TX
New Holland
2021 | Price ₹5.78 Lakh
Shivpuri, Madhya Pradesh
Get More Details
New Holland 3230 TX Second Hand Tractor
3230 TX
New Holland
2023 | Price ₹3.25 Lakh
Thanjavur, Tamil Nadu
Get More Details

Similar Brands


Similar To New Holland 3230 TX Super

Massey Ferguson 245 DI 46 HP Tractor
245 DI 46 HP
Massey Ferguson
46 HP 2WD
Get More Details
Indo Farm 3055 Tractor
3055
Indo Farm
50 HP 2WD
Get More Details
VST Shakti Zetor 4511 Pro Tractor
Zetor 4511 Pro
VST Shakti
45 HP 2WD
Get More Details
Solis 4415 E Tractor
4415 E
Solis
44 HP 2WD
Get More Details

Suitable Implements

Maschio Gaspardo Virat J 165 Rotavator Implement
Virat J 165
Maschio Gaspardo
5 Feet Rotavator
45-50 HP

Get More Details
Redlands Matrix 1700 Baler Implement
Matrix 1700
Redlands
Baler
40-70 HP

Get More Details
Bull Agro BPP 470 Hydraulic Reversible MB Plough Implement
BPP 470
Bull Agro
Hydraulic Reversible MB Plough
45-50 HP

Get More Details
Vishwakarma 289B Cultivator Implement
289B
Vishwakarma
Cultivator
35+ HP

Get More Details

Suitable Tyres

2

Yrs
Certified
APOLLO 13.6-28 Krishak Premium Drive Tyre
13.6-28 Krishak Premium Drive
APOLLO Tyres
Rear TyreSize - 13.60 X 28
Get More Details
7

Yrs
Certified
JK Shresth 13.6-28 Tyre
Shresth 13.6-28
JK Tyres
Rear TyreSize - 13.60 X 28
Get More Details
BKT 13.6-38 AGRIMAX ELOS Tyre
13.6-38 Agrimax Elos
BKT Tyres
Rear TyreSize - 13.60 X 28
Get More Details
MRF 13.6-28 KRISHI - TT Tyre
13.6-28 Krishi - TT
MRF Tyres
Rear TyreSize - 13.60 X 28
Get More Details

New Holland Tractor Dealers & Service Centers

Bus Stand, Chura Mill, Araria, Araria, Bihar - 854311
+91-*******401
Contact Dealer
Opp. Anchit Sah High School, Belouri, Purnea-Katihar Road, Purnia East, Purnia, Bihar - 854326
+91-*******125
Contact Dealer
Jogbani Road, Ward No.1, Near Hdfc Bank, Araria, Araria, Bihar - 854318
+91-*******266
Contact Dealer
Bheria Rahika Nagar, Parisad ward No.03, Near Bmp-7, Katihar, Katihar, Bihar - 854105
+91-*******193
Contact Dealer
Near Phulaut Chowk, Udakishanganj, Kishanganj, Kishanganj, Bihar - 852220
+91-*******771
Contact Dealer
K Nagar, Banbhag Chowk, Purnia East, Purnia, Bihar - 854301
+91-*******363
Contact Dealer

Frequently Asked Questions On New Holland 3230 TX Super

1. Does New Holland 3230 TX Super come with a warranty?

New Holland 3230 TX Super comes with a warranty of 6 years.

The full tank capacity of the New Holland 3230 TX Super tractor is 46 litres.

New Holland 3230 TX Super has Oil Bath with pre-cleaner type air cleaner and a liquid-cooled cooling system.

Tractorkarvan is the perfect place to get the latest and updated information about New Holland 3230 TX Super.

Tractorkarvan is the best platform to get financing options for purchasing New Holland 3230 TX Super.

The on-road New Holland 3230 TX Super price in India ranges from INR 7.60 lakhs* to INR 8 lakhs*.

New Holland 3230 TX Super HP is 45 horsepower.

New Holland 3230 TX Super can lift 1800 kg.
