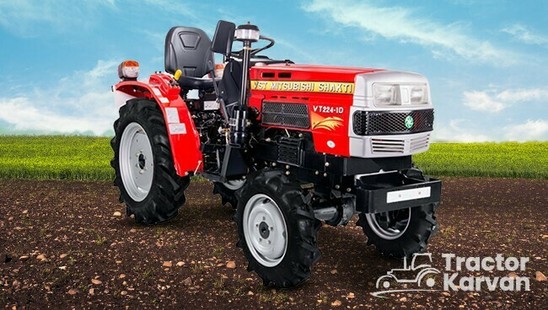

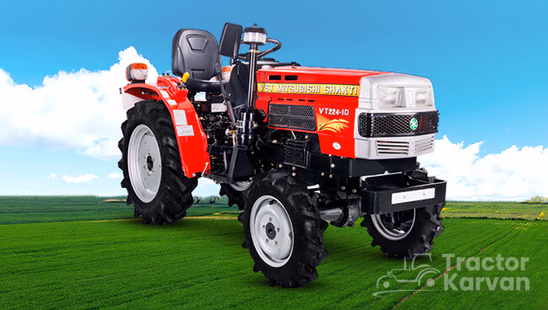

VST Shakti Mitsubishi VT 224 1D 4WD

EMI starts from ₹ 8,366/Month
Brand VST Shakti Tractors
No. Of Cylinder 3
HP Category 22 HP
Gear Box Selective Sliding Gear
Brakes Water Proof Internal Expanding shoe Type Brake

Key Specifications of VST Shakti Mitsubishi VT 224 1D 4WD

Tractor HP
Tractor HP
22 HP
Wheel Drive
Wheel Drive
4WD
Clutch
Clutch
Single
Gear Box
Gear Box
Selective Sliding Gear
Steering
Steering
Mechanical
Lifting capacity
Lifting capacity
500 KG

About VST Shakti Mitsubishi VT 224 1D 4WD

The price of VST SHAKTI Mitsubishi VT 224 1D 4WD ranges between INR 3 lakhs to INR 4 lakhs. It delivers a 22 HP power and has an engine capacity of 980 cc.

VST brand is India’s leading manufacturer of mini tractors for the horticultural and agricultural industries. The Mitsubishi VT 224 1D 4WD tractor from VST Shakti Tractors is the latest tractor Under 30 HP range.

The VST Shakti Mitsubishi VT 224 1D 4WD is one of the economical 4WD tractors that is available  Under 5 Lakhs price range. It comes with multiple features that provide amazing mileage on the field.

VST mini tractors were built in collaboration with Mitsubishi (Mitsubishi Agricultural Machinery) and always manufacture tractors according to the average farmer’s budget. VST Mitsubishi Shakti VT 22 is one of them and one of the most popular offerings from the VST tractor brand. These tractors offer 16.5 to 50 HP power, which helps the farmer to operate heavy-duty easily.

VST VT 224 1D is the 22 HP tractor from the VST India line-up. This tractor is well known for its engine reliability and fuel efficiency.

VST Shakti MITSUBISHI VT 224 1D 4WD Top Specifications

Engine CC

  • Mitsubishi mini tractor is equipped 3-cylinder engine delivering 22 HP power.
  • It has 4-stroke engine, 980 CC engine capacity, and an engine-rated RPM of 3000.
  • It has a 3-stage oil bath type air filter and a water-cooled radiator with a compensatory tank for cooling the engine.
  • The bore-to-stroke ratio of the VST Mitsubishi VT 224 DI 4WD is 70/78 mm.

Transmission

  • With a gearbox of selective sliding gear, the VT 224 1D 4WD tractor has a single clutch.
  • The gear speed of the tractor comprises 6 Forward and 2 Reverse gears giving a maximum forward speed of 20.23 kmph.
  • The gear lever is positioned on the side of operator station for ease of entry and exit.

Brakes & Steering

  • The VST Mitsubishi VT 224 DI 4WD comes with a water-proof internal expanding shoe type brake.
  • It features a mechanical type of steering for changing the direction of tractor easily while farming.

Hydraulics

  • It has Cat – I 3-point linkage, and a double lever auto draft and depth control hydraulics system.
  • The VST Shakti VT 224 1D 4WD has the maximum lifting capacity of 500 kg.

Weight

  • The total weight of the tractor is 740 kg, and the wheelbase length is 1420 mm.
  • The overall length and width of this mini tractor is 2540 mm and 1085 mm respectively.
  • It has a ground clearance of 190 mm and a turning radius 2.4 M.

Tyre Size

VST Shakti MITSUBISHI VT 224 1D 4WD Additional Features

  • It features a ROPS safety bar having a beacon and seat belt.
  • It also comprises 2 hydraulic outputs with a lever-operated single section control that are fitted as standard behind the driver's seat.
  • The fuel tank capacity of the VST Shakti Mitsubishi 221 1D 4WD is 18 litres.
  • The driveline is complemented by drum brakes with a handbrake guaranteeing driver’s safety and easy manoeuvring.
  • The electrical system features a 12 V, 35 Watts battery, and an alternator of 12 V, 40 Amps.

Implements Compatible with VST Shakti MITSUBISHI VT 224 1D 4WD

VST Shakti Mitsubishi 224 1D 4WD has multiple application on farm field and is compatible with many Tractor Implements. These include Disc PloughDisc HarrowTractor TrailerMB Plough, and Boom Sprayer, among others.

VST Shakti MITSUBISHI VT 224 1D 4WD Price

VST mini tractor price 22hp is reasonable keeping the farmer’s budget in mind. It is priced between INR 3 lakhs and INR 4 lakhs. You can even get this small tractor on EMI option at Tractorkarvan.

Also, you can use the Compare Tractor feature available on Tractorkarvan to compare the VST Shakti MITSUBISHI VT 224 1D 4WD specifications with other similar VST Shakti tractors like VST SHAKTI MT 270 VIRAAT 4WDVST Shakti MT 225 Ajai Power Plus, and VST Shakti MT 270 Viraat Agrimaster, among others.

Why choose Tractorkarvan for VST Shakti MITSUBISHI VT 224 1D 4WD?

To get information about the tractor product in terms of its quality, strength, efficiency, and prices, visit Tractorkarvan, where it has the latest and updated information on tractors of all top brands in India. You can also check our listing of popular tractorslatest tractors and upcoming tractors.

Also, you can buy a VST Shakti used tractor within your budget at Tractorkarvan. For sake of farmers, we have provided the VST Shakti tractor dealers list in your area so that you do not have to go outside your city.  Visit Tractorkarvan to know more!

Read More

VST Shakti Mitsubishi VT 224 1D 4WD Engine

No. Of Cylinder 3
HP Category 22 HP
Engine Type V3D, 4 Stroke, Over Head Valve
Engine Rated RPM 3000 RPM
Capacity CC 980 CC
Air Filter 3 Stage Oil Bath Type
Cooling System Liquid Cooled
Fuel Type Diesel
Bore / Stroke 70 / 78 MM

VST Shakti Mitsubishi VT 224 1D 4WD Transmission

Clutch Single
Gear Box Selective Sliding Gear
Gear Speed 6 Forward + 2 Reverse
Forward Speed 1.37 to 20.23 KM/H
Gear Lever Position Side Shift
Brakes Water Proof Internal Expanding shoe Type Brake

VST Shakti Mitsubishi VT 224 1D 4WD Steering

Type Mechanical

VST Shakti Mitsubishi VT 224 1D 4WD Power Take Off

PTO Speed 692, 1020 RPM
RPM 1020 RPM @ 3000 RPM

VST Shakti Mitsubishi VT 224 1D 4WD Fuel Capacity

Capacity 18 Litres

VST Shakti Mitsubishi VT 224 1D 4WD Hydraulics

Lifting Capacity 500 KG
3 point Linkage CAT I
Hydraulic Controls Double lever auto draft / depth control system

VST Shakti Mitsubishi VT 224 1D 4WD Tyre Size

Wheel Drive 4WD
Front 5.00 X 12
Rear 8.00 X 18

VST Shakti Mitsubishi VT 224 1D 4WD Dimensions And Weight

Total Weight 740 kg
Wheel Base 1420 mm
Overall Length 2540 mm
Overall Width 1085 mm
Ground Clearance 190 mm
Turning radius with brake 2.4

VST Shakti Mitsubishi VT 224 1D 4WD Electrical

Alternator 40 Amp, 12 V

VST Shakti Mitsubishi VT 224 1D 4WD Other Information

Driver Seat New Seat For Better Operator Comfort
Accessories Tools, Bumper, Ballast Weight, Top Link, Canopy


VST Shakti Mitsubishi VT 224 1D 4WD User Reviews

rating star icon 4.5/5
overall
Based on 5 Reviews
4.8
Performance
4.8
Comfort
4.2
Value for Money
4.2
Style & Looks

All Reviews

rating rating rating rating rating
Geeli mitti ya keechad me accha kam karta h
Mujhe iss tractor ke saath koyi samasya nahi huyi hai aur mai apni khareed se bahut santusht hu. maine ye tractor isliye khareeda tha kyuki mai ek aisa tractor dhoond raha tha jo shaktishali aur kifayati dono ho. isme 4 wheel drive system hai to geeli mitti ya pani se bhare kheto me bhi accha kaam kar leta hai
4 weeks ago | Mahendr Singh Kushwah
Rating Parameters
rating star icon 5/5
Performance
rating star icon 5/5
Comfort
rating star icon 5/5
Value for Money
rating star icon 5/5
Style & Looks
Read More
rating rating rating rating rating
Ek powerful mini tractor hai
Mere pass VST ka ek mini tractor hai. Iske engine me company ne 3 cylinders diye hai jisse pata chalta hai ki ye kitna powerful hai. Ye 22 hp ke engine ke sath aata hai. Mai iska istmaal mushkil kaam me karta hu jaha ye fasta nahi hai aur asani se kaam pura karta hai.
1 month ago | Ramesh Chandra Verma
Rating Parameters
rating star icon 5/5
Performance
rating star icon 5/5
Comfort
rating star icon 4/5
Value for Money
rating star icon 4/5
Style & Looks
Read More
rating rating rating rating rating
Kam budget wala tractor aur maintenance bhi kam hai
Maine VST Shakti ka ek chhota tractor khairda hai jo basic features ke sath aata hai. Mera budget jada nahi tha isliye maine VST ka ye tractor khiarda. Iske features bht hi basic hai jisse maintenance ka kharcha bhi kaafi kam hai. Mai isko 5 me se 4.5 star dunga.
1 month ago | Nausad Ansari
Rating Parameters
rating star icon 5/5
Performance
rating star icon 5/5
Comfort
rating star icon 4/5
Value for Money
rating star icon 4/5
Style & Looks
Read More
rating rating rating rating rating
Maintenace jada hai aur mileage bhi kam hai
Mai 2019 se VST ka tractor chala raha jo ki 22 hp ke engine ke saath aata hai. Iska maintenace thoda jada hai aur mileage bhi kam hai. Mai isko bagaano aur apne chote kheto me istmaal karta hai. Us hisab se ye ek accha tractor hai. Mai isko 5 me se 4.5 star dunga.
2 months ago | Diwakar Prasad
Rating Parameters
rating star icon 5/5
Performance
rating star icon 5/5
Comfort
rating star icon 4/5
Value for Money
rating star icon 4/5
Style & Looks
Read More

VST Shakti Mitsubishi VT 224 1D 4WD Variants


Suitable Implements


Suitable Tyres


VST Shakti Tractor Dealers & Service Centers


Frequently Asked Questions on VST Shakti Mitsubishi VT 224 1D 4WD

1. What is the HP of the VT 224 1D 4WD tractor?

The tractor comes with 22 HP power for horticultural and other farming activities.

The fuel tank capacity of this mini tractor is 18 litres.

The VST Shakti Mitsubishi VT 224 1D 4WD tractor has waterproof internal expanding shoes.

The VT 224 1D 4WD mini tractor comes with a wheelbase of 1420 mm.

The VT 224 1D 4WD mini tractor has the maximum lifting capacity of 500 kg.
