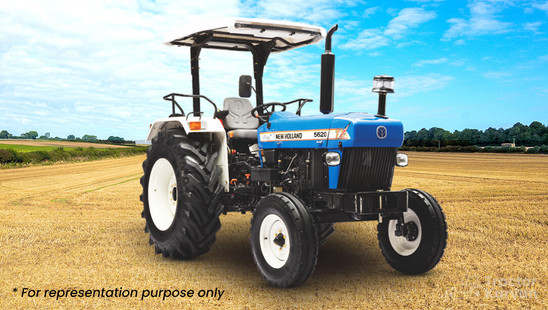

New Holland 5620 TX Plus Trem IV

Brand New Holland Tractors
HP Category 65 HP

Key Specifications of New Holland 5620 TX Plus Trem IV

Tractor HP
Tractor HP
65 HP
Wheel Drive
Wheel Drive
2WD
Clutch
Clutch
Double Clutch with Independent PTO Lever
Steering
Steering
Power Steering
Lifting capacity
Lifting capacity
1700 Kg / 2000 Kg with Assit Ram

About New Holland 5620 TX Plus Trem IV

New Holland 5620 TX Plus Trem IV price is cost-effective. It is a 65 HP tractor with BS-IV compatible 4-stroke high pressure common rail engine type.

New Holland is a globally renowned multinational tractor manufacturing company. It is known for producing tractors that are based on advanced technology. The tractors of New Holland are innovative, feature-rich, sturdy, and fuel-efficient. They are designed to give high performance on the field.

The latest tractor from the company is New Holland 5620 TX Plus Trem IV. The tractor is compatible with Bharat Stage Trem IV emission norms and hence environment friendly. It is equipped with FPT pressure common rail engine and comes with bolder and modern looks. The 5620 TX Plus Trem IV tractor has lifting capacity of up to 2000 kg and features gear speed of 15 gears comprising 12 forward and 3 reverse gears.

Before, we discuss the key specifications, warranty, benefits, and 5620 TX Plus Trem IV price in detail, let us understand the Trem Stage IV emission norms on which the tractor’s engine is based.

What is TREM Stage IV Emission Norms?

Tractor manufacturing companies are now focusing more on producing tractors equipped with environment-friendly engines. Almost all the new tractors manufactured are in line with Trem Stage IV or BS-IV (Bharat Stage – IV) emission norms. The new tractors are fitted with common rail direct engines (CRDI) which emit less pollutants. The Trem IV emission parameters are a standard for agriculture sector vehicles. These are different from CEV emission norms which are applicable for construction equipment vehicles.

The Trem IV is applicable for tractors with above 50 HP engine. In case of tractors with below 50 HP engine, the Trem IIIA emission norms are applicable.

New Holland 5620 TX Plus Trem IV Top Specifications

Engine capacity

The name of the engine model is FPT 12 Valve HPCR TREM Stage – IV, which is compatible with BS-IV emission norms. The engine type used is 4-stroke high pressure common rail and the maximum power offered is 65 HP at the engine rated RPM of 2300. It is one of the powerful tractors under 70 HP. Besides, it has multiple engine modes, viz., Power, Eco, and Eco+ for better fuel efficiency. There are 12 valves in the engine for higher performance.

Transmission

It has an efficient transmission system comprising double clutch with independent clutch lever. The gear box comprises of 15 gear speeds in two variants, viz., 12F + 3R UG and 12F + 3R Creepers.

Hydraulics

Equipped with a semantic 24 hydraulic lift system, the 5620 TX Plus Trem IV can lift up to 1700 kg and 2000 kg with Assist Ram technology.

Brakes & Steering

The tractor features an oil-immersed multi-disc brakes for effective braking. It also features power steering for changing the direction of travel.

PTO Speed

The New Holland 5620 TX Plus Trem IV has multi-speed PTO comprising of 540 RPM at the engine rated RPM of 1600, Reverse PTO (RPTO), and Ground Synchronizing PTO (GSPTO). As a result, the tractor can easily operate with any farm implement and can perform any farm task with ease.

Tyre Size

The tractor tyres of this 2WD tractor are big and sturdy. The front tyres measure 6.5 X 20/ 7.5 X 16, whereas the rear tyres measure 16.9 X 30. The bigger rear tyre ensures better stability while doing farming.

Weight and Dimension

The overall weight of the 5620 TX Plus Trem IV is 2600 kg, and it has a wheelbase of 2065 mm. It has a very high ground clearance of 500 mm ensuring farm operation without any hurdle.

New Holland 5620 TX Plus Trem IV Additional Features

This heavy-duty strong tractor comes with several additional features, which are of great benefit to farmers. some of the features are:

  • It has fuel tank capacity of 70 litres.
  • It has a heavy-duty hub reduction rear axle.
  • It comes with 55 kg front weight carrier.
  • It has self-adjusting engine and features transmission oil cooler.
  • It comes with enhanced ergonomics and comfort.
  • It also features Rollover Protection System (ROPS) and canopy.

New Holland 5620 TX Plus Trem IV Benefits

The 5620 TX Plus Trem IV comes with several benefits that are of great value to farmers. Some of the benefits are:

  • Multiple modes of engine with 12 valve gives better fuel efficiency and performance.
  • It comes with engine protection system ensuring durability of engine.
  • Long service interval of 600 hours means better maintenance at low cost.
  • The 5620 TX Plus give up to 8 HP more PTO power ensuring high-performance with even heavier implements.
  • The enhance ergonomics give bolder and modern looks.
  • Bigger rear tyres ensure stable and balanced tractor while performing any farming task.
  • It has many additional features for extra comfort to the operator.

Implements Compatible with New Holland 5620 TX Plus Trem IV

The 5620 TX Plus Trem IV is a heavy-duty multi-purpose tractor that can be attached to any farm implement to operate it with ease. Some of the implements are Hydraulic Reversible MB PloughPower HarrowBoom Sprayer, and Seed Drill, among others.

New Holland 5620 TX Plus Trem IV Warranty

The 5620 TX Plus Trem IV comes with warranty period of 6 years or 6000 hours, whichever is earlier from the date of purchase.

New Holland 5620 TX Plus Trem IV Price in India 2023

The price of a tractor is an outcome of many factors including its specification, features, model, and brand. The New Holland 5620 TX Plus is a feature-rich environment friendly tractor; hence the New Holland 5620 TX Plus price is reasonably high. The price given on Tractorkarvan is an on-road price, which differs from state to state. The 5620 TX Plus price in India 2023 is in the above 9 lakh category. In case you cannot afford this pricey tractor, then you can avail the loan facility available at Tractorkarvan and pay it in easy EMIs.

Besides, you can know the affordability of the tractor by comparing it with under 70 HP New Holland tractors such as 5620 TX Plus5620 TX Plus 4WDExcel 6510 4WD, and 6500 Turbo Super 4WD, among others.

Tractorkarvan for New Holland 5620 TX Plus Trem IV

Tractorkarvan is a one-stop marketplace for buying and selling tractors and their accessories. You can visit it to buy any tractor model of all top brands. Besides, you can also buy all the popular tractors, latest tractors, and upcoming tractors on the website. To top it, here you can get detailed information on any tractor with complete specifications, prices, images, customer review, etc.

We also provide a loan facility enabling you to buy any tractor, including New Holland 5620 TX Plus, on easy EMI options. We also have a separate section on New Holland second-hand tractor and New Holland tractor dealers. By visiting these pages, you can buy an affordable tractor per your need and budget in your locality. Visit Tractorkarvan today to get the best deal on New Holland 5620 TX Plus Trem IV tractor.

Read More

New Holland 5620 TX Plus Trem IV Engine

HP Category 65 HP
Engine Type 4 Stroke, CRDI
Engine Rated RPM 2300 RPM

New Holland 5620 TX Plus Trem IV Transmission

Clutch Double Clutch with Independent PTO Lever
Gear Speed 12 Forward + 3 Reverse Creeper, 12 Forward + 3 Reverse UG
Rear Axle Heavy Duty Hub Reduction

New Holland 5620 TX Plus Trem IV Steering

Type Power Steering

New Holland 5620 TX Plus Trem IV Power Take Off

PTO Speed 540 RPM @1800 ERPM & RPTO/GSPTO

New Holland 5620 TX Plus Trem IV Fuel Capacity

Capacity 70 Litres

New Holland 5620 TX Plus Trem IV Hydraulics

Lifting Capacity 1700 Kg / 2000 Kg with Assit Ram
Hydraulic Controls Sensomatic 24 Hydraulic

New Holland 5620 TX Plus Trem IV Tyre Size

Wheel Drive 2WD
Front 6.50 X 20 / 7.50 X 16
Rear 16.9 X 30

New Holland 5620 TX Plus Trem IV Dimensions And Weight

Total Weight 2600 kg
Wheel Base 2065 mm
Ground Clearance 500 mm

New Holland 5620 TX Plus Trem IV Electrical

Battery 100 Ah
Alternator 55 Amp

New Holland 5620 TX Plus Trem IV Other Information

Additional Features Company fitted ROPS & Canopy


New Holland 5620 TX Plus Trem IV User Reviews

No Reviews found. Be the first one to review!


Suitable Implements


Compare To Buy The Right Tractor


Suitable Tyres


New Holland Tractor Dealers & Service Centers


New Holland Tractor Videos in 2023

Frequently Asked Questions on New Holland 5620 TX Plus Trem IV

1. What is the power output offered by the engine of New Holland 5620 TX Plus?

The power output offered by the engine of this tractor is 65 HP.

The 5620 TX Plus Trem IV price 2023 ranges from INR 10 lakhs to INR 12.50 lakhs.

The overall weight of the tractor is 2600 kg.

The maximum lifting capacity of 5620 TX Plus is 2000 kg with Assist Ram technology.

You can buy 5620 TX Plus Trem IV on easy EMIs at Tractorkarvan.

You can get the updated information on New Holland 5620 TX Plus at Tractorkarvan.
